Westerschelde 27 September 2018 |
|
Name |

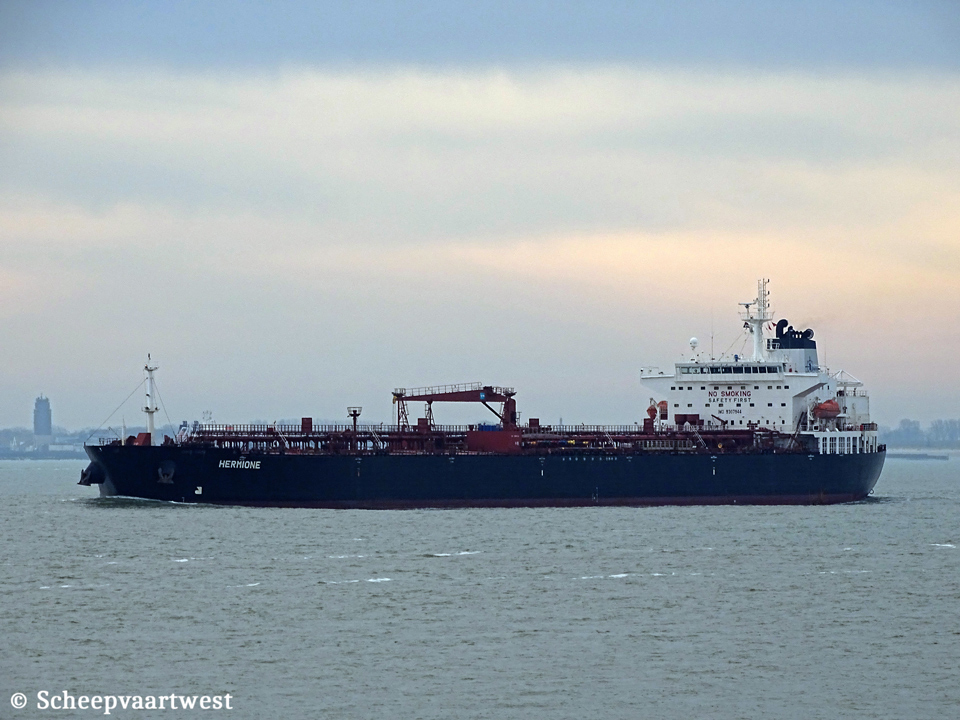

HERMIONE |
|
Type |
Crude oil tanker |
|
IMO-number |
9307944 |
|
Call sign |
A8OF4 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
42.010 t Suez: 44.162,54 t |
|
DWT |
Summer: 73.981 t |
|
NT |
22.444 t Panama: 34.705 t Suez: 39.750,34 t |
|
Displacement |
89.381 t |
|
Length |
228,60 m overall 219,70 m between perpendiculars |
|
Breadth |
32,26 m moulded 23,57 m extreme |
|
Draught |
Summer: 14,52 m |
|
Keel to mast end |
48,05 m |
|
Freeboard |
6.315 mm |
|
Depth |
20,80 m moulded |
|
Speed |
Max: 15,0 knots |
|
Built |
2008 |
|
Keel laid |
20/12/2004 |
|
Launch date |
21/05/2008 |
|
Date of completion |
15/08/2008 |
|
Builder |
New Century Shipbuilding Co., Ltd. Xingang Port Jingjiang, 214514 China |
|
Yard number |
NCS0307331 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 5S60MC-C7. - 5 cylinder 600 x 2.400 mm combustion engine 11.300 kW / 15.370 bhp at 105,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: Wärtsilä CME Zhenjiang Propeller Co.,Ltd. |
|
Boilers |
2x Auxiliary oil fired boiler Mission TM OL 20 T/H - 18,0 MPa 1x Composite boiler Mission OC - 10 MPa Manufacturer: Aalborg Industries Ltd. |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: Taiyo Electric Co. Ltd. |
|
Emergency generator |
1x Diesel generatorset 150 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
83.291,76 m³ |
|
Number of slop tank |
2 |
|
Number of pumps |
3x Cargo pumps each 2.300 m³/h |
|
Tank capacities |
Lube oil: 140,80 m³ Fresh water: 693,20 m³ Ballast: 25.334,40 m³ Diesel oil: 32480 m³ Fuel oil: 2.089,80 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,5 t 1x Provision crane - SWL 5,0 t Manufacturer: JiangYin Xingcheng Marine Machinery Factory 1x Hose handling crane - SWL 15,0 t Manufacturer: TTS Hydralift Co.Bohai |
|
Crew |
20 |
|
Manager |
TB Marine Shipmanagement GmbH & Co. KG Hamburg Germany |
|
Registered owner |
San William Sg GmbH & Co KG |
|
Renamed |
2019 Amer Portugal, Madeira - Call sign: CQAP4 Manager: Bernhard Schulte Shipmanagament (UK) Ltd. Reg. owner: Sunpower Shipping Ltd. - Portugal |
|
Latest data adjustment |
24 August 2021 |
