| Antwerpen 14 May 2012 |
|
Name |

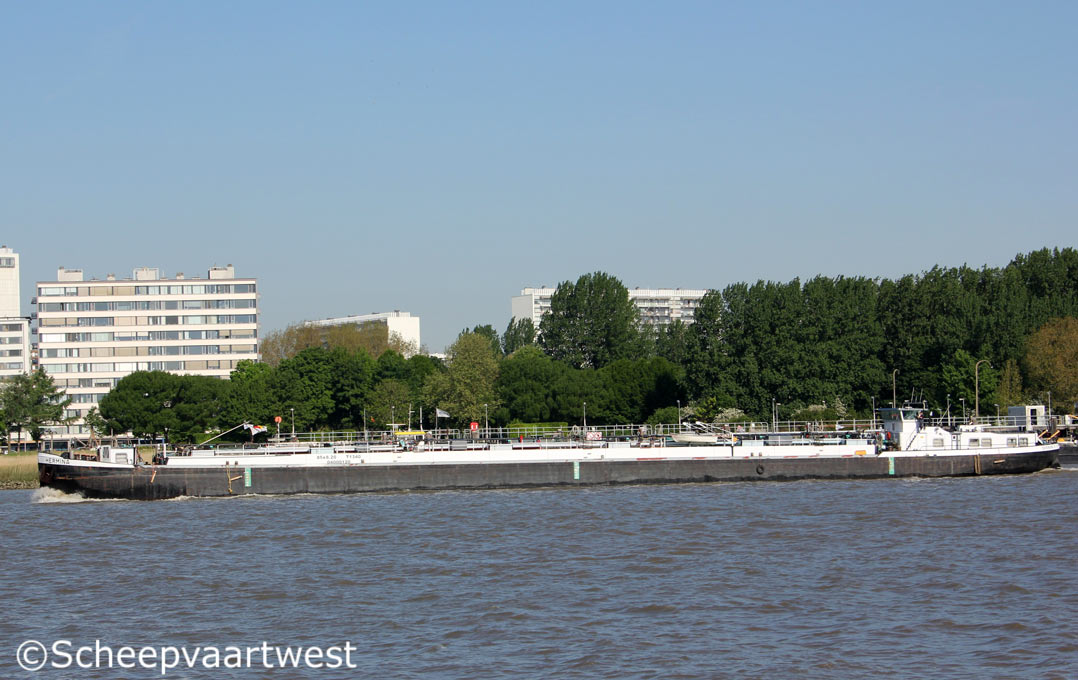

HERMINA |
|
Previous names |
1963 Rita - Niederrheinische Handels & Transport GmbH, Kaarst - Germany |
|
Type |
Inland tanker |
|
ENI-number |
04000120 |
|
Flag |
Germany |
|
Port of registry |
Duisburg |
|
Tonnage |
1.339,635 t |
|
Length |
84,98 m |
|
Breadth |
8,20 m |
|
Draught |
2,71 m |
|
Depth |
7,70 m moulded |
|
Built |
1962 12.1965 Ship lengthened 06.1972 Ship lengthened |
|
Keel laid |
18.05.1962 |
|
Launch date |
22.10.1962 |
|
Date of completion |
12.11.1962 |
|
Builder |
Gutehoffnungshütte Sterkrade AG Rheinwerft Walsum |
|
Yard number |
999 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S12 RM PTA - 4 stroke - 880 kW at 1.600 rpm Year of manufacture: 2002 Manufacturer: Mitsubishi Heavy Industries, Ltd. |
|
Previous main engine |
1x Deutz RV 8 M 545- 660 hp / 485 kW |
|
Propeller |
1x Solid propeller - aft 404 rpm |
|
Electric installations |
1x Plant 380/220 V - 30 kVA 1x Plant 24/220 V - 20 kW 1x Plant 380/220 V - 41 kW |
|
Generators |
1x Generator - 30 kVA 1x Generator - 20 kW 1x Generator - 41 KW |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar |
|
Bow thruster |
1x De Gerlien BV - 235 kW, forward |
|
Cargo capacity |
1.780 m³ |
|
Number of cargo tanks |
12 |
|
Fuel capacity |
20 m³ |
|
Owner |
B. Rennings |
|
Registered owner |
AGL Service- und Beteiligungsgesellschaft mbH |
