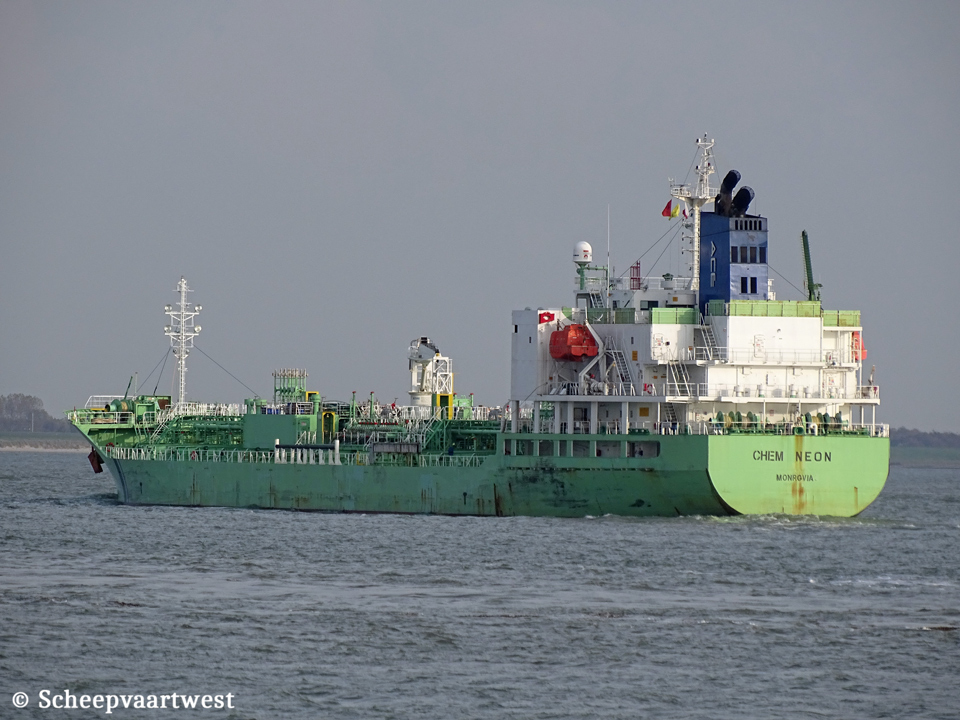

Westerschelde 19 October 2020 |
|
Name |
CHEM NEON |
|
Previous names |
03/2018 - 01/2020 BW Neon |
|
Type |
Chemical / Products tanker |
|
IMO-number |
9815264 |
|
Call sign |
D5TK7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
03/2018 - 01/2020 Isle of Man, Douglas - Call sign: MCKZ2 |
|
GRT |
11.918 t |
|
DWT |
19.972 t |
|
NRT |
6.268 t |
|
Length |
146,50 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Summer: 9,73 m |
|
Moulded L x B x D |
138,00 x 24,00 x 13,10 m |
|
Registered L x B x D |
138,44 x 24,00 x 13,10 m |
|
Keel to mast end |
38,57 m |
|
Freeboard |
Summer: 3.404 mm |
|
Depth |
13,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2018 |
|
Keel laid |
21/12/2015 |
|
Launch date |
04/12/2017 |
|
Date of completion |
23/03/2018 |
|
Builder |
Fukuoka Ship Builders Co., Limited Fukuoka Japan |
|
Yard number |
F-1317 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S40ME-B9 - 2 stroke single acting 6 cylinder 400 x 1.770 mm combustion engine Mcr 4.620 kW / 6.281 hp at 124,0 rpm Builder: Makita Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 124,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 0,93 MPa Evaporation: 15,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW - 4 stroke 6 cylinder 180 x 280 mm diesel engines each Mcr 615 kW connected with generators each 530 ekW |
|
Bow thruster |
1x Tunnel thruster 641 kW / 872 bhp, forward |
|
Number of tanks |
20 |
|
Cargo tank capacity 98% |
Liquid: 20.671 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
1.161 m³ |
|
Number of pumps |
12 x Cargo pumps each 300 m³/h 8x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 896,50 m³ Fresh water: 375,05 m³ Diesel oil: 198 m³ |
|
Crew size |
21 |
|
ISM & commercial manager |
ASM Maritime BV 7th Floor, Tower I, Strawinskylaan 1979 1077 XX Amsterdam The Netherlands |
|
Registered owner |
Chem Neon SA Monrovia Liberia |
|
Latest data adjustment |
27 August 2021 |
