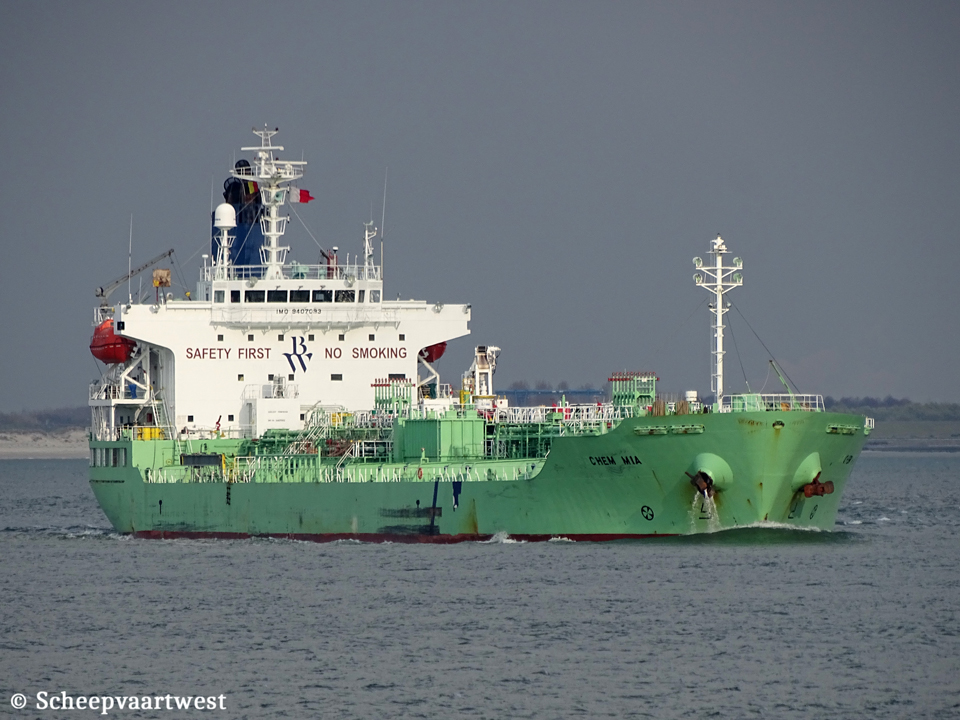

| Westerschelde 13 April 2019 |
 |
|

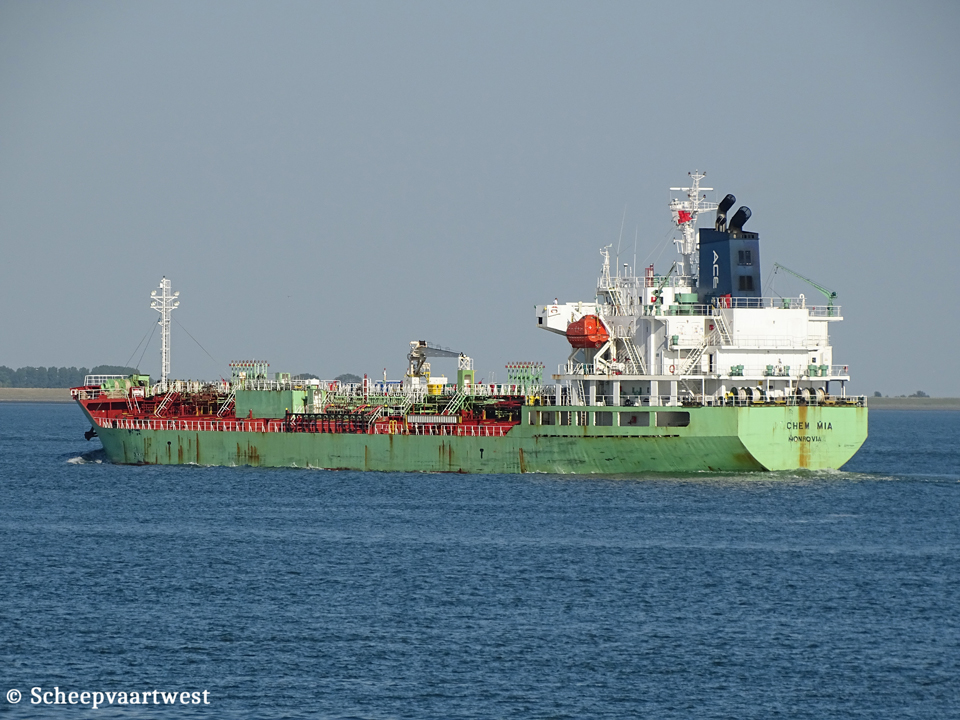

| Westerschelde 23/06/20 | |
|
Name |
CHEM MIA |
|
Previous names |
2008 - 07/2011 Golden Mia 07/2001 - 06/2014 Stream Mia 06/2014 - 2019 BW Mia |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9407093 |
|
Call sign |
D5TG7 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2008 - 2011 Republic of panama, Panama City - Call sign: 3ETA2 2011 - 2014 Marshall Island, Majuro - Call sign: V7WN9 2014 - 2019 Isle Of Man - United Kingdom, Douglas - Call sign: 2HNX2 |
|
GT |
11.645 t registered |
|
DWT |
Summer: 19.702,15 t |
|
NT |
6.326 t registered |
|
Length |
144,03 m |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,59 m |
|
Moulded L x B x D |
136,00 x 24,20 x 12,80 m |
|
Registered L x B x D |
136,41 x 24,19 x 12,80 m |
|
Keel to mast end |
37,20 m |
|
Freeboard |
Summer: 3.245 mm |
|
Depth |
12,80 m moulded |
|
Speed |
Max.: 16,1 knots Service: 14,0 knots |
|
Built |
2008 |
|
Keel laid |
06/03/2008 |
|
Launch date |
13/06/2008 |
|
Date of completion |
09/09/2008 |
|
Builder |
Fukuoka Shipbuilding Nagasaki Yard Co., Ltd. Nagasaki Japan |
|
Yard number |
2019 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsubishi 7UEC45LA - 2 stroke single acting 7 cylinder 450 x 1.350 mm combustion engine 6.230 kW / 8.470 hp at 158 rpm Manufacturer: Akasaka Diesels Ltd.,Shizuoka - Japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 410 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,3 bar Evaporation: 18,90 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 1.935 kVA |
|
Bow thruster |
1x 641 kW |
|
Number of tanks |
26 + 2 slop tanks |
|
Cargo tank capacity |
Liquid: 22.094 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h 14x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 1.279 m² Fresh water: 893 m³ |
|
Commercial Manager |
Ace Quantum Chemical Tankers Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
ISM manager |
Fleet Management Limited 27th Floor, South Island Place, 8, Wong Chuk Hang Road, Southern Hong Kong China |
|
Registered owner |
Chem Mia SA Care of Ace Quantum Chemical Tankers CV Strawinskylaan 1057 1077 XX Amsterdam The Netherlands |
|
Latest data adjustment |
14 August 2022 |
