Patricia IMO 9312078 01
Westerschelde 17 October 2019

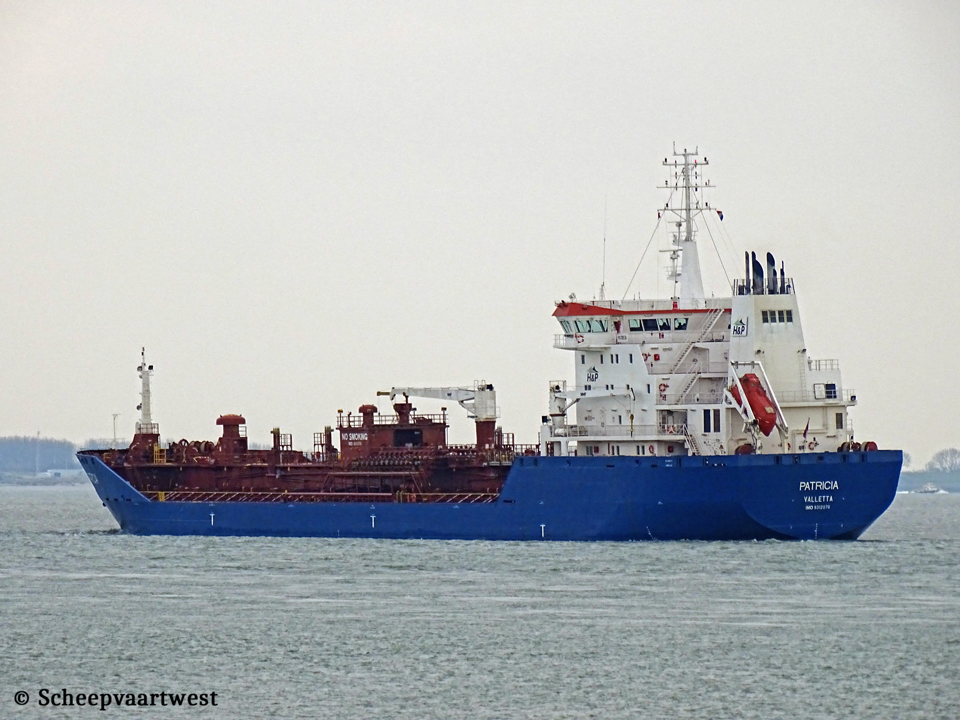

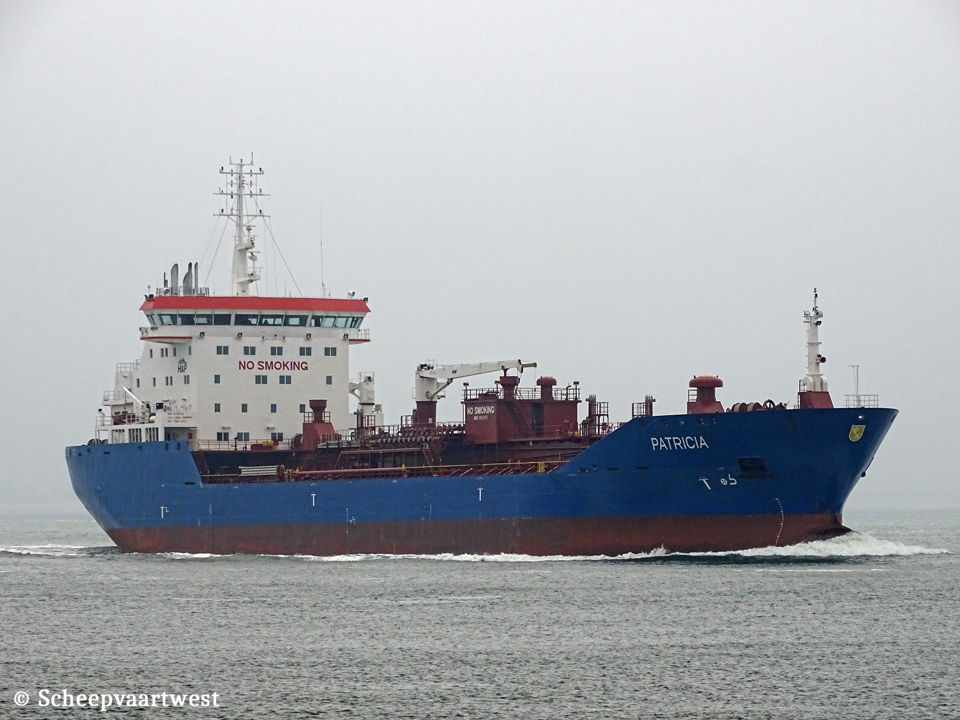

Patricia IMO 9312078 02   Patricia IMO 9312078 03
Westerschelde 07/05/17   Westerschelde 26/06/16


Name

PATRICIA

Previous names

2005 - 2010 Maersk Naantali

Type

Tanker for chemicals and oil products

IMO-number

9312078

Call sign

CQEJ9

Flag

Portugal

Port of registry

Madeira

Previous flags

2005 - 2020 Malta, Valletta - Call sign: 9HNM9

GRT

11.935 t

DWT

16.642 t

NRT

5.137 t

Light displacement

5.936 t

Length

144,05 m overall

133,80 m between perpendiculars

Breadth

23,03 m extreme

Draught

Summer: 8,90 m

Keel to mast end

44,41 m

Depth

12,40 m

Speed

Max: 15,0 knots

Built

2005

Keel laid

20/12/2004

Launch date

25/05/2005

Date of completion

24/12/2005

Builder

Jiangnan Shipyard (Group) Co., Ltd.

China

Yard number

H2330

Hull material

Steel

Hull type

Double hull

Main engine

1xMAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine 6.300 kW / 8.865 hp at 500 rpm

Builder: MAN-B&W Diesel AG, Augsburg - Germany

Propellers

1x Controllable pitch propeller

Boilers

Auxiliary boiler, oil/gas fired - Mission OM

Auxiliary boiler, composite - Mission OC

Manufacturer: Aalborg Industries A/S

Shaft generator

1x 1.500 kVA

Generators

3x Wärtsilä W6L20 main diesel generatorsets total 2.800 kVA

Emergency generator

1x AGCO Sisu 634 diesel generatorset 125 kVA

Bow thruster

1x 750 kW

Number of tanks

12 + 2 slop tanks

Cargo tank capacity

18.868,1 m³

Number of pumps

12x Cargo pumps each 300 m³/h

Tank capacities

IFO: 580,3 m³

MDO: 74,80 m³

Anchor equipment

Length: 577,50 m

Diameter: 58 mm

Crew size

20

ISM & commercial manager

Harren Tanker Management GmbH & Co. KG

Hermann-Hollerith-Strasse 10

28355 Bremen

Germany

Registered owner

57. PHOENIX PCT UG (haftungsbeschränkt) & Co. KG MS "URANUS"

Renamed

Rubikon 78

Portugal, Madeira - Call sign: CQEJ9

Owner: Rubikon Shipping Company doo Beograd, 11000 Beograd - Serbia

Manager: Harren Tanker Management GmbH & Co. KG

Latest data adjustment

09 April 2024
