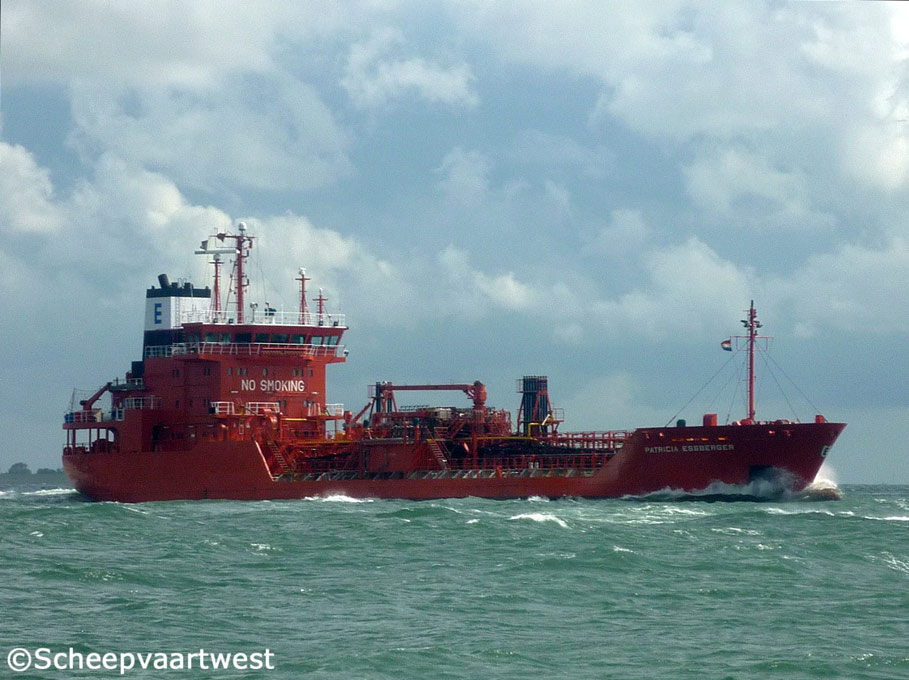

Patricia Essberger 01
Westerschelde 11 September 2012

Patricia Essberger 02   Patricia Essberger 03   Patricia Essberger IMO 9212486 04   Patricia Essberger IMO 9212486 05   Patricia Essberger IMO 9212486 06
Antwerpen 12/02/15 Antwerpen 11/08/15 Westerschelde 29/06/20 Westerschelde 29/06/20   Westerschelde 26/09/15


Name

PATRICIA ESSBERGER

Type

Chemical tanker - Oil tanker

IMO-number

9212486

Call sign

CQCD

Flag

Portugal

Port of registry

Madeira

Previous flag

Germany, Hamburg - Call sign: DALU

GT

3.557 t

DWT

Summer: 4.711 t

Winter: 4.519 t

NT

1.402 t

Displacement

Summer: 7.240 t

Length

99,93 m overall

94,25 m registered

Breadth

15,40 m registered

Draught

6,588 m

Air draft

30,40 m

Forecastle

11,35 m

Poop

25,10 m

Depth

8,15 m moulded

Speed

15,5 knots

Built

2000

Keel laid

11/01/2000

Launch date

01/08/2000

Date of completion

29/09/2000

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88

21129 Hamburg

Federal Republic of Germany

Yard number

1163

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MaK 6M43 - 4 stroke 6 cylinder combustion engine 4.750 kW at 500 rpm

Year of manufacture: 2000

Manufacturer: Krupp Mak Maschinenbau GmbH

Falckensteiner Str. 2

24159 Kiel

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 160 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating Surface: 148,0 m²

1x Steam boiler, exhaust gas heated

Heating Surface: 200,0 m²

Year of manufacture: 2000

Manufacturer: Dampfkesselbau Dresden-Übigau GmbH

Werftstr. 5

01139 Dresden

Federal Republic of Germany

Electric installation

3x Plants each 440/220 V - 591 kVA

1x Plant 440 V - 1.190 kVA

1x Plant 440 V - 156 kVA

Shaft generator

1x 1.190 kVA

Generators

3x Main diesel generatorsets each 591 kVA

Emergency generator

1x Diesel generatorset 156 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

1x Receiver 2.000 litres - 11,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 450 kW, forward

Number of cargo tanks

14

Cargo tank capacity

Liquid: 5.082 m³

Tank capacities

Fuel oil: 308 m³

Ballast: 1.781,54 m³

Anchor equipment

3x Anchors weight each 2.640 kg

Chain length: 467,50 m

Diameter: 40 mm

Manager

John T. Essberger GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Operator

John T. Essberger GmbH & Co. KG

Registered owner

KTR Karibik Tank-Reederei GmbH & Co. KG

Palmaille 45

22767 Hamburg

Federal Republic of Germany

Latest data adjustment

11 August 2021
