Westerschelde 20 November 2019 |
Name |

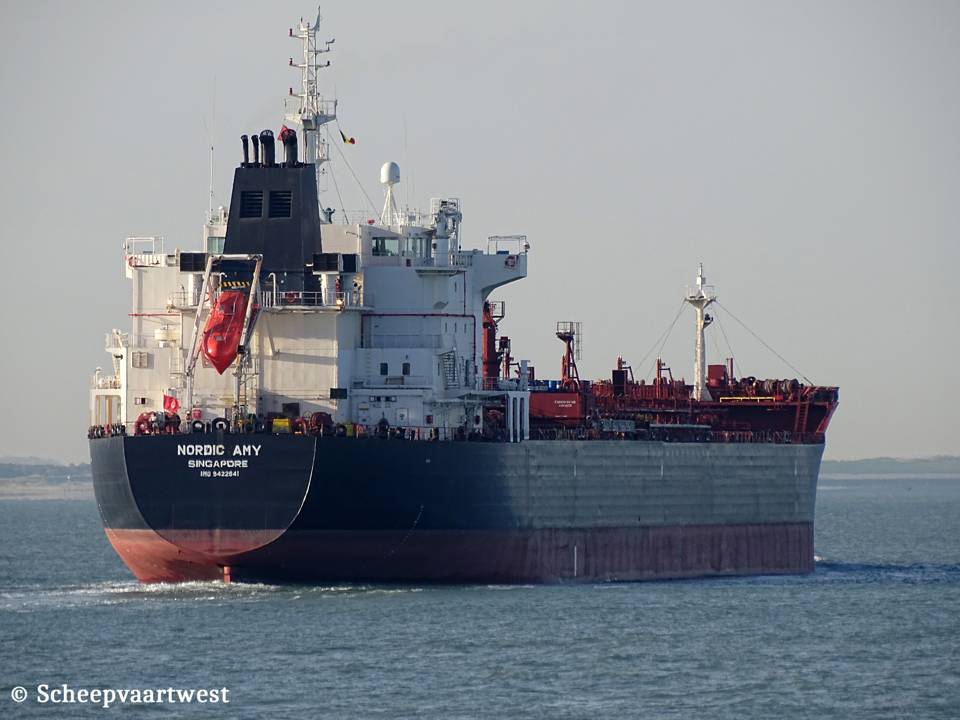

NORDIC AMY |
Previous names |
12/2009 - 04/2014 Amy |
Type |
Oil and chemical carrier |
IMO-number |
9422641 |
Call sign |
9V2533 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
Previous flags |
12/2009 - 04/2014 Liberia, Monrovia - Call sign: A8SA5 |
GT |
23.251 t Suez: 24.510,96 t |
DWT |
Summer: 37.759 t |
NT |
9.968 t Panama: 19.346 t Suez: 21.052,23 t |
Displacement |
46.551 t |
Length |
184,21 m overall 176,00 m between perpendiculars |
Breadth |
27,40 m moulded |
Draught |
Summer: 11,52 m |
Keel to mast end |
46,59 m |
Freeboard |
5.413 mm |
Depth |
17,20 m moulded |
Speed |
Max: 15,5 knots |
Built |
2009 |
Delivery date |
07/07/2009 |
Builder |
Hyundai Mipo Dockyard Co. Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
Yard number |
2103 |
Hull material |
Steel |
Hull type |
Double hull |
Bulkheads |
Water tight: 11 Oil tight: 3 Non tight: 5 |
Continuous decks |
1 |
Main engine |
1x Hyundai/B&W type 6S50MC-C - 6 cylinder 460 x 1.932 mm combustion engine 7.860 kW / 10.686 hp at 129,0 rpm Manufacturer: HHI Engine & Machinery Div. |
Propellers |
1x Mono-block fixed pitch propeller Builder: Hyundai Heavy Industries Co., Ltd. |
Boilers |
1x Auxiliary boiler - 7,0 MPa 1x Exhaust gas economizer - 7,0 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
Generators |
3x Main diesel generatorsets each 730 kW Manufacturer: HHI Electro Electric System |
Emergency generator |
1x Diesel generatorset 200 kW |
Bow thruster |
1x 882 kW |
Number of tanks |
12 + 2 slop tanks |
Cargo tank capacity |
Liquid: 42.679,5 m³ |
Slop tank capacity |
1.121 m³ |
Number of pumps |
10x Framo Deepwell cargo pumps each 500 m³/h 2x Framo Deepwell cargo pumps each 300 m³/h 2x Framo Deepwell cargo pumps each 200 m³/h 2x ballast pumps each 750 m³/h |
Tank capacities |
Ballast: 18.116,20 m³ Fuel oil: 1.175,10 m³ Fresh water: 456,20 m³ Diesel oil: 225,70 m³ Hydraulic oil: 18,60 m³ Lub oil: 91,30 m³ |
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
Lifting equipment |
1x Hose handling crane - SWL 10,0 t 1x Engine Room Crane - SWL 2,0 t Manufacturer: Oriental Prec & Eng'g Co. 1x Provision crane - SWL 2,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
Crew size |
25 |
Commerical manager |
Nordic Shipholding A/S Sundkrogsgade 19 2100 Copenhagen Denmark |
ISM manager |
Columbia Shipmanagement 20-03, Suntec Tower Two 9, Temasek Boulevard Singapore 038989 Republic of Singapore |
Registered owner |
Nordic Amy Pte Ltd. Care of Nordic Shipholding A/S Sundkrogsgade 19 2100 Copenhagen Denmark |
Renamed |
2022 Cape Corfu Liberia, Monrovia - Call sign: 5LEM4 Reg. owner: Nordic Amy Pte. Ltd. Operator: Columbia Ship management (Singapore) Pte Ltd. |
Latest data adjustment |
13 April 2022 |
