Westerschelde 03 November 2012 |
Westerschelde 20/05/17 | |
Name |

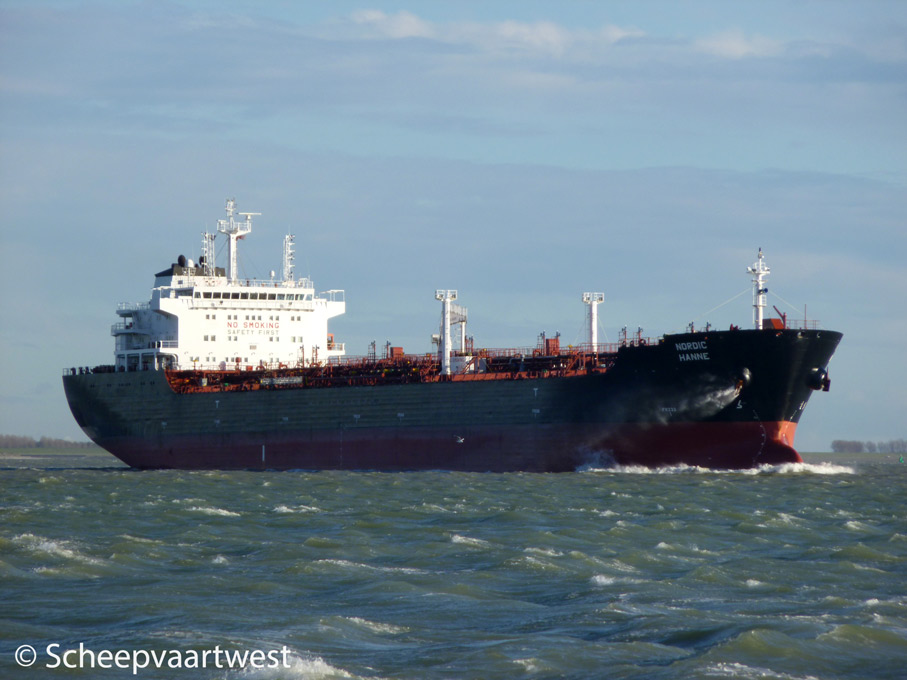

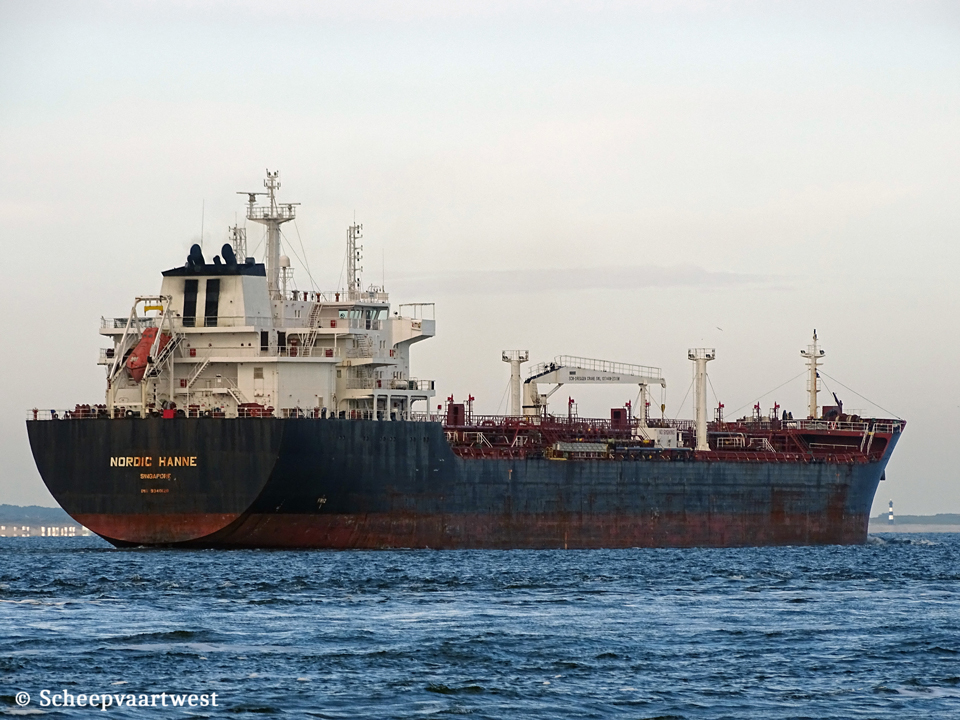

NORDIC HANNE |
Previous names |
20/09/2007 - 31/01/2008 Amy |
Type |
Oil tanker / Chemical tanker |
IMO-number |
9340128 |
Call sign |
9V2536 |
Flag |
Republic of Singapore |
Port of registry |
Singapore City |
Previous flag |
2007 - 2017 Republic of Liberia, Monrovia - Call sign: A8MR9 |
GT |
24.112 t registered Suez: 25.628,64 t |
DWT |
Summer: 38.395,86 t Winter: 37.275 t |
NT |
11.118 t registered Suez: 21.646,27 t |
Length |
182,86 m overall 174,50 m between perpendiculars |
Breadth |
27,42 m |
Draught |
11,62 m |
Keel to mast end |
44,00 m |
Freeboard |
5.213 mm |
Depth |
16,80 m moulded |
Speed |
Service: 14,2 knots Max: 15,2 knots |
Built |
2007 |
Keel laid |
21/03/2007 |
Launch date |
13/06/2007 |
Date of completion |
20/09/2007 |
Builder |
Guangzhou International Shipyard No. 40 Fang Cun Road South Guangzhou Guangzhou, 510382 China |
Hull material |
High Strength Steel |
Hull type |
Double hull |
Bulkheads |
Water tight: 6 Oil tight: 6 |
Main engine |
1x MAN-B&W 6SC50-MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm Manufacturer: Dalian Marine Diesel Works |
Propellers |
1x Fixed pitch propeller Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co, Ltd. |
Boilers |
1x Exhaust Gas Boiler AQ-2 - 9,0 bar 1x Fired Boiler AQ-18 - 9,0 bar Manufacturer: Aalborg Industries Ltd. |
Generators |
3x B&W 6L23/30H main diesel generatorsets each 910 kW Manufacturer: Zhenjiang Marine Diesel Works |
Bow thruster |
1x 750 kW |
Number of cargo tanks |
10 |
Number of slop tanks |
2 |
Segregation |
5 |
Cargo tanks 98% |
37.963,20 m³ |
Slop tanks 98% |
5.480,90 m³ |
Total capacity 98% |
43.140,70 m³ |
Pumps |
10x Submerged centrifugal type each 540 m³/h 2x Submerged centrifugal type each 300 m³/h 1x Submerged centrifugal type - 100 m³/h 1x Portable pump - 150 m³/h 2x Ballast pumps each 1.000 m³/h 1x Ballast eductor - 80 m³/h |
Number of tanks |
Ballast: 15 Fuel oil: 10 Lubricating oil: 8 Diesel oil: 4 Fresh water: 4 Waste water: 2 Chain: 1 |
Tank capacities |
Diesel oil: 143,98 m³ Fresh water: 609,72 m³ Fuel oil: 1.381,70 m³ Lube oil: 123,68 m³ Tank ballast: 17.431,44 m³ |
Lifting equipment |
1x Engine room overhead crane - SWL 3,0 t Manufacture: Danish Crane Building A/S 1x Hose handling crane - SWL 10,0 t Manufacture: South China Marine Machiney Co.,Ltd. 1x Provision crane - SWL 3,0 t Manufacture: South China Marine Machiney Co.,Ltd. |
Operator |
Thome Ship Management Pte. Ltd. |
Registered owner |
Nordic Hanne Pte. Ltd |
Renamed |
2021 - 2023 Nordic Tatiana Liberia, Monrovia - Call sign: 5LAB5 Manager: Ernst Jacob Gmbh & Co., KG - Germany Owner: Nordic Tatiana Schifffahrts - Germany 2023 Tatiana Liberia, Monrovia - Call sign: 5LAB5 |
Latest data Adjustment |
19 September 2023 |
