| Vlissigen, The Netherlands 20 April 2019 |
|
Name |

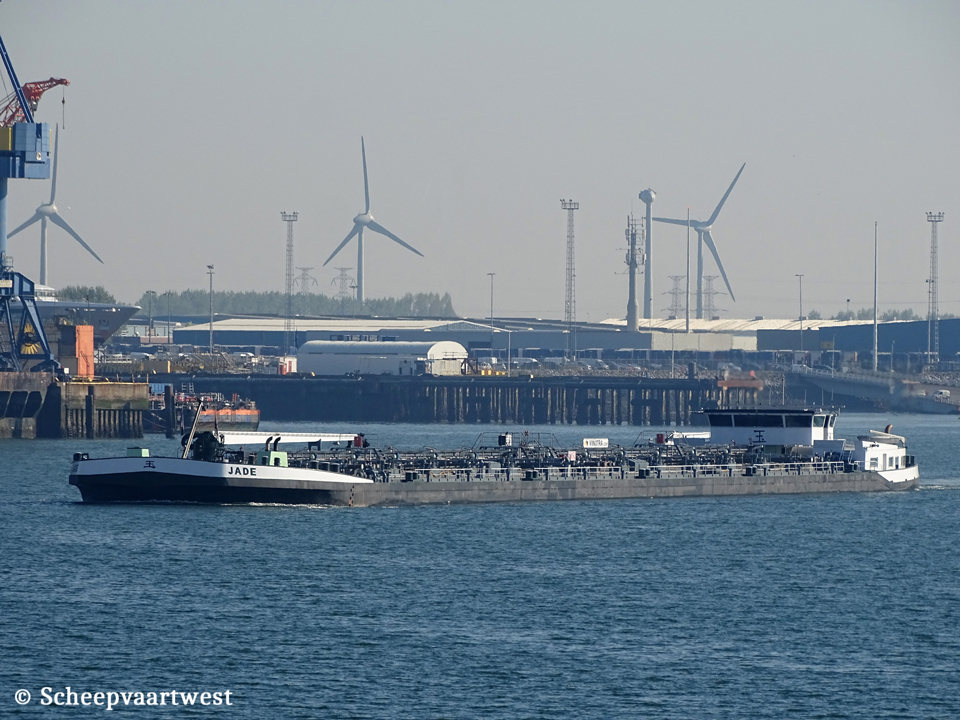

JADE |
|
Type |
Chemical tanker, Inland waterways |
|
IMO number |
9306081 |
|
ENI-number |
02326538 |
|
Call sign |
PHAO |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
9.007 t |
|
Length |
134,95 m overall 133,00 m between perpendiculars |
|
Breadth |
20,00 m moulded 20,24 m extreme |
|
Draught |
4,60 m |
|
Depth |
6,00 m |
|
Built |
2004 |
|
Keel laid |
19/04/2003 |
|
Date of completion |
23/07/2004 |
|
Builder casco |
Yahua Shipyard Nantong China |
|
Builder completion |
Alblas Scheepsbouw BV Hendrik Ido Ambacht The Netherlands |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
2x MTU DDC 12V4000M60 - 12 cylinder combustion engines each 1.324 kW / 1.800 hp at 1.800 rpm |
|
Propellers |
2x Rudder propellers type VZ-1250-CR each 1.250 kW at 1.800 rpm |
|
Generators |
1x SisuDiesel 620 DSRI diesel generatorset 127 kVA 1x SisuDiesel 420 DSRG diesel generatorset 80 kVA 2x Generatorsets each 600 kW |
|
Bow thruster |
Electro motor - Veth-Jet - 550 hp |
|
Tank capacity |
10.600 m³ |
|
Lifting equipment |
1x Car crane - SWL 2,0 t at 16,00 m |
|
Owner |
Vof. Jade Gouman-Akker 11 2994 BC Barendrecht The Netherlands |
|
Latest data adjustment |
25 April 2022 |
