Vlissingen, The Netherlands 01 February 2019 |
 |
 |
 |
 |
 |
||||

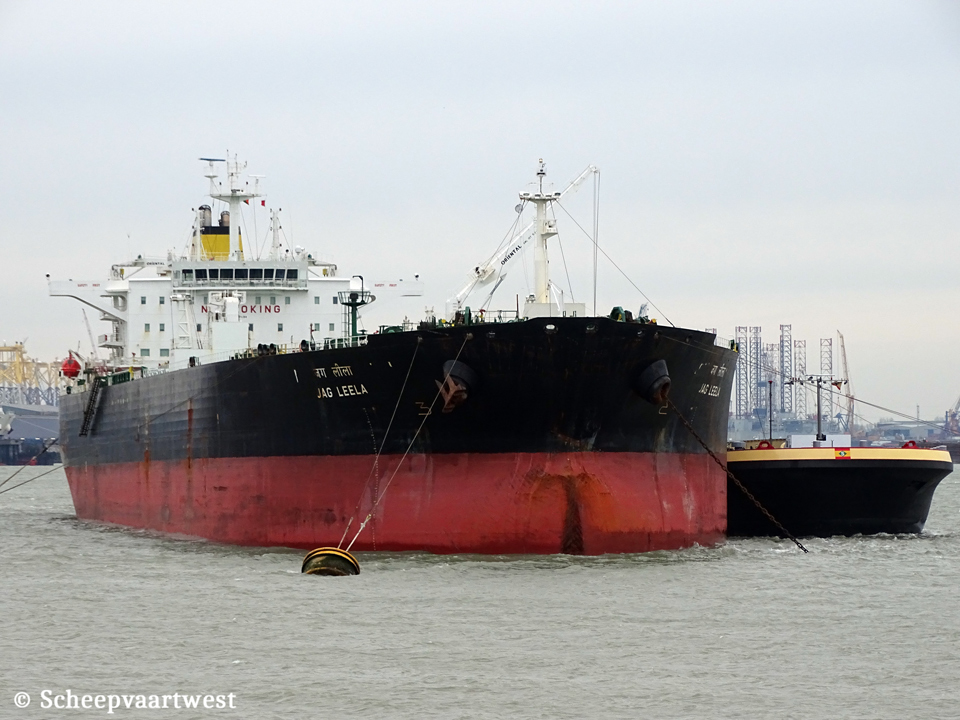

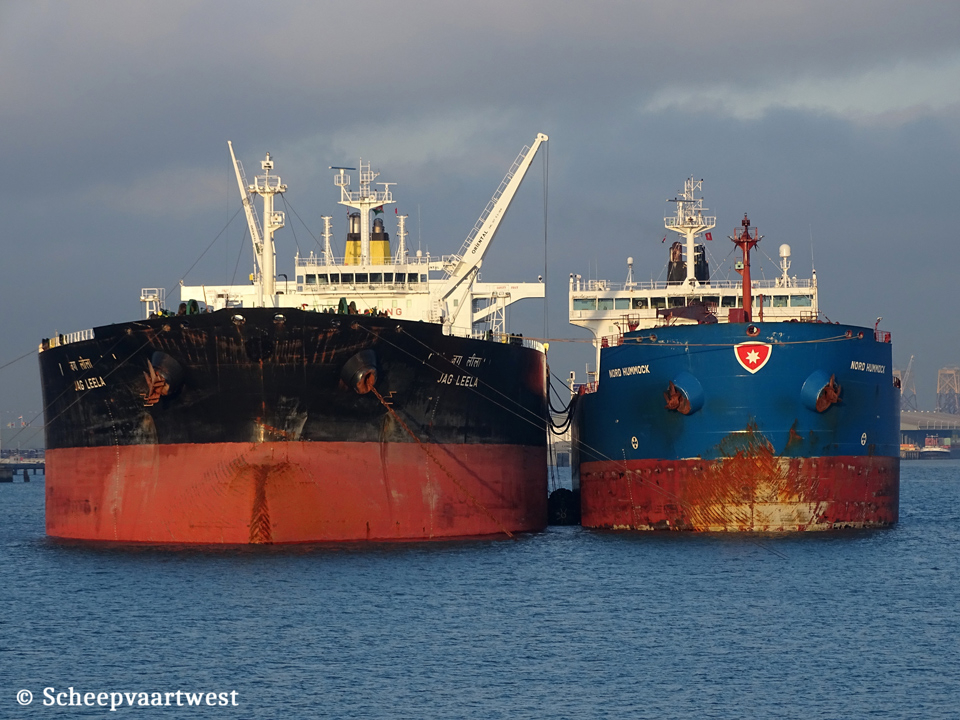

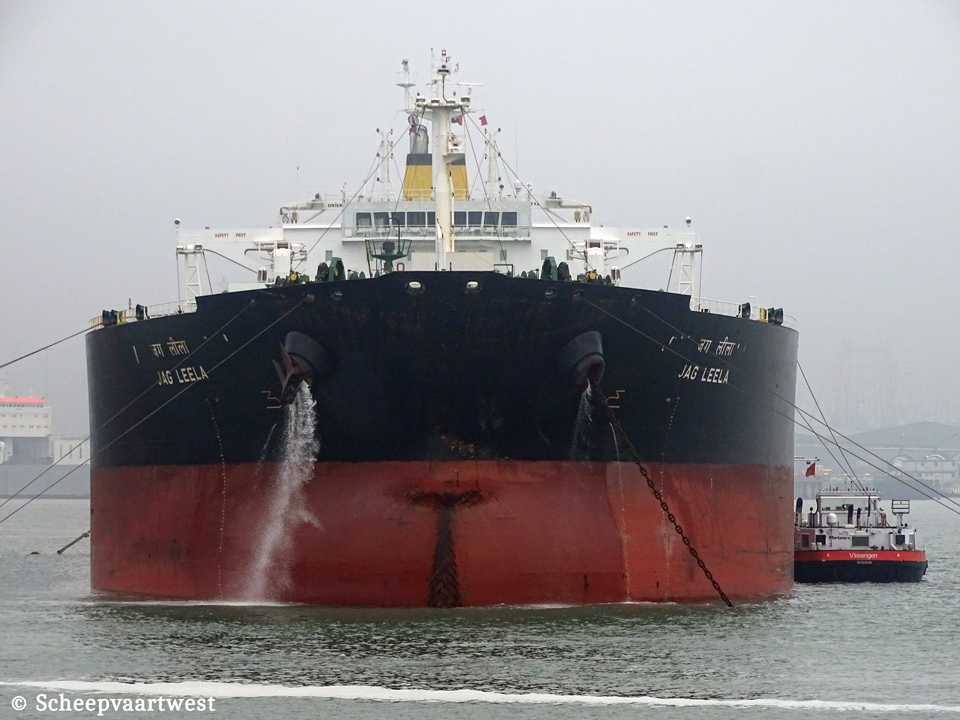

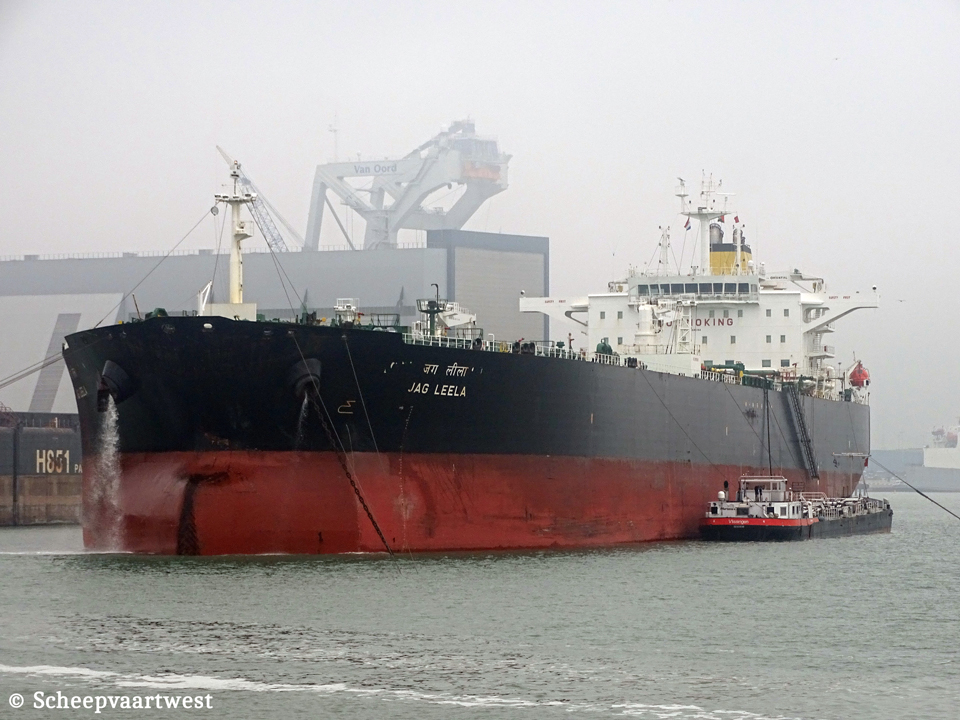

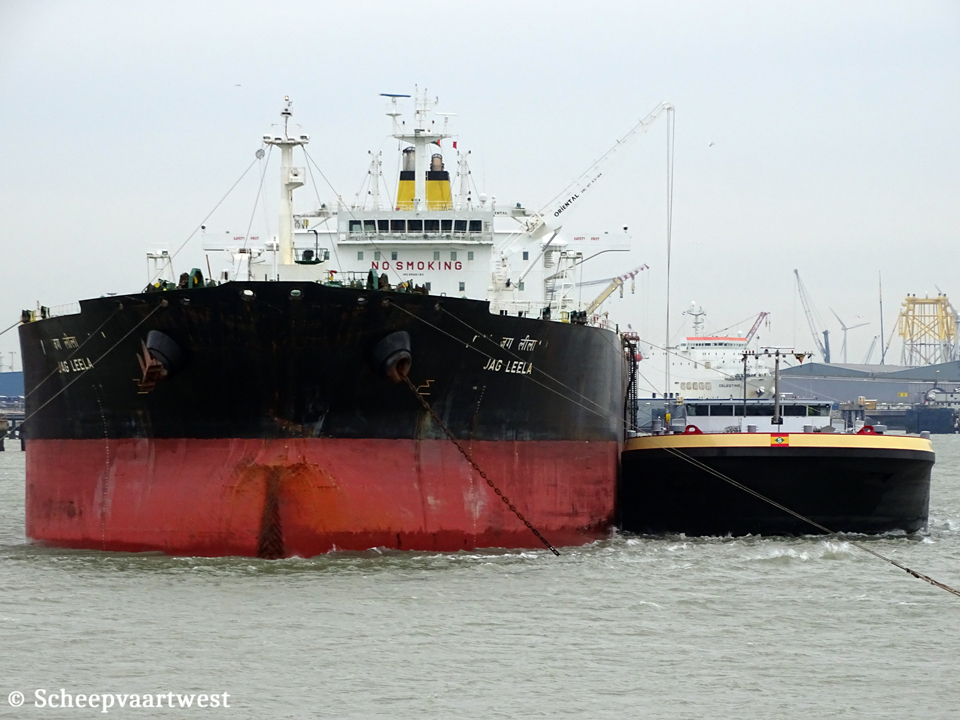

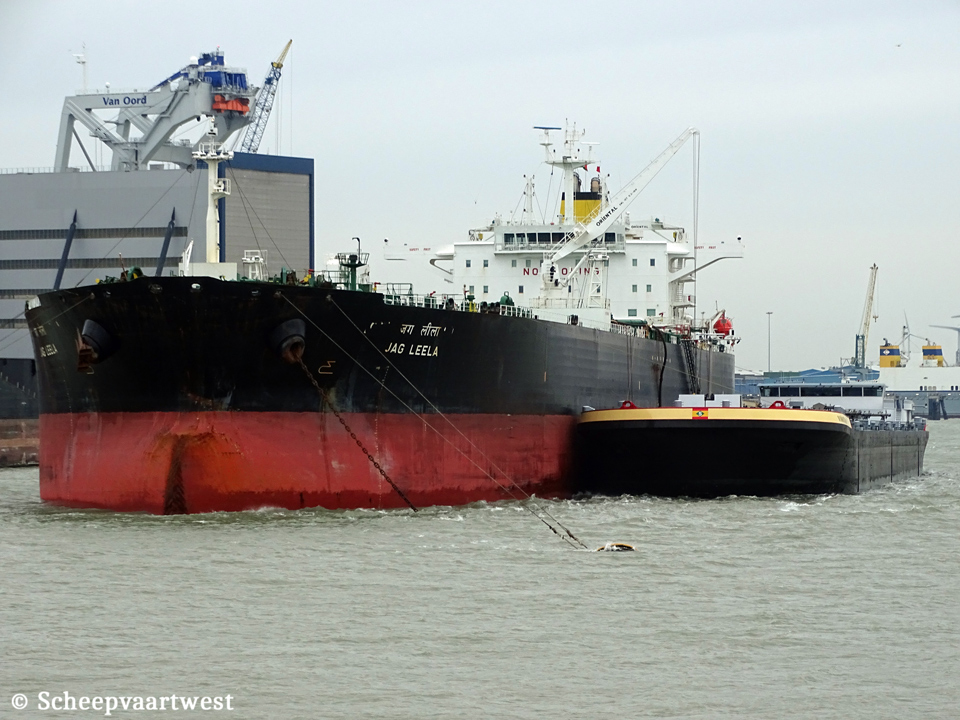

| Westerschelde 01/02/19 | Westerschelde 04/02/19 | Westerschelde 04/02/19 | Westerschelde 04/02/19 | Westerschelde 04/02/19 | ||||
|
Name |
JAG LEELA |
|
Previous names |
09/2011- 01/2017 Phoenix Strength |
|
Type |
Aframax crude oil tanker |
|
IMO-number |
9568184 |
|
Call sign |
AWTB |
|
Flag |
India |
|
Port of registry |
Mumbai |
|
Previous flags |
09/2011- 01/2017 Republic of Panama, Panama city - Call sign: 3FYB5 |
|
GT |
57.249 t |
|
DWT |
Summer: 105.525,2 t |
|
NT |
32.957 t |
|
Displacement |
123.905 t |
|
Light ship weight |
18.400 t |
|
Length |
244,00 m overall 234,00 m between perpendiculars |
|
Breadth |
42,03 m extreme |
|
Draught |
Summer: 15,03 m |
|
Keel to mast end |
50,41 m |
|
Freeboard |
6.016 mm |
|
Depth |
21,00 m moulded |
|
Speed |
15,6 knots |
|
Built |
2011 |
|
Keel laid |
16/05/2011 |
|
Launch date |
22/07/2011 |
|
Delivery date |
23/09/2011 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. Bangeojinsunhwan-Doro, Dong-Gu Ulsan South Korea |
|
Yard number |
2377 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6S60MC-C8 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine Mcr 14.280 kW / 19.415 hp at 105,0 rpm Build: 29/04/2011 Manufacturer: HHI Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Division |
|
Boilers |
2x Auxiliary boiler - 18,0 MPA 1x Exhaust gas economizer Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
3x MAN-B&W 6L23/30H main diesel engines each 780 kWconnected with generators each 730 kW - 450 Volt 60 Hz Manufacturer: HHI Electro Electric System |
|
Cargo tank capacity |
119.620 m³ |
|
Number of pumps |
3x Cargo pumps 3.000 m³/h |
|
Tank capacities |
Ballast: 37.536 m³ Fuel oil: 1.810 m³ Diesel oil: 344 m³ Fresh water: 336 m³ Lube oil: 190 m³ |
|
Lifting equipment |
2x Hose handling cranes - SWL 15,0 t each 1x Engine room crane - SWL 4,0 t 2x Provision cranes Manufacturer: Oriental Precision & Engineering Co., Ltd. |
|
Crew size |
30 |
|
Manager |
The Great Eastern Shipping Co Ltd. Ocean House , 134-A, Dr. Annie Besant Road , Worli Mumbai India |
|
Registered owner |
The Great Eastern Shipping Co., Ltd. Ocean House, 134A, Dr Annie Besant Road, Worli Mumbai, 400018 India |
|
Previous names & owners |
09/2011- 01/2017 Phoenix Strength - Phoenix Strength Inc. |
|
Latest data adjustment |
22 June 2023 |
