| Westerschelde 05 February 2020 |
|
Name |

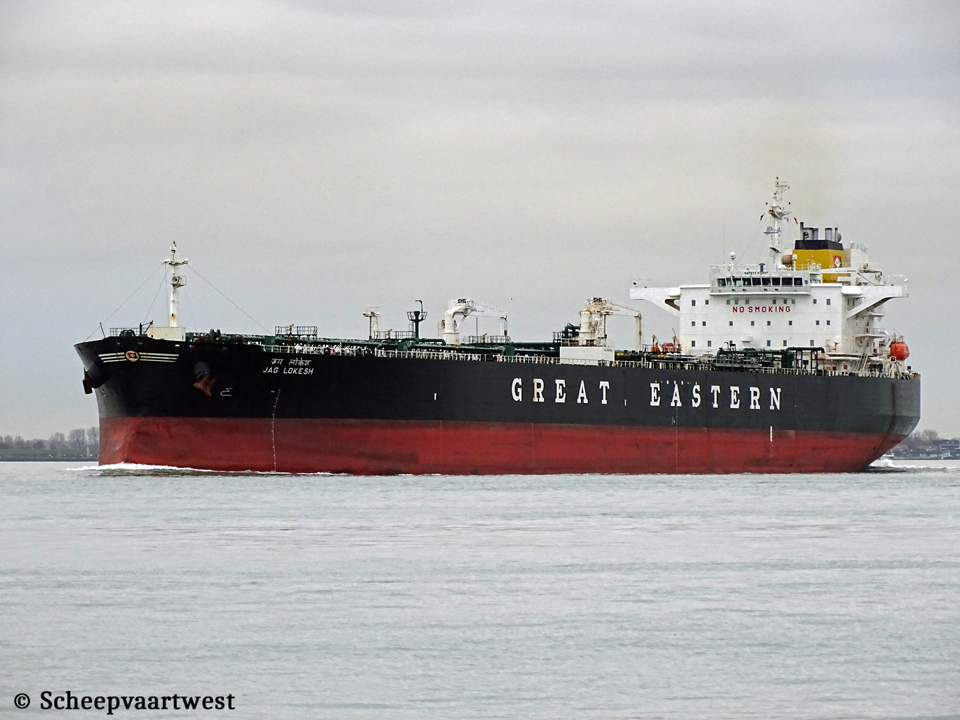

JAG LOKESH |
|
Previous names |
2009 - 2017 Phoenix Light |
|
Type |
Crude and oil products carrier |
|
IMO-number |
9390599 |
|
Call sign |
AWWM |
|
Flag |
India |
|
Port of registry |
Mumbai |
|
Previous flags |
2009 - 2017 Republic of Panama, Panama City - Call sign: HPHV |
|
GT |
57.142 t Suez: 59.410,48 t |
|
DWT |
105.599 t |
|
NT |
32.732 t Suez: 54.761,34 t |
|
Displacement |
111.053 t |
|
Light weight |
17.344 t |
|
Length |
244,18 m overall 234,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
Max: 14,90 m |
|
Keel to mast end |
51,29 m |
|
Freeboard |
6.116 mm |
|
Depth |
21,03 m |
|
Speed |
14,4 knots |
|
Built |
2009 |
|
Keel laid |
14/07/2008 |
|
Launch date |
10/10/2009 |
|
Delivery date |
05/01/2009 |
|
Builder |
Hyundai Heavy Industries. Co., Ltd. Bangeojinsunhwan-Doro, Dong-Gu Ulsan South Korea |
|
Yard number |
1930 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x 6S60MC-C7 - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine 13.560 kW / 18.436 hp at 105,0 rpm Build: 30/07/2008 Builder: Hyundai Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler (Startboard) - 17,65 MPa 1x Auxiliary water tube boiler (Port) - 17,65 MPa Manufacturer: Aalborg Industries Ltd. 1x Exhaust gas economizer - 20,6 MPa Manufacturer: Kangrim Heavy Ind. Co,.Ltd. |
|
Generators |
3x Main diesel generatorsets each 710 kW |
|
Emergency generator |
1x Diesel generatorset 120 kW |
|
Number of tanks |
14 |
|
Cargo tank capacity |
118.140,80 m³ |
|
Number of pumps |
3x Cargo pumps each 3.000 m³/h |
|
Tank capacities |
Fresh water: 335,00 m³ Lub oil: 146,80 m³ Diesel oil: 230,70 m³ Fuel oil: 3.105,20 m³ Ballast: 37.850,70 m³ |
|
Lifting equipment |
1x Engine room overhead crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co. Ltd. 1x Port cargo hose handling crane - SWL 15,0 t 1x Port provision crane - SWL 4,0 t 1x Starboard cargo hose handling crane - SWL 15,0 t 1x Starboard provision crane - SWL 2,0 t Manufacturer: Oriental Precision & Engineering Co. Ltd. |
|
ISM & commercial manager |
The Great Eastern Shipping Co., Ltd. Ocean House, 134A, Dr Annie Besant Road, Worli, Mumbai, 400018 India |
|
Registered owner |
The Great Eastern Shipping Co., Ltd. Ocean House, 134A, Dr Annie Besant Road, Worli, Mumbai, 400018 India |
|
Latest data adjustment |
05 September 2022 |
