| Westerschelde 04 March 2019 |
 |
| Westerschelde 04/03/19 |
|
Name |

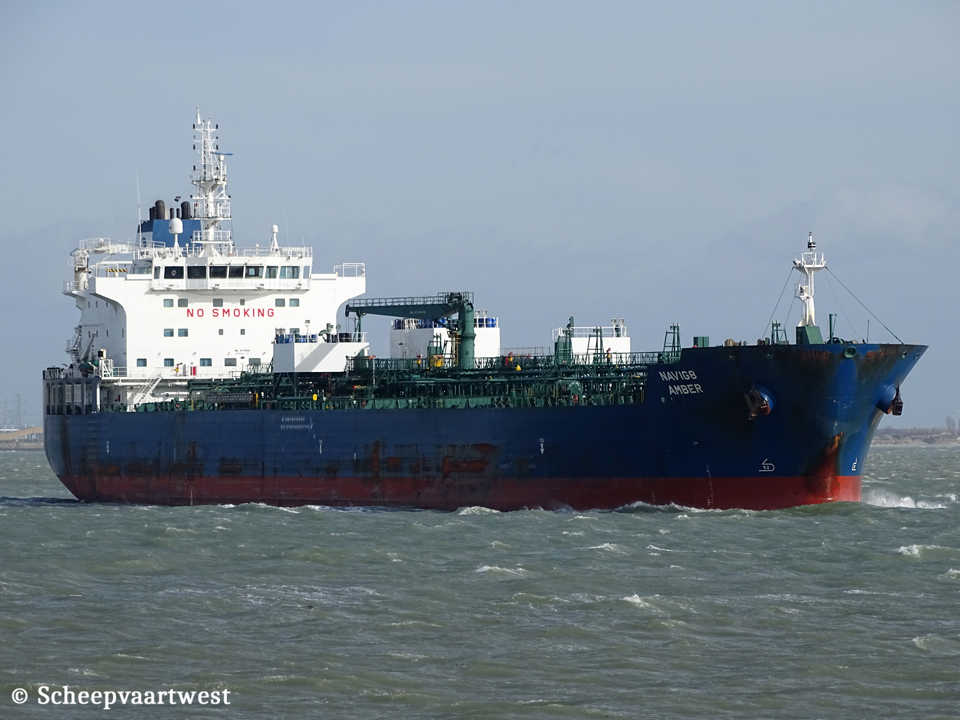

NAVIG8 AMBER |
|
Type |
Chemical & oil tanker |
|
IMO-number |
9714056 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.676 t |
|
DWT |
28.506 t |
|
NT |
10.252 t |
|
Displacement |
47.506 t |
|
Length |
184,00 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,52 m |
|
Keel to mast end |
47,19 m |
|
Freeboard |
5.514 mm |
|
Depth |
17,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
2015 |
|
Keel laid |
22/09/2014 |
|
Launch date |
15/11/2014 |
|
Date of completion |
27/02/2015 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2512 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/MAN-B&W 6S50ME-B9.3 - 6 cylinder 500 x 2.214 mm combustion engine 7.290 kW / 9.911 hp at 99,3 rpm Manufacturer: HHI Engine & Machinery Div |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Fired boiler - 8,83 MPa 1x Fired exhaust gas boiler - 8,83 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
2x Main diesel generatorsets each 1.100 kW 1x Main diesel generatorset 900 kW Manufacturer: HHI Electro Electric System |
|
Number of tanks |
14 + 2 slop tanks |
|
Cargo tank capacity |
39.794,90 m³ |
|
Number of pumps |
14x Cargo pumps each 500 m³/h |
|
Tank capacities |
Fresh water: 675,30 m³ Lub oil: 92,80 m³ Fuel oil: 944,30 m³ Ballast: 17.874,30 m³ Hydraulic oil: 17,50 m³ Diesel oil: 338,70 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacturer: Oriental Precision Machinery Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Commercial manager |
Navig8 Chemicals Asia Pte Ltd. 25-01, Centennial Tower, 3, Temasek Avenue Singapore 03919 Republic of Singapore |
|
ISM manager |
OSM Ship Management AS Svinoddveien 12 4836 Arendal Norway |
|
Registered owner |
Hai Kuo Shipping 1912t Ltd. Care of Navig8 Chemicals Asia Pte Ltd , 25-01, Centennial Tower, 3, Temasek Avenue Singapore 039190 Republic of Singapore |
|
Renamed |
04/2022 Hafnia Amer Marshall Island, Majuro - Call sign: V7GW2 Owner: Hai Kuo Shipping 1912t Ltd. Operator: OSM Ship Management AS |
|
Latest data adjustment |
19 September 2022 |
