Westerschelde 31 August 2018 |
 |
|
| Westerschelde 12/11/19 | |
|
Name |

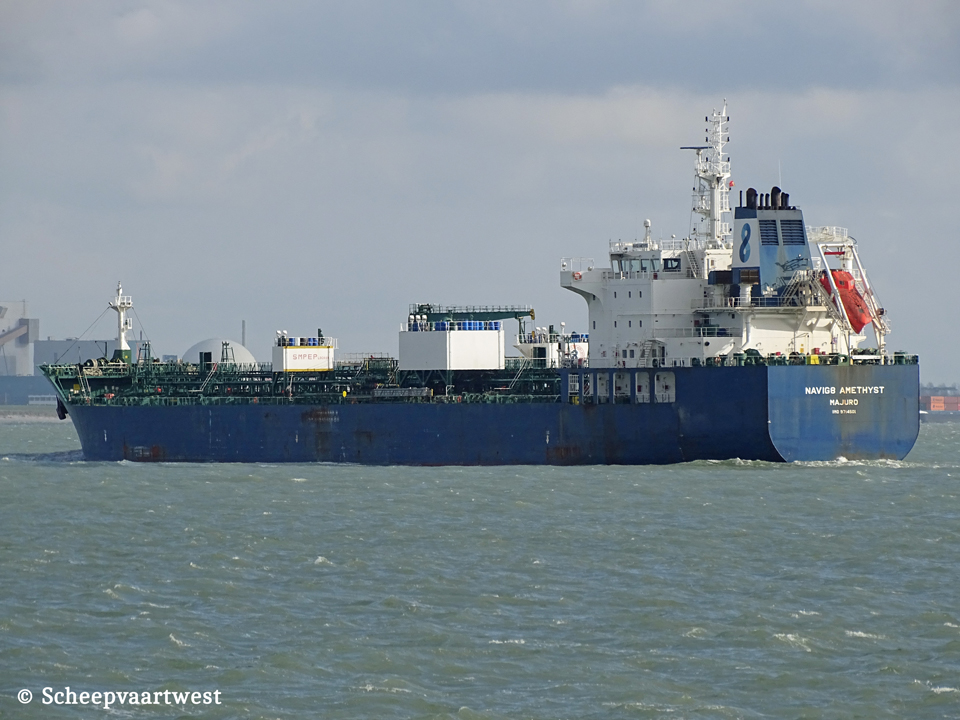

NAVIG8 AMETHYST |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9714501 |
|
Call sign |
V7GW3 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
23.676 t |
|
DWT |
37.596 t |
|
NT |
10.252 t |
|
Displacement |
46.596 t |
|
Length |
184,00 m overall |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,52 m |
|
Reg. dimensions L x B x D |
177,42 x 27,40 x17,20 m |
|
Rule dimensions L x B x D |
173,47 x 27,40 x17,20 m |
|
Freeboard |
5.714 mm |
|
Depth |
17,20 m moulded |
|
Speed |
14,5 knots |
|
Built |
2015 |
|
Keel laid |
22/09/2014 |
|
Launch date |
18/11/2014 |
|
Delivery date |
06/03/2015 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2513 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6S50ME-B9.3 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine 7.290 kW at 99,3 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Fired boiler - 9,0 MPa 1x Fired exhaust gas boiler - 9,0 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
2x Hyundai/Himsen 6H21/32 - 4 stroke 6 cylinder 210 x 320 mm diesel engines each 1.170 kW connected with generators each 1.100 ekW 1x Hyundai/Himsen 6H21/32 - 4 stroke 6 cylinder 210 x 320 mm diesel engine 960 kW connected with generator1900 ekW Manufacturer HHI Electro Electric System |
|
Number of tanks |
14 |
|
Cargo oil capacity |
39.794,90 m³ |
|
Tank capacities |
Ballast: 17.874,30 m³ Diesel oil: 338,70 m³ Fresh water: 675,30 m³ Fuel oil: 925,10 m³ Hydraulic oil: 17,50 m³ Lub oil: 92,80 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacturer: Oriental Precision Machinery Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
18 |
|
Manager |
Suntech Ship Management Pte. Ltd. #2- 24 Nordic European Center 3, International Business Park Singapore 609927 Republic of Singapore |
|
Operator |
Navig8 Chemical Tankers 3 Inc. Strandvejen 102B, 1st Floor 2900 Hellerup Denmark |
|
Registered owner |
SPDBFL No Fifteen (Shanghai) Ship Lieasing Company Limited China |
|
Renamed |
06/2022 Hafnia Amethyst Marshall island, Majuro - Call sign: V7GW3 Owner: SPDBFL No Fifteen (Shanghai) Ship Lieasing Company Limited Operator: Suntech Ship Management Pte Ltd. |
|
Latest data adjustment |
03 April 2023 |
