Name |

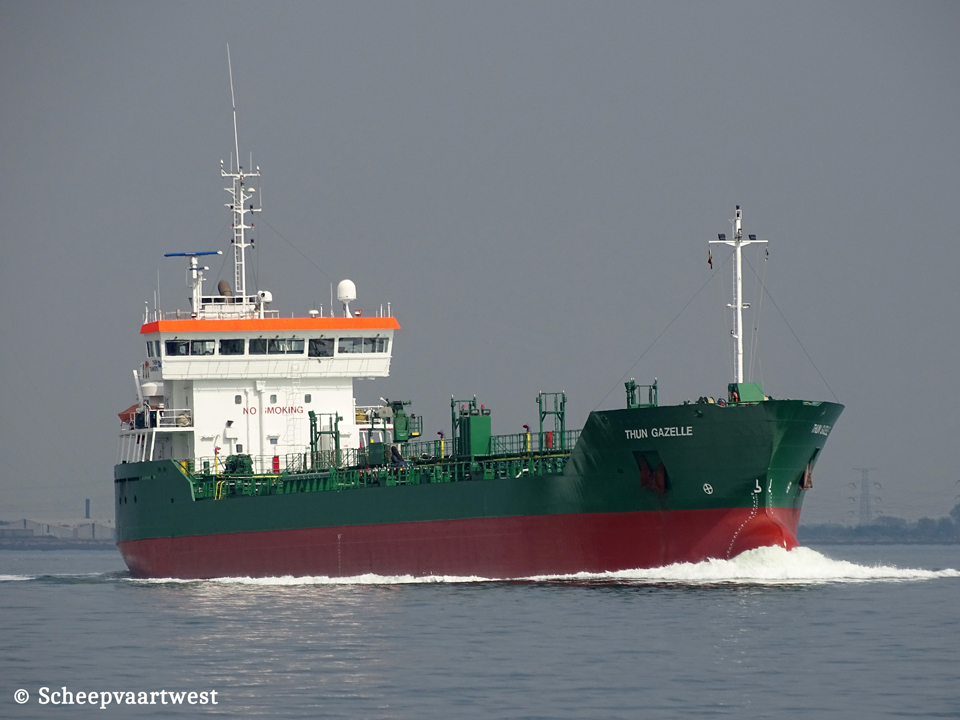

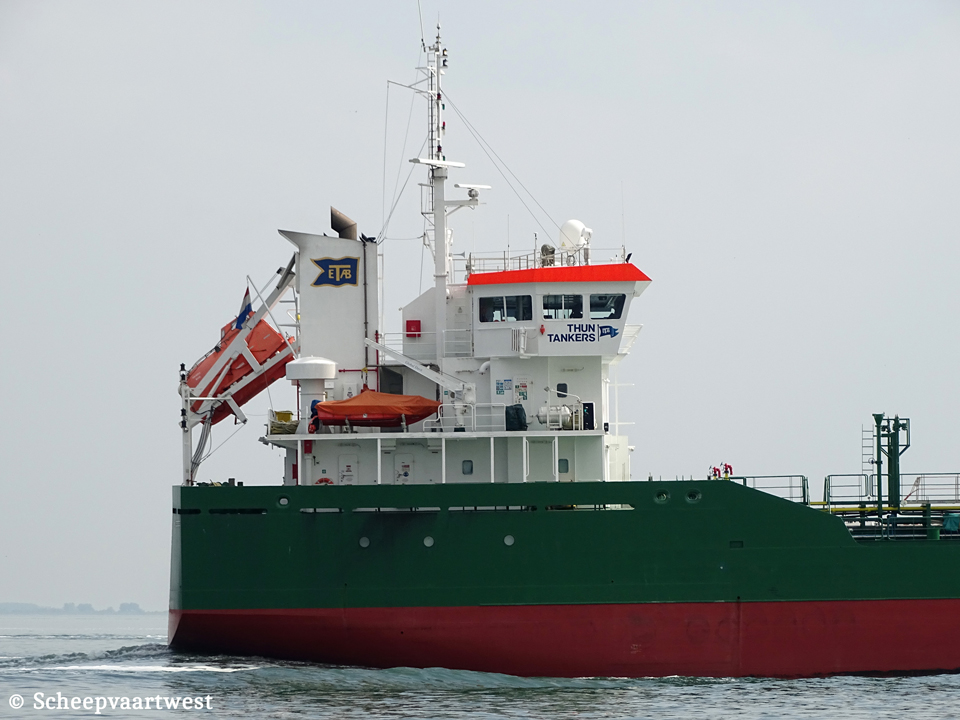

THUN GAZELLE |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9393333 |
|
Call sign |
PBQH |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
GT |
4.212 t |
|
DWT |
7.515 t |
|
NT |
1.911 t |
|
Length |
116,35 m overall 110,90 m between perpendiculars |
|
Breadth |
15,30 m extreme |
|
Draught |
Summer: 6,75 m |
|
Keel to mast end |
27,85 m |
|
Freeboard |
2.559 mm |
|
Depth |
9,30 m moulded |
|
Speed |
Service: 12,5 knots loading speed Ballast: 13,5 knots Economic: 11,0 knots |
|
Built |
2009 |
|
Keel laid |
22/04/2008 |
|
Launch date |
22/11/2008 |
|
Date of completion |
05/02/2009 |
|
Builder |
Scheepswerf Ferus Smit B.V. Westerbroek The Netherlands |
|
Yard number |
386 |
|
Hull material |
Steel |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 7L32C - 4 stroke single acting 7 cylinder 320 x 400 mm combustion engine 3.360 kW / 4.565 hp at 720 rpm Manufacturer: Wärtsilä Finland Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Controllable pitch propeller - aft at 176 rpm |
|
Shaft generator |
1x 335 kW |
|
Generators |
3x Main diesel generatorsets each 435 kVA - 348 kW - 503 hp |
|
Emergency generator |
1x Diesel generatorset 63 kVA - 50 kW - 65 hp |
|
Bow thruster |
1x Controllable pitch thruster 260 kW / 353 hp, forward |
|
Cargo tank capacity |
Liquid: 8.190 m³ |
|
Number of tanks |
9 |
|
Number of pumps |
9x Cargo pumps each 300 m³/h |
|
Tank capacities |
Ballast: 3.104 m³ HFO: 240 m³ MDO: 32 m³ |
|
Manager |
Marin Ship Management B.V Groningen The Netherlands |
|
Registered owner |
Thun Tankers B.V. Hogelandsterweg 14 9936 BH Farmsum The Netherlands |
|
Group |
MF Shipping Group Hogelandsterweg 14 9936 BH Farmsum The Netherlands |
|
Previous names & owners |
02/2009 - 02/2013 Bro Gazelle - Bro Gazelle B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
04 January 2023 |
