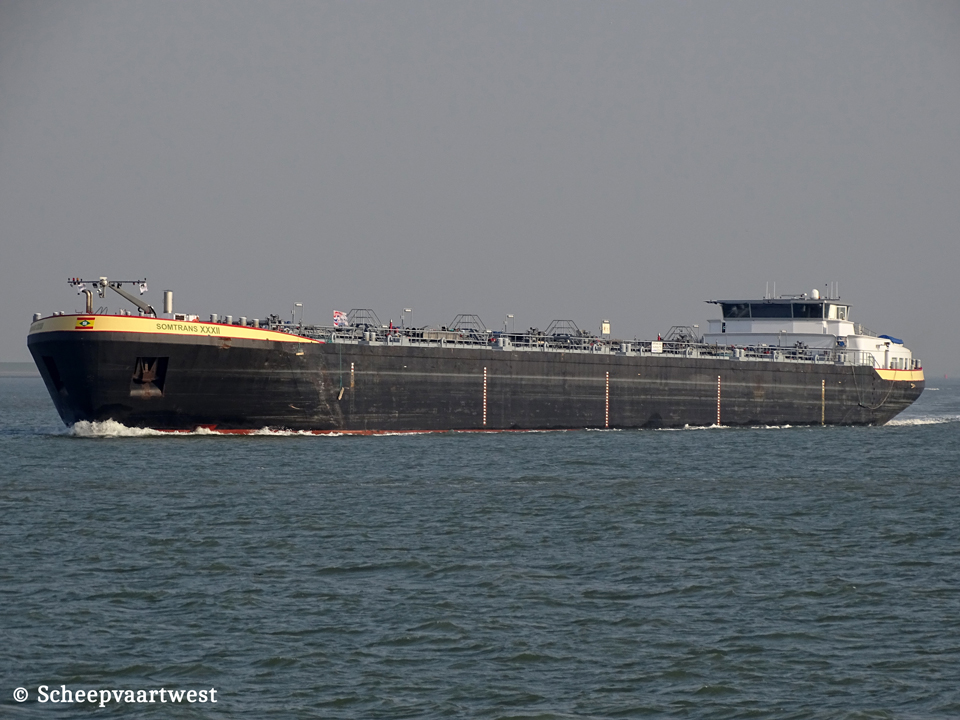

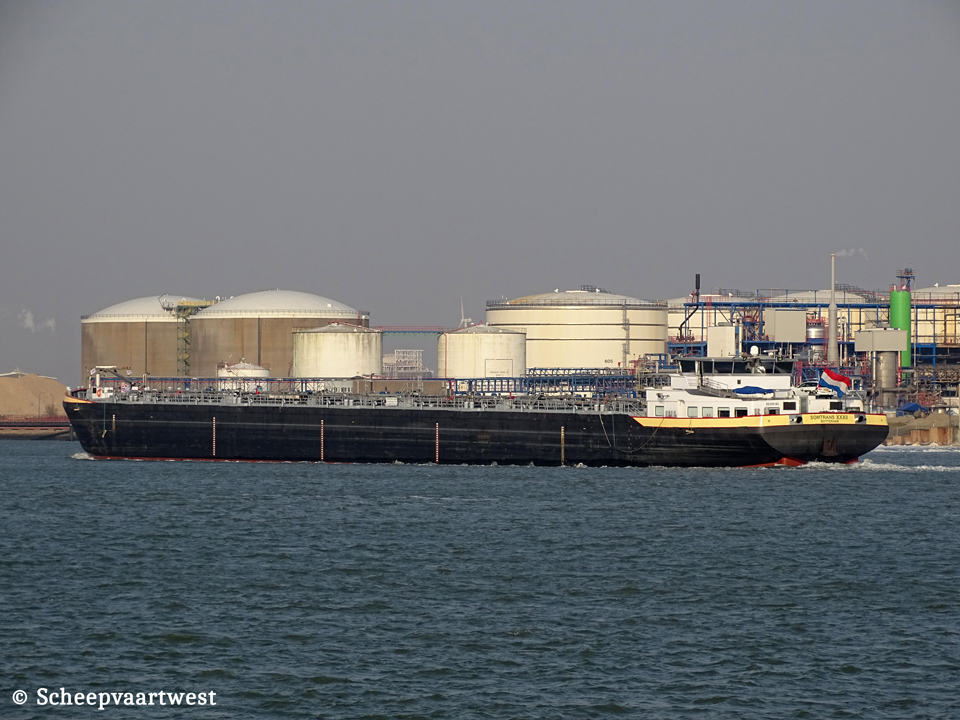

| Westerschelde 27 March 2020 |
 |
|
| Westerschelde 27/03/20 | |
|
Name |
SOMTRANS XXXII |
|
type |
Inland waterways chemical tanker |
|
ENI-number |
02335183 |
|
Call sign |
PA3684 |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
Tonnage |
7.845 t |
|
Length |
135,00 m overall 132,77 m between perpendiculars |
|
Breadth |
16,15 m moulded 16,20 m extreme |
|
Draught |
5,01 m |
|
Depth |
6,20 m moulded |
|
Built |
2013 |
|
Keel laid |
09/12/2009 |
|
Date of completion |
19/02/2013 |
|
Builder casco |
Runjiang Shipyard Jiangdu China Yard number: 07STIG189 |
|
Builder completion |
TeamCo Shipyard Heusden The Netherlands |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
2x ABC 6MDZC - 6 cylinder combustion engine each 1.235 kW / 1.800 hp |
|
Gearbox |
2x Masson MM W12000 reduction 3,034:1 |
|
Propellers |
2x 5 blades propellers diameter: 1.700 mm with nozzle Optima diameter: 1.714 mm |
|
Generators |
1x Caterpillar C18 Acert diesel connected with Marathon 572 RSL generator 4030 525 kVA 1x Cummins QSB 6.7C diesel engine connected with Marathon 431 PSL 6204 generators 160 kVA 1x Cummins QSB 5G5 diesel engine connected with Marathon 363 CSL 1607 generator 107 kVA |
|
Bow thruster |
2x 535 hp Caterpillar Verhaar Omega-Jet type 31130S1400S-4k 400 kW at 1.780 rpm |
|
Number pumps |
12x Marflex MDPD-100 electric cargo pumps each 125 m³/h |
|
Cargo tank capacity 100% |
8.265 m³ |
|
Pomp capacity |
1.800 m³/h |
|
Owner |
Somtrans 32 CV Albert Kanaalbaan 9 2110 Wijnegem Belgium |
|
Sister ships |
Somtrans XXXIII |
|
Latest data adjustment |
29 January 2023 |
