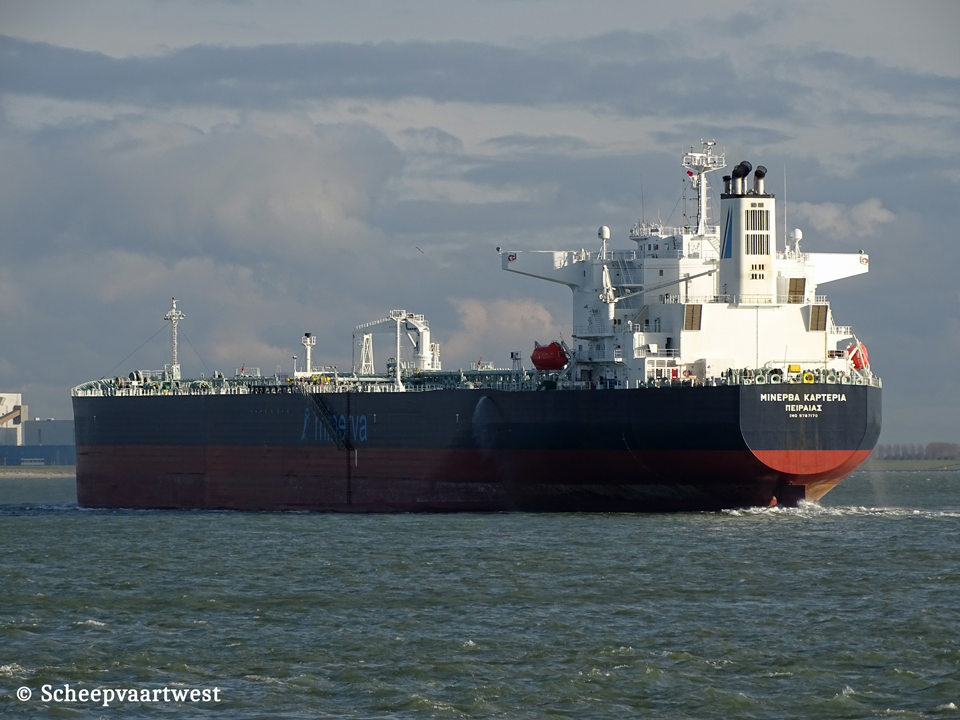

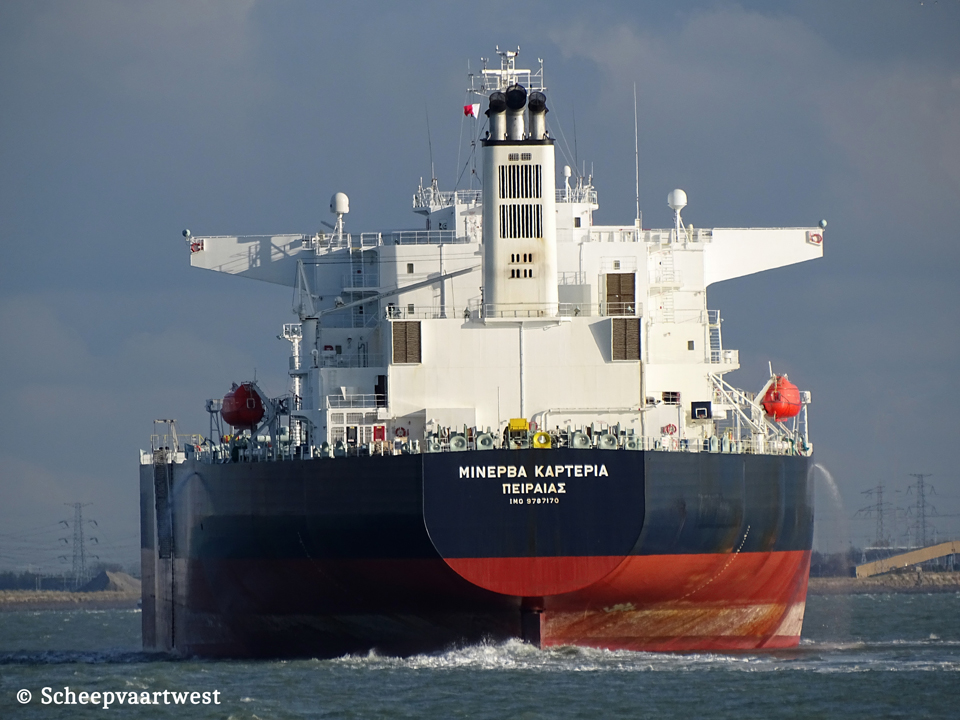

| Westerschelde 14 November 2019 |
 |
|
| Westerschelde 14/11/19 | |
|
Name |
MINERVA KARTERIA |
|
Hellenic name |
MINEPBA KAPTEPIA |
|
Type |
Crude oil tanker - Aframax |
|
IMO-number |
9787170 |
|
Call sign |
SVCR9 |
|
Flag |
Greece (Hellenic Republic) |
|
Port of registry |
Piraeus |
|
GT |
63.485 t Suez: 64.535,93 t |
|
DWT |
114.780 t |
|
NT |
35.025 t Suez: 60.142,75 t Panama: 52.148 t |
|
Displacement |
135.007 t |
|
Length |
249,97 m overall 241,00 m between perpendiculars |
|
Breadth |
44,00 m moulded |
|
Draught |
Summer: 14,84 m |
|
Freeboard |
6.417 mm |
|
Depth |
21,20 m moulded |
|
Speed |
Max: 15,6 knots Service: 14,4 knots |
|
Built |
2018 |
|
Keel laid |
18/12/2015 |
|
Launch date |
30/09/2017 |
|
Delivery date |
26/04/2018 |
|
Builder |
SSK Sasebo Heavy Industries Co.,Ltd. - Sasebo Yard Tategami-Cho 1, Sasebo City, 857-8501 Japan |
|
Yard number |
844 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsui/MAN-B&W 6G60ME-C9.5 - 2 stroke single acting 6 cylinder 600 x 2.790 mm combustion engine Mcr 11.730 kW / 15.948 hp at 88,0 rpm Manufacturer: Mitsui Engr. & Shipbuilding Co. Ltd. |
|
Propellers |
1x Fixed pitch propeller- aft at 88,0 rpm Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
2x Auxiliary boiler each 117,7 MPa Manufacturer: Mitsubishi Hitachi Power Systems, Ltd., Boiler 1x Exhaust gas economizer Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
3x Daihatsu 6DE-20 - 4 stroke 6 cylinder 205 x 300 mm diesel engines each Mcr 1.090 kW connected with generators each 1.020 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Cargo tank capacity 98% |
Liquid: 125.067,6 m³ |
|
Slop tanks capacity 98% |
5.262,6 m³ |
|
Number of pumps |
3x Cargo pumps each 3.000 m³/h 1x Cargo pump 480 m³/h |
|
Tank capacities |
Fuel oil: 2.510,9 m³ Lub oil: 180,7 m³ Diesel oil: 1.326,3 m³ Fresh water: 512,9 m³ Ballast: 41.982,6 m³ |
|
Lifting equipment |
1x Engine parts handling crane - SWL 4,5 t 1x Provision crane - SWL 0,9 t Manufacturer: Mansei Inc. 1x Engine room crane - SWL 4,5 t Manufacturer: Sekigahara Seisakusho Ltd. 1x Hose handling crane - 15,0 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Crew size |
27 |
|
Manager |
Minerva Marine Inc. 141-143, Vouliagmenis Avenue, Voula 166 73 Athens Greece |
|
Registered owner |
Nara Shipping SA c/o Minerva Marine Inc. 141-143, Vouliagmenis Avenue, Voula 166 73 Athens Greece |
|
Latest data adjustment |
03 April 2023 |
