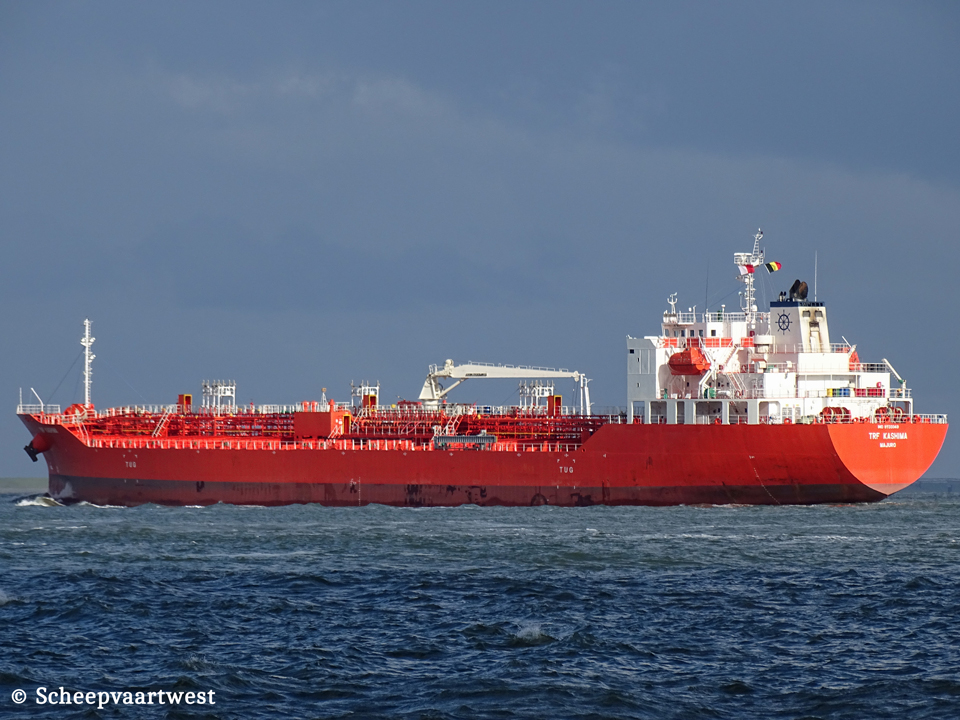

TRF Kashima IMO 9733349 01
Westerschelde 27 Apriil 2016

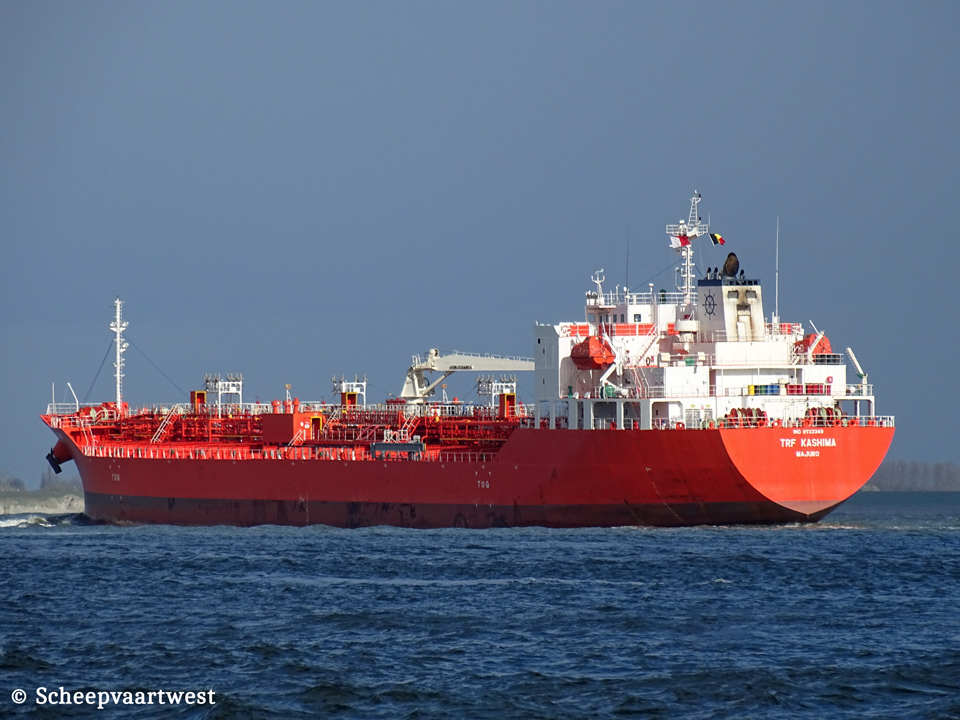

TRF Kashima IMO 9733349 02
Westerschelde 27/04/16


Name

TRF KASHIMA

Type

Tanker for chemicals and oil products

IMO-number

9733349

Call sign

V7PA8

Flag

Marshall islands

Port of registry

Majuro

GT

12.225

Suez: 12.736,81 t

DWT

Summer: 19.997,11 t

Winter: 19.387,43 t

NT

6.255 t

Suez: 10.794,25 t

Panama: 10.205 t

Displacement

Summer: 25.921,14 t

Winter: 25.311,46 t

Lightship

5.924 t

Length

145,00 m overall

139,26 m between perpendiculars

Breadth

24,20 m extreme

Draught

Summer: 9,78 m

Winter: 9,58 m

Keel to mast end

37,15 m

Air draft

Summer deadweight: 27,36 m

Normal ballast: 31,55 m

Lightship: 34,61 m

Freeboard

Summer: 3.448 mm

Winter: 3.652 mm

Depth

13,20 m moulded

Speed

Ballast: Max: 14,5 knots / Economic: 12,5 knots

Laden:Max: 14,0 knots / Economic: 12,0 knots

Max: 16,8 knots

Built

2015

Keel laid

13/04/2015

Launch date

01/08/2015

Date of completion

16/11/2015

Builder

Kitanihon Zosen K.K.

Hachinohe

Japan

Yard number

605

Hull material

Steel

Hull type

Double hull

Main engine

1x Makita-Mitsui/MAN B&W 5S46ME-B8.3 - 2 stroke single acting 5 cylinder combustion engine 4.800 kW

Propellers

1x Fixed pitch mono-block propeller

Boilers

Auxiliary boiler, oil/gas fired

Auxiliary boiler, exhaust gas heated

Generators

3x Yanmar 6EY18AL main diesel generatorsets each 660 kW

Bow thruster

1x 945 bhp

Number of tanks

20 + 2 slop tanks

Cargo tank capacity 98%

21.960,17 m³

Clop tank capacity 98%

1.183 m³

Capacity of each natural segregation

1P - 602,728 m³ / 1S - 600,912 m³

2P - 712,210 m³ / 2S - 711,646 m³

3P - 1.500,338 m³ / 3S - 1.501,031 m³

4P - 1.608,092 m³ / 4S - 1.606,608 m³

5P - 1.439,014 m³ / 5S - 1.451,916 m³

6P - 1.273,722 m³ / 6S - 1.273,664 m³

7P - 933,522 m³ / 7S - 933,267 m³

8P - 1.360,934 m³ / 8S - 1.349,803 m³

9P - 908,587 m³ / 9S - 908,728 m³

10P - 641,292 m³ / 10S - 642,143 m³

Number of pumps

20x Centrifugal cargo pumps each 250 m³/h

2x Centrifugal ballast pumps each 300 m³/h

Manifolds

Distance bridge front to centre of manifold: 43,45 m

Bow to centre manifold:74,36 m

Stern to centre manifold: 70,64 m

Distance between cargo manifold centres: 500 mm

Distance ships rail to manifold: 5.500 mm

Distance manifold to ships side: 5.750 mm

Top of rail to centre of manifold: 1.750 mm

Distance main deck to centre of manifold: 3.120 mm

Spill tank grating to centre of manifold: 1.350 mm

Tank capacities

Ballast: 7.122,51 m³

Fuel oil: 956,50 m³

Gas oil: 204,80 m³

Anchor equipment

Length: 577,50 m

Diameter: 56 mm

Lifting equipment

1x Hose-handling crane - SWL 10,0 t

Commercial manager

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Technical manager

Anglo-Eastern Shipmanagement (S) Pte Ltd.

200, Cantonment Road, #16-02, South Point

089763 Singapore City

Republic of Singapore

Registered owner

WLR/TRF KZ Holding I LLC

Trust Company Complex, Ajeltake Road, Ajeltake Island, Majuro MH 96960

Marshall Islands

Disponent owner

Hansa Tankers AS

Kalfarveien 57A

5022 Bergen

Norway

Latest data adjustment

11 April 2023
