Westerschelde 25 July 2014 |
|
Name |

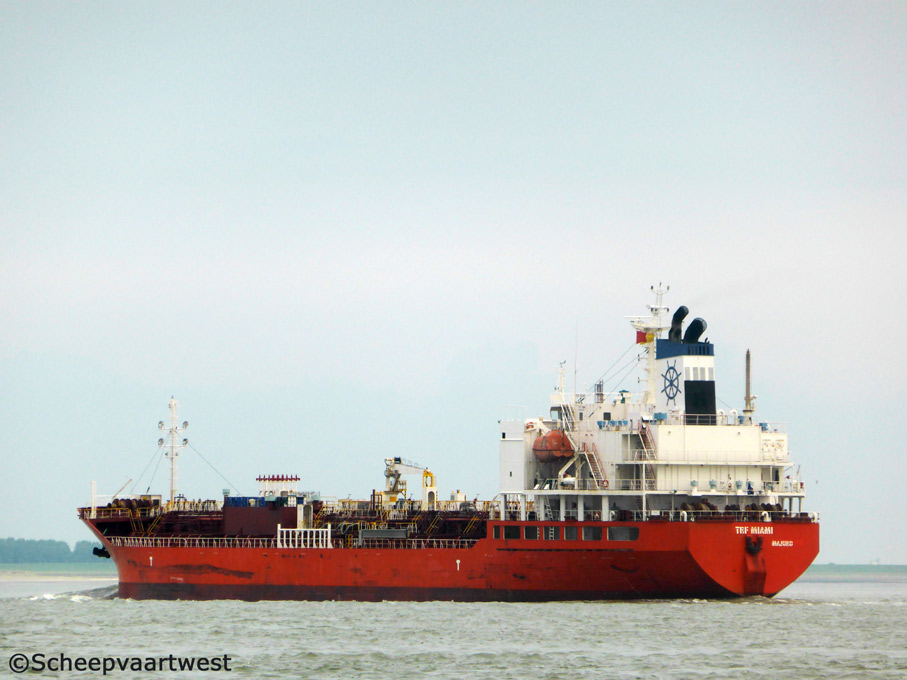

TRF MIAMI |
|
Previous names |
2008 - 07.2010 Vidden - Republic of Panama - Call sign: 3ERP 07.2010 - 07.2014 Maemi II |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9416056 |
|
Call sign |
V7GV7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
11.738 t |
|
DWT |
Summer: 19.870,73 t |
|
NT |
6.138 t |
|
Length |
146,60 m overall |
|
Breadth |
23,70 m |
|
Draught |
Summer: 9,62 m |
|
Moulded L x B x D |
138.00 x 23,70 x 13,00 m |
|
Registered L x B x D |
138,50 x 23,70 x 13,00 m |
|
Freeboard |
3.414 mm |
|
Depth |
13,00 m moulded |
|
Speed |
Service: 14,5 knots Max.: 16,4 knots |
|
Built |
2008 |
|
Keel laid |
26.12.2007 |
|
Launch date |
08.03.2008 |
|
Date of completion |
13.06.2008 |
|
Builder |
Fukuoka Shipbuilding Co., Ltd. |
|
Yard number |
F-1270 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine - 6.150 kW at 136,0 rpm Manufacturer: IMEX Co., Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 430 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 18,87 t/h Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
4x Generators - 2.160 kVA |
|
Cargo tank capacity |
22.060 m³ |
|
Tank capacities |
Fuel oil: 1.032 m³ Fresh water: 472 m³ Water ballast: 6.810 m³ |
|
Manager |
TRF Shipmanagement |
|
Operator |
Fleet Management Ltd. |
|
Owner |
Fleet Management Hong Kong |
|
Registered owner |
WLR/TRF MAEMI LLC |
|
Latest data adjustment |
23 August 2014 |
