| Westerschelde 22 August 2015 |
|
Name |

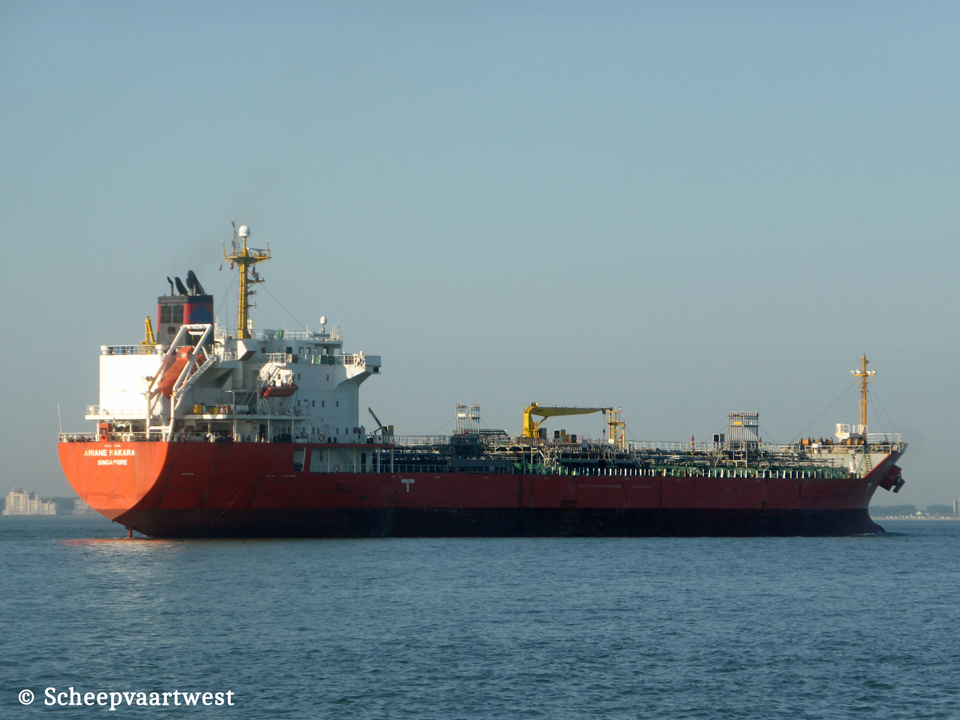

ARIANE MAKARA |
|
Previous names |
2009 - 2012 Pramesti |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9442548 |
|
Call sign |
9V7973 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
12.105 t |
|
DWT |
20.831 t |
|
NT |
6.665 t |
|
Length |
148,83 m overall |
|
Breadth |
24,20 m moulded |
|
Draught |
Summer: 9,77 m |
|
Moulded L x B x D |
141,00 x 24,20 x 12,85 m |
|
Registered L x B x D |
141,20 x 24,20 x 12,85 m |
|
Freeboard |
Summer: 3.123 mm |
|
Depth |
12,85 m moulded |
|
Speed |
Max: 17,1 knots |
|
Built |
2009 |
|
Keel laid |
25/08/2008 |
|
Launch date |
14/11/2008 |
|
Date of completion |
23/03/2009 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5492 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Makita/MAN-B&W 6S42MC Mk6 - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 6.150 kW / 8.364 bhp at 136,0 rpm Manufacturer: Makita Corporation |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,98 MPa Evaporation: 16,95 t/h Manufacturer : Aalborg(Qingdao) Boiler Company Ltd. |
|
Generators |
4x Generatorsets total 1.965 kVA |
|
Cargo tank capacity |
Liquid: 21.920 m³ |
|
Tank capacities |
Fuel oil: 1.181 m³ Fresh water: 304 m³ |
|
Manager |
Executive Ship Management Pte Ltd. 78 Shenton Way, #21-00 / #22-00 Singapore 079120 Republic of Singapore |
|
Registered owner |
Mount Rinjani Shipping Pte Ltd. Robinson 77, 77 Robinson Road Singapore 068896 Republic of Singapore |
|
Previous names & owners |
2009 - 2012 Pramesti - Berlian Laju Tanker, Jakarta - Indonesia |
|
Latest data adjustment |
08 May 2023 |
