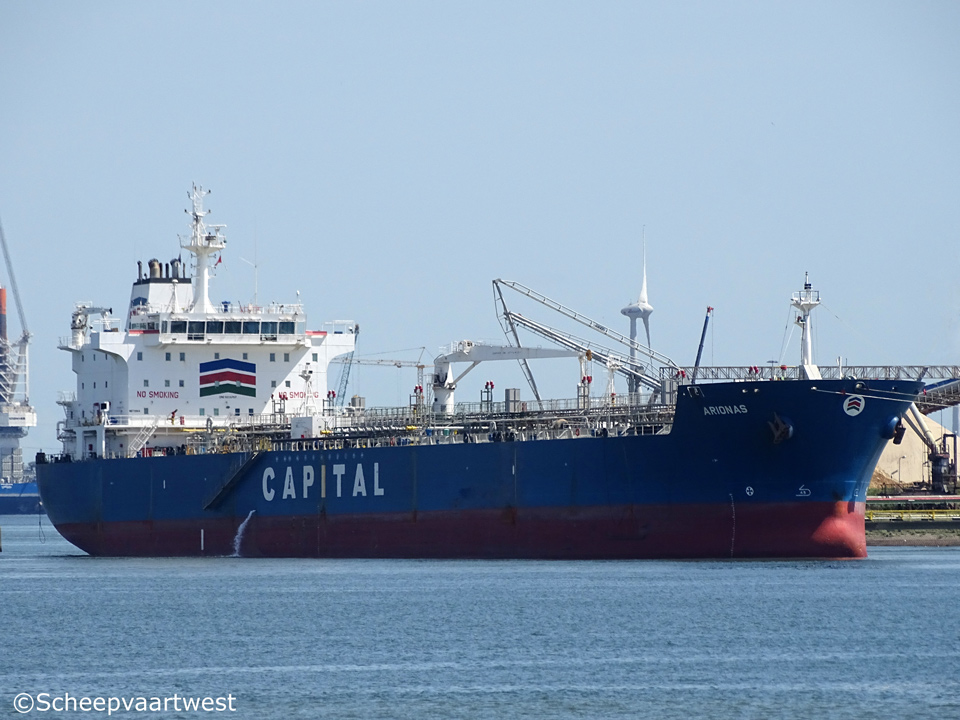

Arionas 01

Vlissingen 21 July 2017



Name

ARIONAS

Previous names

Build as: Adonis

Type

Crude oil / Product tanker

IMO-number

9315757

Call sign

V7KX7

Flag

Marshall Islands

Port of registry

Majuro

GT

23.270 t registered

Suez: 24.817,05 t

DWT

Summer: 37.627,3 t

NT

9.925 t registered

Panama: 19.383 t

Suez: 20.992,66 t

Length

184,22 m overall

176,00 m between perpendicuars

Breadth

27,40 m moulded

Draught

Summer: 11,31 m

Keel to mast

45,51 m

Freeboard

5.913 mm

Depth

17,20 m moulded

Speed

Max.: 18,0 knots

Built

2006

Keel laid

23.06.2006

Launch date

08.09.2006

Date of completion

02.11.2006

Builder

Hyundai Mipo Dockyard Co. Ltd.
Ulsan

South Korea

Yard number

0315

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Oil tight: 2

Water tight: 12

Non tight: 2

Main engine

1x Hyundai B&W 6S50MC-C - 6 cylinder 500 x 1.910 comnustion engine MCR 9.480 kW / 12.900 hp at 127 rpm

Manufacturer: Hyundai Heavy Indisuries Co., Ltd.

Propellers

1x Mono-block fixed pitch propeller
Manufacturer: Hyundai Heavy Industries Co., Ltd.

Boilers

1x Exhaust gas boiler - 12,0 bar

1x Water tube boiler - 9,0 bar

Generators

2x Main diesel generatorsets each 900 kW

1x Main diesel generatorset 740 KW

Emergency generator

1x Diesel generatorset 200 KW

Bow thruster

1x 888 kW

Number of cargo tanks

12

Cargo tank capacity 98%

40.600 m³ ex slop tanks

Number of slop tanks

2

Slop tank capacity 98%

1.034 m³

Number of cargo pumps

10x Hydraulic driven, submerged centrifugal Framo pumps each 500 m³/h

2x Hydraulic driven, submerged centrifugal Framo pumps each 300 m³/h

2x Hydraulic driven, submerged centrifugal Framo pumps each 150 m³/h

Number of ballast pumps

2x Each 750 m³/h

Manifolds

Distance bow to mid-point manifold: 92,63 m

Distance main deck to center manifold: 1.940 mm

Distance manifolds to ship's rail: 4.600 mm

Number of tanks

Ballast: 15

Lubricating oil: 8

Fuel oil: 6

Fresh water: 5

Diesel oil: 4

Chain: 2

Sludge: 2

Waste water: 1

Hydraulic oil: 1

Tank capacities 100%

Diesel Oil: 202,6 m³ / 182,34 t

Freshwater: 543 m³

Fuel Oil: 1.201,9 m³ / 1.186,36 t

Hydraulic Oil: 17,2 m³ / 15,48 t

Lube Oil: 87,9 m³ / 79,11 t

Tank Ballast: 17.511,3 m³ / 29.113,17 t

Anchor equipment

Length: 605,00 m

Diameter: 66 mm

Lifting equipment

1x Egine room overhead crane - SWL 2,0 t

Manufacture: Haean Machnery

1x Hose handling crane - SWL 10,0 t

Manufacture: Dongnam Marine Crane

1x Provision crane - SWL 2,0 t

Manufacture: Haean Machnery

Operator

Capital Ship Management Corp.
3 Iassonos Street
Piraeus, 185 37
Greece

Registered owner

Carnation Shipping Company

Latest data adjustment

26 September 2017
