| Westerschelde 11 May 2018 |
 |
|
| Westerschelde 11/05/18 | |
|
Name |

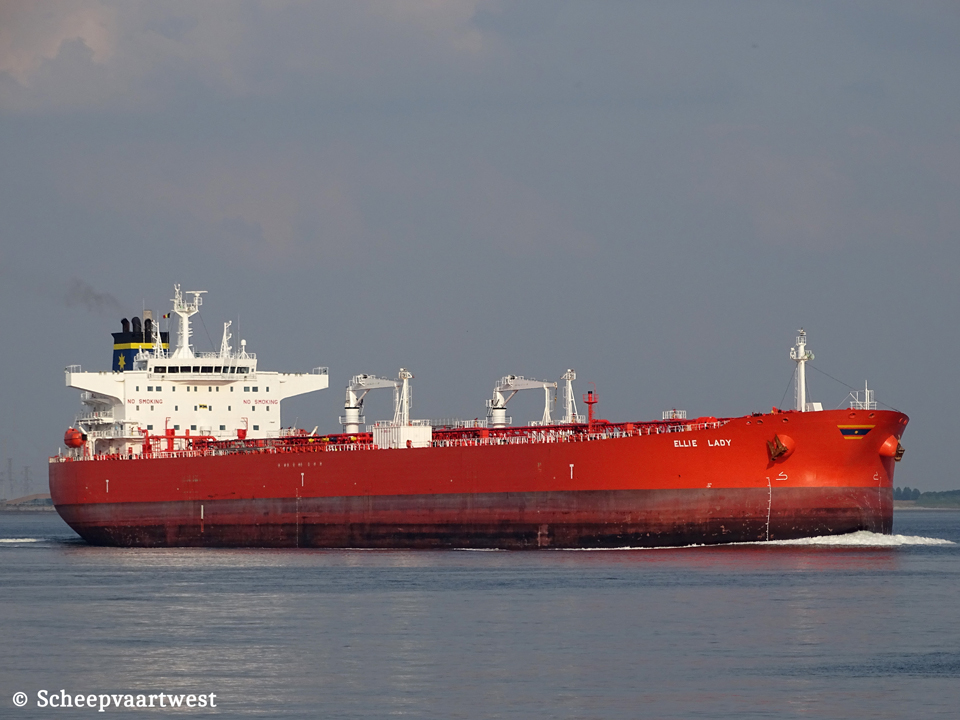

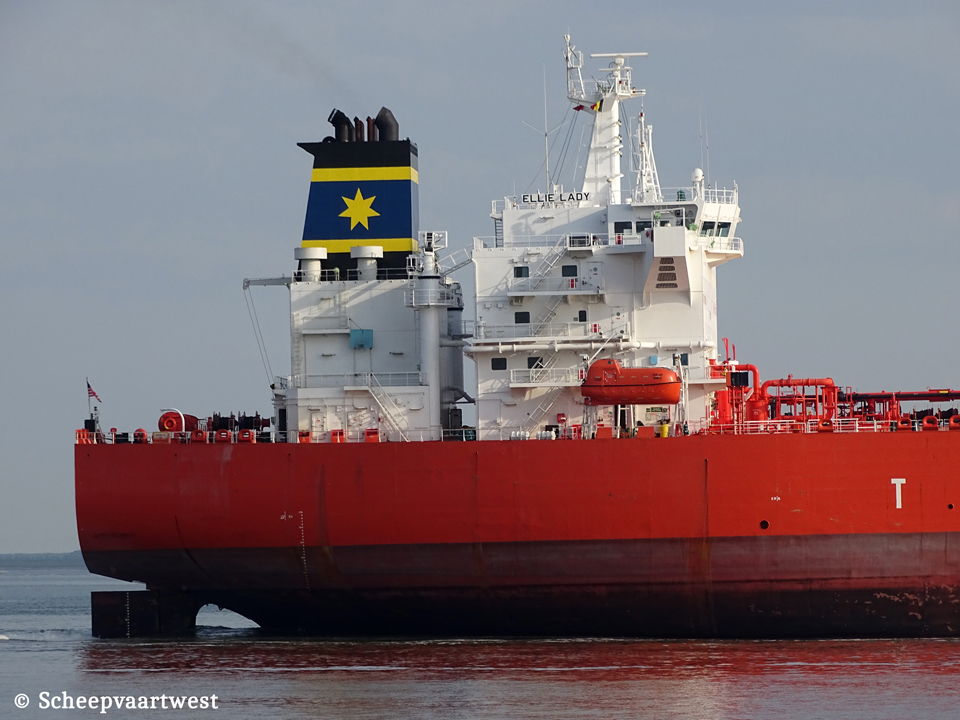

ELLIE LADY |
|
Type |
Oil product tanker - Crude oil tanker |
|
IMO-number |
9390173 |
|
Call sign |
A8TT3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
62.491 t |
|
DWT |
109.999 t |
|
NT |
33.367 t |
|
Length |
247,90 m overall 237,00 m between perpendiculars |
|
Breadth |
44,03 m extreme |
|
Draught |
Max: 14,82 m |
|
Keel to mast end |
49,33 m |
|
Depth |
21,00 m moulded |
|
Speed |
14,7 knots |
|
Built |
2009 |
|
Keel laid |
19/01/2009 |
|
Date of completion |
19/10/2009 |
|
Builder |
Sungdong Shipbuilding & Marine Engineering Tongyoung South Korea |
|
Yard number |
3038 |
|
Hull material |
Steel - Part higher tensile steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 7S60ME-C - 7 cylinder combustion engine 15.820 kW / 22.300 hp |
|
Propellers |
1 |
|
Generators |
3x Yanmar 6N21AL-SV main diesel generatorsets |
|
Cargo tank capacity 98 |
Liquid: 125.478 m³ |
|
Number of slop tanks |
2 Tank Port: 1.073 m³ Tank Starboard: 1.324,3 m³ |
|
Number of pumps |
3x Cargo pumps each 3.000 m³/h 2x Ballast pumps each 2.000 m³/h |
|
Tank capacities |
Ballast: 41.931,5 m³ |
|
Manage
|
Western Shipping Pte. Ltd. 456 Alexandra Road #21-01 Fragrance Empire Building Singapore 119962 Republic of Singapore |
|
Registered owner |
Fraise Finance Ltd. 80 Broad Street Monrovia Liberia |
|
Latest data adjustment |
15 May 2023 |
