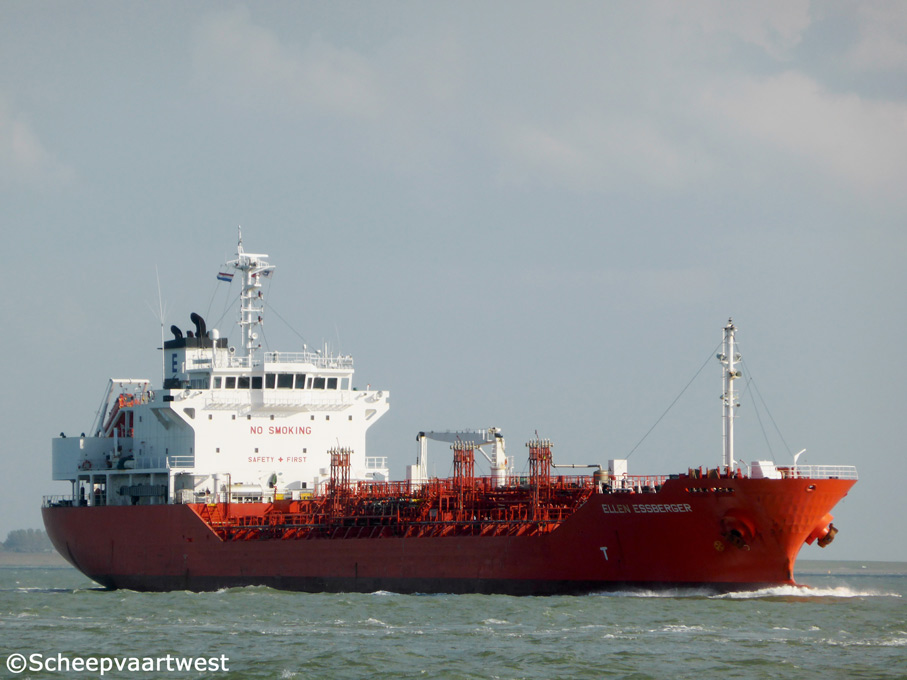

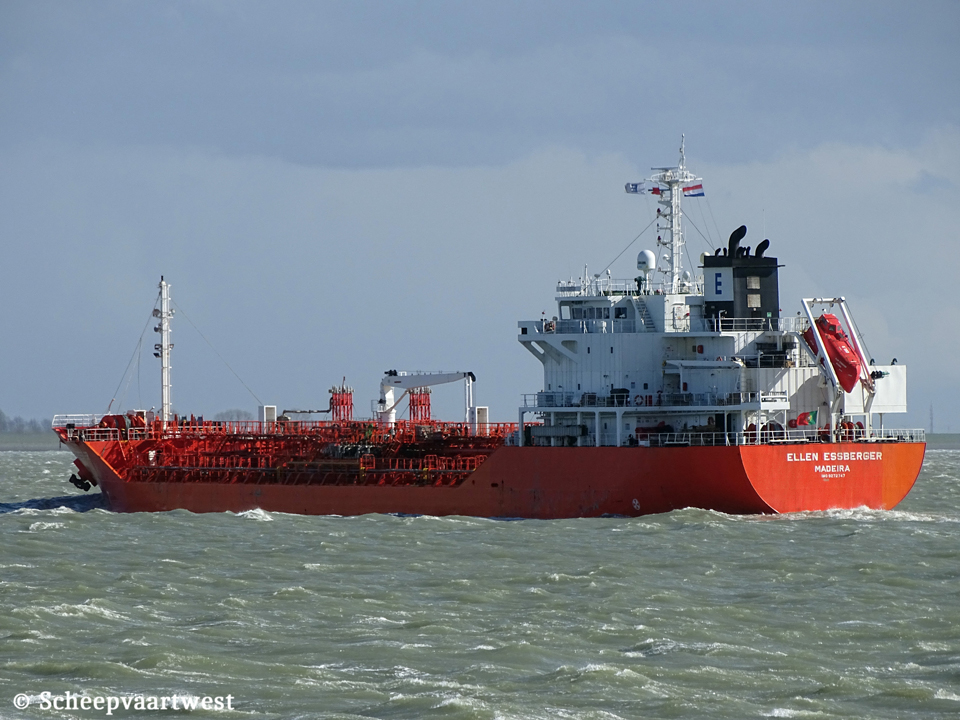

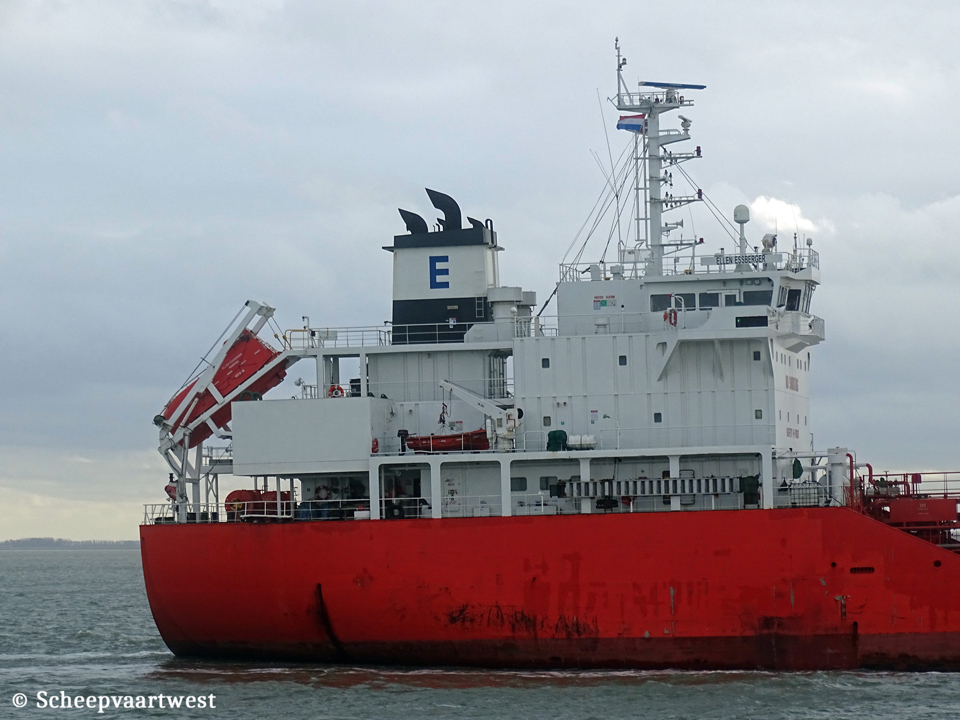

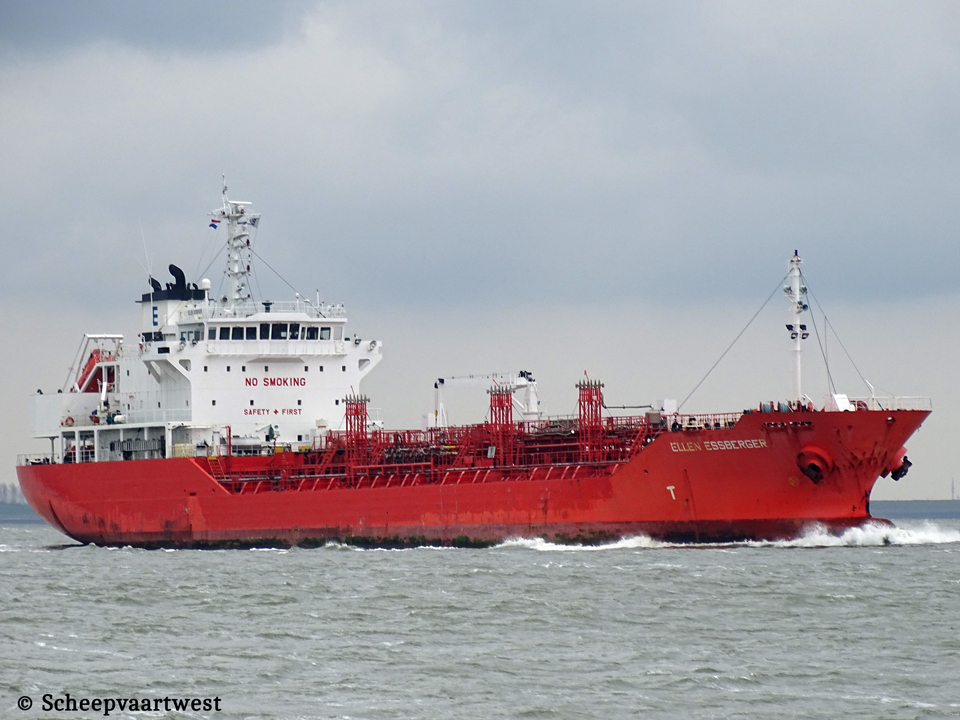

| Westerschelde 25 April 2016 |
 |
 |
 |
 |
 |
 |
|||||

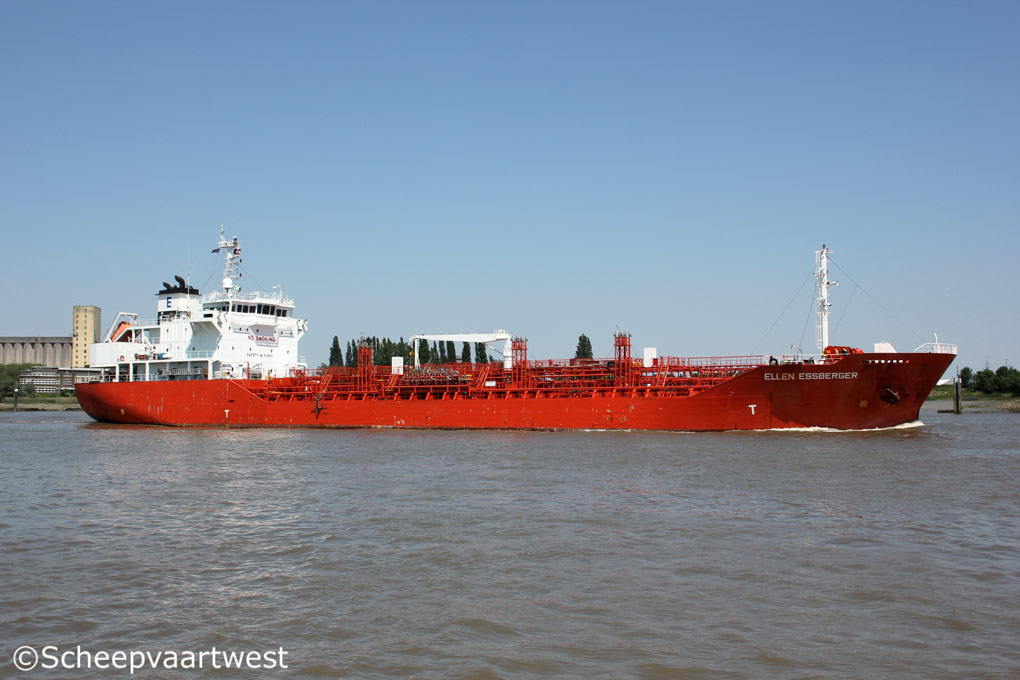

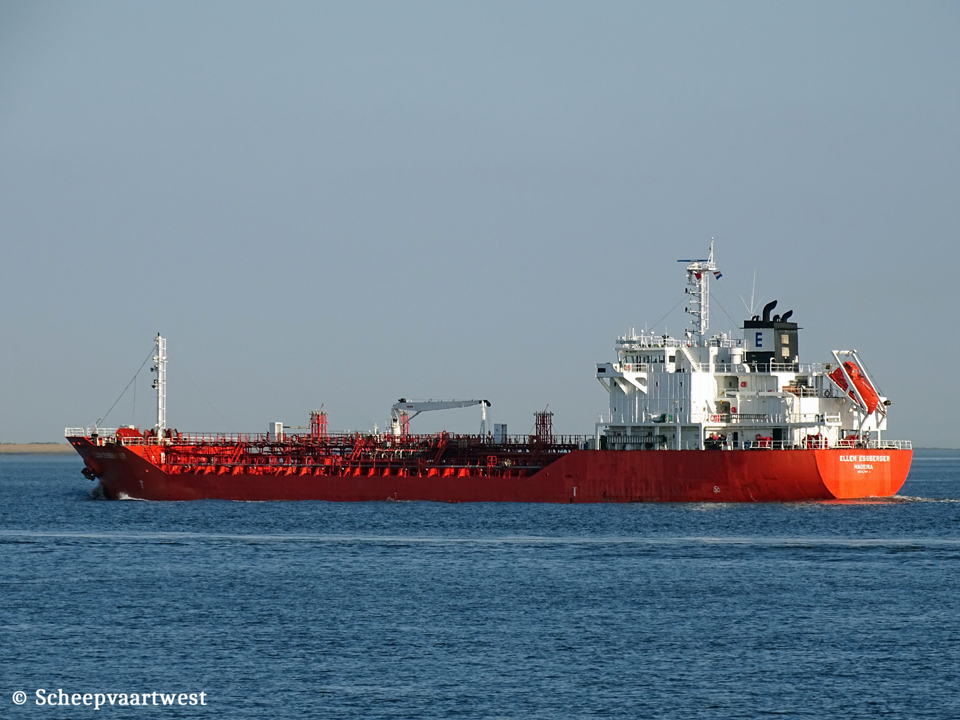

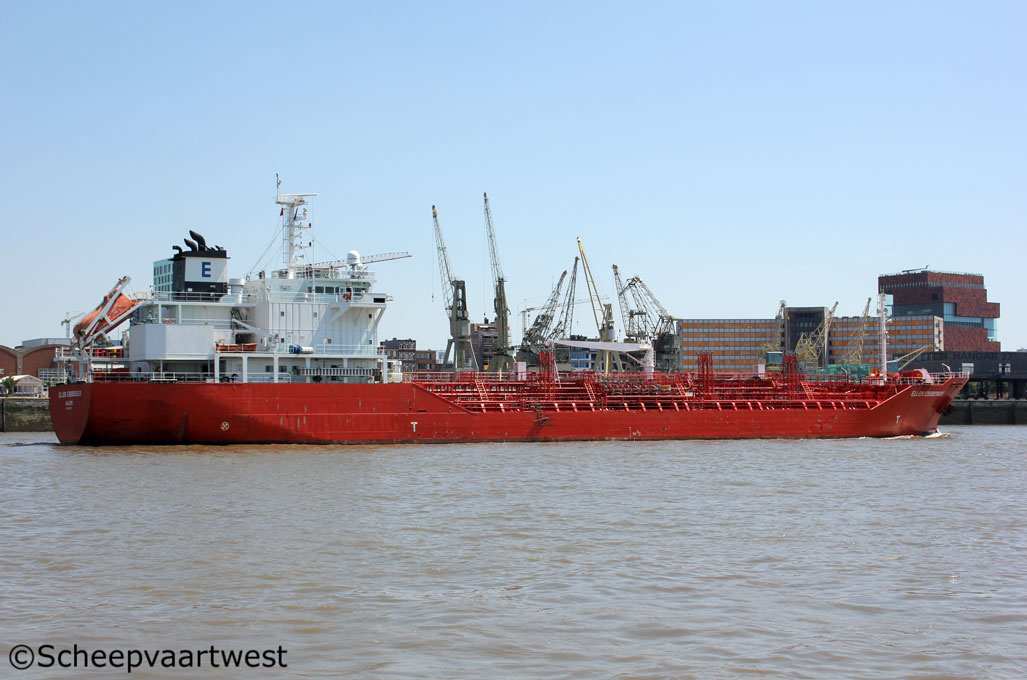

| Antwerpen 27/05/12 | Antwerpen 27/05/12 | Westerschelde 09/10/14 | Westerschelde 07/03/19 | Westerschelde 12/09/16 | Westerschelde 10/01/16 | |||||
|
Name |
ELLEN ESSBERGER |
|
Previous names |
02/2004 - 08/2008 Cape Elizabeth 08/2008 - 05/2011 UCT Elizabeth |
|
Type |
Chemical tanker / Oil tanker |
|
IMO-number |
9272747 |
|
Call sign |
CQLS |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flag |
2004 - 2007 Panama 2007 - 2013 Marshall Islands, Majuro - Call sing V7FO5 |
|
GT |
5.955 t |
|
DWT |
8.563 t |
|
NT |
2.533 t |
|
Length |
118,00 m overall 111,06 m registered |
|
Breadth |
18,80 m registered |
|
Draught |
7,36 m |
|
Keel to mast end |
34,40 m |
|
Forecastle |
12,76 m |
|
Bridge |
28,55 m |
|
Depth |
7,90 m moulded |
|
Speed |
14,0 knots |
|
Keel laid |
24/06/2003 |
|
Launch date |
28/09/2003 |
|
Date of completion |
07/02/2004 |
|
Builder |
Sasaki Shipbuilding Co., Ltd. 65-1, Kinoe, Osakikamijima-ch Toyota-gun 725-0401 Kinoe 34 Japan |
|
Yard number |
647 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 6S35MC-C - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.457 kW / 6.060 hp at 173,0 rpm Year of manufacture: 2003 Manufacturer: Hitachi Zosen Corporation Sakurajima Works 7-89, Nanko-kita 1-chome Suminoe-ku Osaka ,559-8559 Osaka-fu Japan |
|
Propellers |
1x Fixed pitch propeller - aft at 173 rpm |
|
Boilers |
1x Steam boiler, oil fired Heating surface: 10,0 m² 1x Steam boiler, exhaust gas heated Heating surface: 60,0 m² 1x Steam boiler, oil fired - 10,0 bar Heating surface: 81,0 m² Year of manufacture: 2003 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou 266300 Qingdao 120 People's Republic of China |
|
Electric installations |
3x Plant each 440 V - 700 kVA 1x Plant 440 V- 65 kVA |
|
Generators |
3x Yanmar 6N18AL-SV main diesel generatorsets each 700 kVA |
|
Emergency generator |
1x Deutz F6L912 diesel generatorset 65 kVA |
|
Compressed air receivers |
2x Receivers each 1.200 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar |
|
Bow thruster |
1x 475 kW, aft 1x 475 kW, forward |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity |
9.084 m³ |
|
Number of pumps |
10x Cargo pumps each 300 m³/h 4x Cargo pumps each 200 m³/h 4x Cargo pumps each 100 m³/h |
|
Tank capacities |
Fuel oil: 612 m³ Ballast: 3.552,55 m³ |
|
Anchor equipment |
3x Anchors weight each 3.540 kg Chain length: 522,50 m Diameter: 52 mm |
|
ISM & commercial manager |
John T. Essberger GmbH & Co. KG Palmaille 45 22767 Hamburg Federal Republic of Germany |
|
Previous manager |
2004 - 2012 Columbia Shipmanagement (Deutschland) GmbH, 22767 Hamburg - Federal Republic of Germany 2012 - 2014 “Ellen Essberger” Tankreederei GmbH & Co. KG |
|
Registered owner |
"ELLEN ESSBERGER" Tankreederei GmbH & Co. KG Palmaille 45 22767 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
08 November 2022 |
