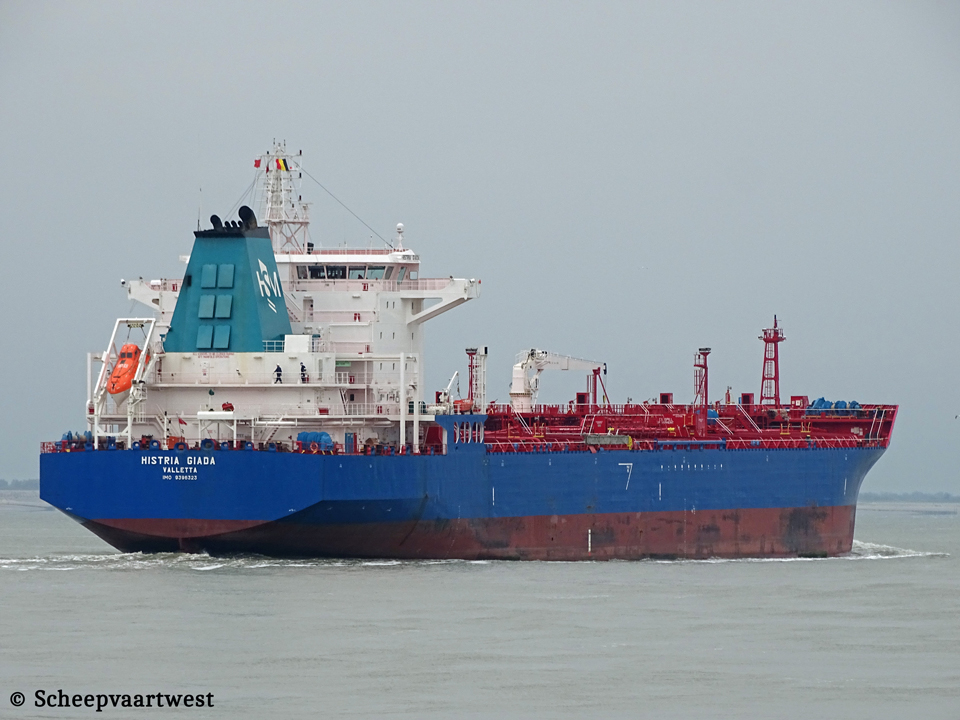

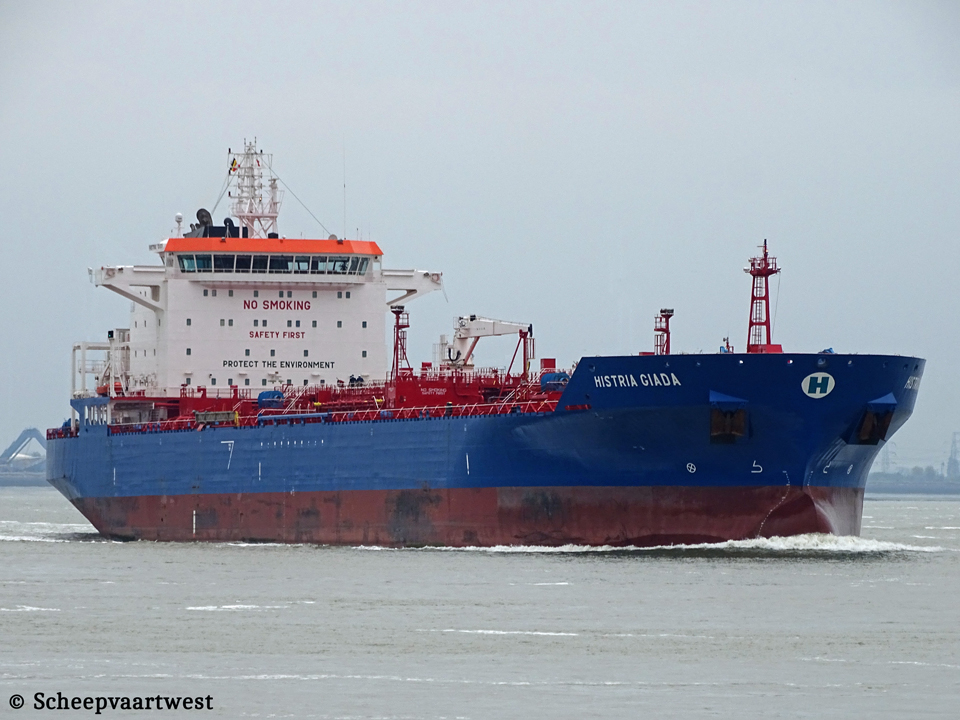

| Westerschelde 29 April 2018 |
 |
 |
|
| Westerschelde 29/04/18 | Westerschelde 29/04/18 | |
|
Name |
HISTRIA GIADA |
|
Type |
Chemical tanker |
|
IMO-number |
9396323 |
|
Call sign |
9HYX8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
25.804 t Suez: 26.357,40 t |
|
DWT |
Summer: 39.999 t Winter: 38.727 t |
|
NT |
11.369 t Suez: 25.314,09 t Panama: 21.516 t |
|
Displacement |
Summer: 49.678 t Winter: 48.406 t |
|
Length |
179,96 m overall 172,00 m between perpendiculars |
|
Breadth |
32,20 m extreme |
|
Draught |
Summer: 10,92 m Winter: 10.69 m |
|
Keel to masthead |
44,00 m |
|
Air draft |
Summer deadweight: 33,08 m Normal ballast: 26,80 m Lightship: 41,35 m |
|
Freeboard |
Summer: 5.592 mm Winter: 5.820 mm |
|
Depth |
16,50 m moulded |
|
Speed |
Ballast: Max: 15,0 knots - Economic: 12,5 knots Laden: Max: 14,0 knots / Economic: 12,0 knots |
|
Built |
2007 |
|
Keel laid |
07/06/2006 |
|
Launch date |
19/06/2007 |
|
Date of completion |
26/07/2007 |
|
Builder |
Santierul Naval Constanta S.A. Constantza Romania |
|
Yard number |
574 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MC-C - 6 cylinder 500 x 2.000 mm combustion engine 9.480 kW / 12.889 hp at 127,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, composite |
|
Generators |
3x Wärtsilä main diesel generatorsets each 880 kW |
|
Emergency generator |
1x Scania D9-95M diesel generatorset |
|
Bow thruster |
1.155 bhp |
|
Number of tanks |
10 |
|
Cargo tanks capacity 98% |
Seg#1: 7.106,6 m³ Seg#2: 9.866,1 m³ Seg#3: 10.110,8 m³ Seg#4: 10.109,8 m³ Seg#5: 9.627,3 m³ Total: 46.820,6 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity |
Tank 1: 395,9 m³ Tank 2: 5.85,7 m³ Total: 981,6 m³ |
|
Number of pumps |
2x Framo centrifugal ballast pumps each 800 m³/h 10x Framo centrifugal cargo pumps each 500 m³/h 2x Framo centrifugal cargo pumps each 200 m³/h 1x Framo centrifugal cargo pump 150 m³/h 1x Framo centrifugal cargo pump 80 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 62,35 m Bow to centre manifold: 89,94 m Stern to centre manifold: 90,02 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 800 mm Distance main deck to centre of manifold: 1.900 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 17.806,5 m³ Fuel oi: 1.079,8 m³ Gas oil: 424,0 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 73 mm |
|
Lifting equipment |
1x crane - SWL 10,0 t |
|
Crew size |
22 |
|
ISM & commercial manager |
Histria Shipmanagement Srl Strada Oborului nr.24 Constanța 900162 Romania |
|
Registered owner |
Lara Marine Co., Ltd. 198, Old Bakery Street Valletta Malta |
|
Latest data adjustment |
03 July 2023 |
