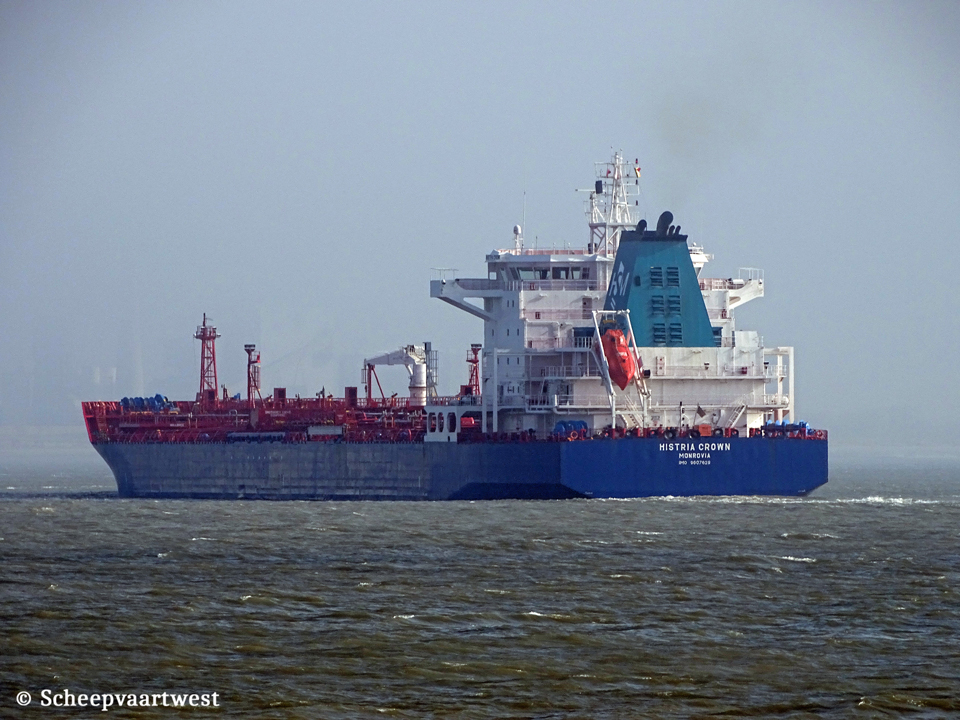

Histria Crown - IMO 9607629

Name

HISTRIA CROWN

Type

Chemical and oil tanker

IMO-number

9607629

Call sign

9HA5870

Flag

Malta

Port of registry

Valletta

Previous flags

04/2012 - 07/2023 Liberia, Monrovia - Call sign: D5BQ6

GT

25.864

Suez: 26.357,40

DWT

Summer: 39.999 t

Winter: 38.759 t

NT

11.369

Suez: 25.304,13

Panama: 21.516

Displacement

Summer: 49.610 t

Winter: 48.46 t

Length

179,92 m overall

172,00 m between perpendiculars

Breadth

32,23 m extreme

Draught

Summer: 10,92 m

Winter: 10,69 m

Keel to mast end

44,00 m

Air draft

Summer deadweight: 33,07 m

Normal ballast: 36,80 m

Lightship: 41,36 m

Freeboard

Summer: 5.599 mm

Winter: 5.816 mm

Depth

16,50 m moulded

Speed

Ballast:

Max: 15,0 knots - Economic: 12,5 knots

Laden:

Max: 14,0 knots - Economic: 12,0 knots

Build

2012

Keel laid

09/11/2010

Launch date

25/02/2012

Date of completion

12/04/2012

Builder

Santierul Naval Constanta S.A.

Constantza

Romania

Yard number

586

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6S50MC-C - 6 cylinder combustion engine 8.230 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, composite

Generators

3x STX/MAN 6 L23/30H main diesel generatorsets each 880 kW

Emergency generator

1x Sisu 645 DSBAG diesel generatorset

Bow thruster

1x 1.155 bhp

Number of cargo tanks

10 + 2 slop tanks

Cargo tank capacity 98%

Seg#1: 7.106,60 m³ - 1W

Seg#2: 9.866,00 m³ - 2W

Seg#3: 10.110,80 m³ - 3W

Seg#4: 10.109,80 m³ - 4W

Seg#5: 9.627,20 m³ - 5W

Total: 46.820,4 m³

Slop tanks capacity

Slop 1: 395 m³

Slop 2: 586 m³

Total: 981 m³

Number of pumps

2x Framo ballast pumps each 650 m³/h

10x Framo cargo pumps each 500 m³/h

2x Framo cargo pumps each 200 m³/h

1x Framo cargo pump each 150 m³/h

1x Framo cargo pump each 80 m³/h

Manifolds

• Distance bridge front to centre of manifold: 62,35 m

• Bow to centre manifold: 89,94 m

• Stern to centre manifold: 90,02 m

• Distance between cargo manifold centres: 2.000 mm

• Distance ships rail to manifold: 4.600 mm

• Distance manifold to ships side: 4.600 mm

• Top of rail to centre of manifold: 800 mm

• Distance main deck to centre of manifold: 1.900 mm

• Spill tank grating to centre of manifold: 900 mm

Tank capacities

Ballast: 17.806,5 m³

Fuel oil: 1.049,8 m³

Gas oil: 477,1 m³

Anchor equipment

Length: 660,00 m

Diameter: 73 mm

Lifting equipment

1x Crane - SWL 10,0 t

ISM & commercial manager

Histria Shipmanagement S.R.L.

24, Oborului Street

900162, Constanta

Romania

Registered owner

Crown Sea Marine Inc.

80, Broad Street

Monrovia

Liberia

Latest data adjustment

29 January 2025
