| Vlissingen 14 March 2018 |
 |
|
| Westerschelde 26/02/18 | |
|
Name |

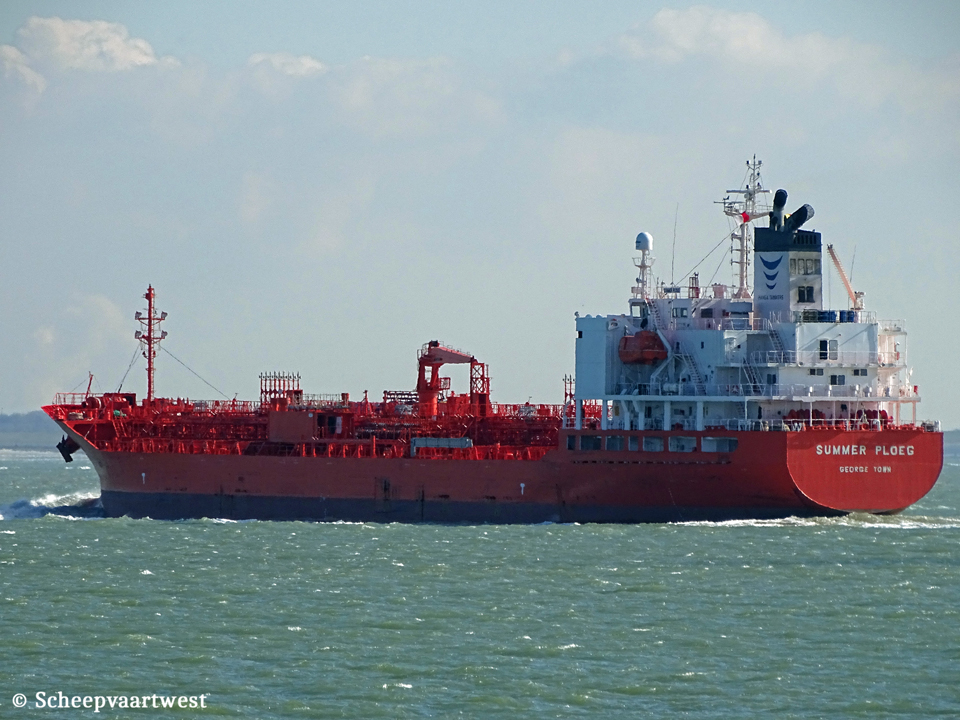

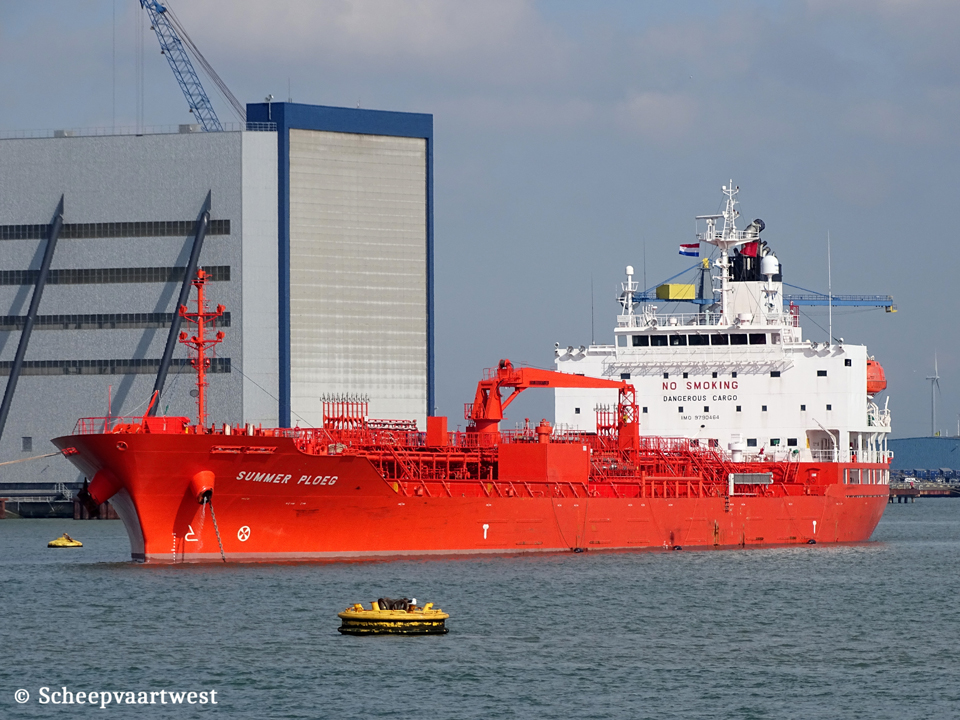

SUMMER PLOEG |
|
Type |
Oil & Chemical tanker |
|
IMO-number |
9790464 |
|
Call sign |
Cayman Islands |
|
Flag |
ZGFI8 |
|
Port of registry |
George Town |
|
GRT |
12.082 t |
|
DWT |
19.998 t |
|
NRT |
6.319 t |
|
Length |
146,50 m overall |
|
Breadth |
24,00 m moulded |
|
Draught |
Summer: 9,77 m Ballast: 5,64 m |
|
Moulded L x B x D |
138,00 x 24,00 x 13,10 m |
|
Registered L x B x D |
138,44 x 24,00 x 13,10 m |
|
Keel to mast end |
33,57 m |
|
Air draft |
In ballast: 31,11 m Loaded: 28,80 m |
|
Freeboard |
Summer: 3.364 mm |
|
Depth |
13,10 m moulded |
|
Speed |
Service: 12,5 knots max: 15,1 knots |
|
Built |
2017 |
|
Keel laid |
21/12/2015 |
|
Launch date |
16/12/2016 |
|
Date of completion |
04/04/2017 |
|
Builder |
Fukuoka Shipbuilding Co Ltd. Fukuoka Japan |
|
Yard number |
F-1314 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
MAN-B&W 6S42MC7.1 - 2 stroke single acting 6 cylinder 420 x 1.764 mm combustion engine 4.440 kW / 6.036 hp at 117,0 rpm Manufacturer: Makita Corporation - Japan |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 390 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,93 MPa Evaporation: 15,95 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW main diesel generatorsets each 560 kW |
|
Bow thruster |
1x 640 kW / 871,5 bhp |
|
Number of tanks |
20 + 2 slop tanks |
|
Cargo tank capacity 98% |
Liquid: 21.840,61 m³ |
|
Slop tank capacity 98% |
1.161,65 m³ |
|
Number of pumps |
12x Centrifugal cargo pumps each 300 m³/h 8x Centrifugal cargo pumps each 200 m³/h 2x Horizontal centrifugal ballast pumps each: 250 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 75,60 m Distance from stern to centre manifold: 70,90 m Distance between manifolds: 400 mm Distance from ship side to manifold: 4,40 m Distance from deck / centre of manifold: 2,33 m |
|
Tank capacities |
Fuel Oil: 759,74 m³ Diesel Oil: 233,53 m³ Fresh water: 232,72 m³ Ballast: 6,881,15 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t |
|
Crew size |
25 |
|
Commercial manager |
Hansa Tankers AS Kalfarveien 57A 5022 Bergen Norway |
|
ISM manager |
Diamond Ship Management Pte. Ltd. |
|
Registered owner |
Inventor Chemical Tankers AS - Care of Hansa Tankers AS Bergen Norway |
|
Renamed |
09/2023 Swan Atlantic Cayman Islands, George Town - Call sign: ZGFI8 Owner: Inventor Chemical Tankers AS - Care of Hansa Tankers AS, Bergen - Norway Manager: Diamond Ship Management Pte. Ltd., Singapore - Republic of Singapore |
|
Latest data adjustment |
06 October 2023 |
