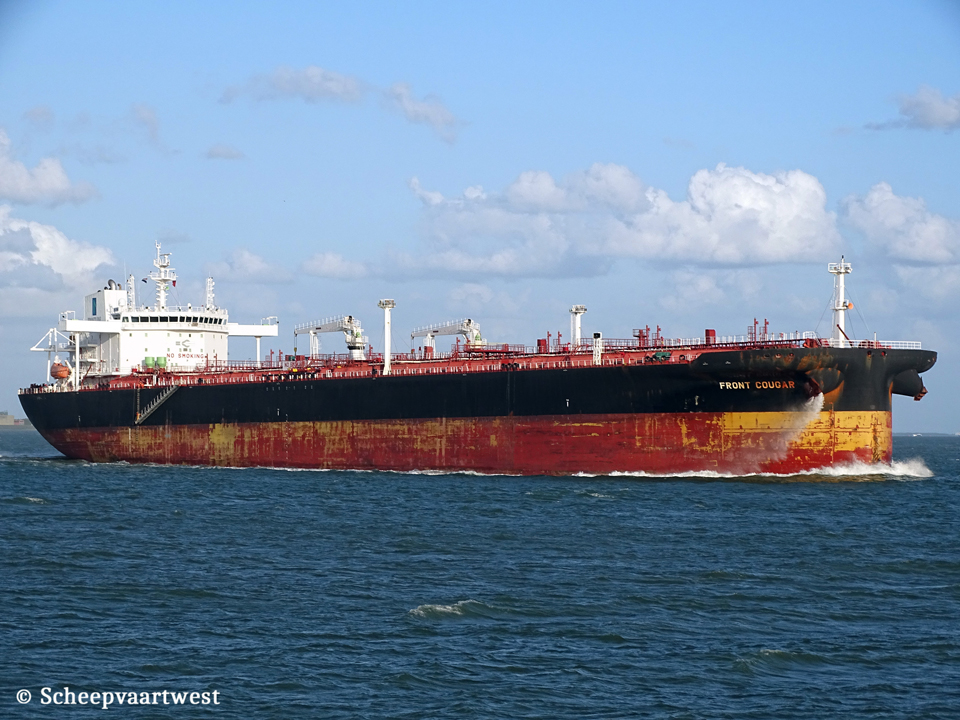

Front Cougar IMO 9686649 01
Westerschelde 19 August 2019

Front Cougar IMO 9686649 02
Westerschelde 19/08/19


Name

FRONT COUGAR

Type

Crude oil tanker - Aframax

IMO-number

9686649

Call sign

V7NP6

Flag

Marshall islands

Port of registry

Majuro

GT

64.018 t

Suez: 66.161,84 t

DWT

109.896 t

NT

34.010 t

Suez: 60.383,61 t

Length

249,50 m overall

245,40 m between perpendiculars

Breadth

44,00 m moulded

Draught

Summer: 14,90 m

Keel to mast end

50,52 m

Freeboard

6.825 mm

Depth

21,50 m

Speed

Service: 14,5 knots

Max: 15,7 knots

Built

2016

Keel laid

03/04/2015

Launch date

16/08/2015

Delivery date

21/03/2016

Builder

CSSC Offshore And Marine Engineering (Group) Company Limited

No. 40 Fang Cun Road, South Guangzhou

Guangzhou 510382

China

Yard number

13121002

Hull material

High Strength Steel

Hull type

Double Hull

Main engine

1x CMD/MAN-B&W 6G60ME-C9.2 - 2 stroke 6 cylinder 600 x 2.790 mm combustion engine Mcr 11.494 kW / 15.627 hp at 77,0 rpm

Manufacturer: CSSC-MES Diesel Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Wartsila Cme Zhenjiang Propeller Co., Ltd.

Boilers

2x Auxiliary boiler - 16,0 MPa

1x Composite boiler - 7,0 MPa

Manufacturer: Jiujiang Haitian Equipment Manufacture Co., Ltd.

Generators

3x Main diesel generatorsets each 900kW

Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd.

Number of tanks

14

Cargo tank capacity

Liquid: 129.386,9 m³

Number of pumps

3x Cargo pumps each 3.000 m³/h

Tank capacities

Ballast: 41.781,70 m³

Lub oil: 221,30 m³

Diesel oil: 326,80 m³

Fresh water: 870,10 m³

Fuel oil: 3.606,10 m³

Lifting equipment

1x Hose handling crane Port - SWL 15,0 t

1x Hose handling crane Starboard - SWL 15,0 t

Manufacturer: Zhenjiang Marine Auxiliary Machinery Works

Crew

30

Commercial manager

Frontline Management AS

Bryggegata 3

0250 Oslo

Norway

ISM manager

Thome Ship Management Pte Ltd.

Registered owner

Front Cougar Inc.

Care of Frontline Management AS

Bryggegata 3

0250 Oslo

Norway

Latest data adjustment

01 January 2024
