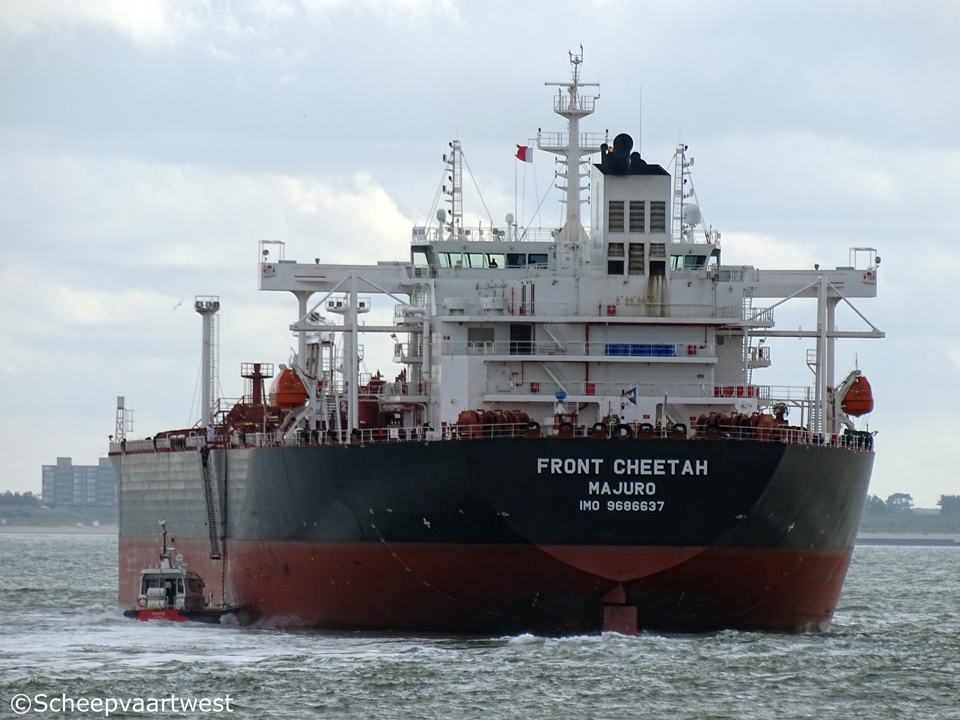

Front Cheetah - IMO 9686637

Westerschelde 30 June 2016

Name

FRONT CHEETAH

Type

Crude oil product tanker

IMO-number

9686637

Call sign

V7PA4

Flag

Marshall Islands

Port of registry

Majuro

GT

64.018 t registered

Suez: 66.161,84 t

DWT

Summer: 112.950 t

NT

34.010 t registered

Suez: 60.383,61 t

Length

249,99 m overall

245,40 m between perpendiculars

Breadth

44,00 m moulded

Draught

14,90 m

Freeboard

6.807 mm

Depth

21,50 m moulded

Speed

15,9 Knots

Built

2016

Keel laid

03.04.2015

Launch date

16.08.2015

Delivery date

26.01.2016

Builder

CSSC Offshore and Marine Engineering (Group) Company Limited

China

Yard number

13121001

Hull material

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 10

Oil tight: 1

Main engine

1x MAN-B&W-CSSC-MES 6G60ME-C9.2 - 2 stroke 6 cylinder 600 x 2.790 mm combustion engine 11.494 kW at 77,0 rpm

Manufacturer: CSSC-MES Diesel Co., Ltd.

Propellers

1x Fixed propeller

Manufacturer:Wärtsilä Cme Zhenjiang Propeller Co., Ltd.

Boilers

2x Auxiliary boiler - 18,0 bar

1x Composite boiler - 8,0 bar

Manufacturer: Jiujiang Haitian Equipment Manufacture Co., Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: Zhenjiang China Xiandai Generating Co., Ltd.

Number of cargo tanks

14

Cargo tank capacity

129.386,9 m³

Number of tanks

Ballast: 16

Fuel oil: 11

Lubricating oil: 9

Waste water: 4

Fresh water: 4

Sludge: 3

Chain: 2

Diesel oil: 2

Tank capacities

Diesel Oil: 326,8 m³ / 294,12 t

Freshwater: 870,1 m³

Fuel Oil: 3.606,1 m³ / 3.573,64 t

Lube Oil: 221,3 m³ / 199,17 t

Tank Ballast: 41.781,7 m³ / 42.826,24 t

Lifting equipment

1x Hose handling crane port - SWL 15,0 t

1x Hose handling crane starboard - SWL 15,0 t

Manufacture: Zhenjiang Marine Auxiliary Machinery Works

Manager

Front Cheetah Inc.
80 Broad Street
Monrovia
Liberia

Operator

Thome Ship Management Pte Ltd.
Republic of Singapore

Registered owner

Front Cheetah Inc.

Latest data adjustment

06 September 2017
