| Westerschelde 19 August 2019 |
|
Name |

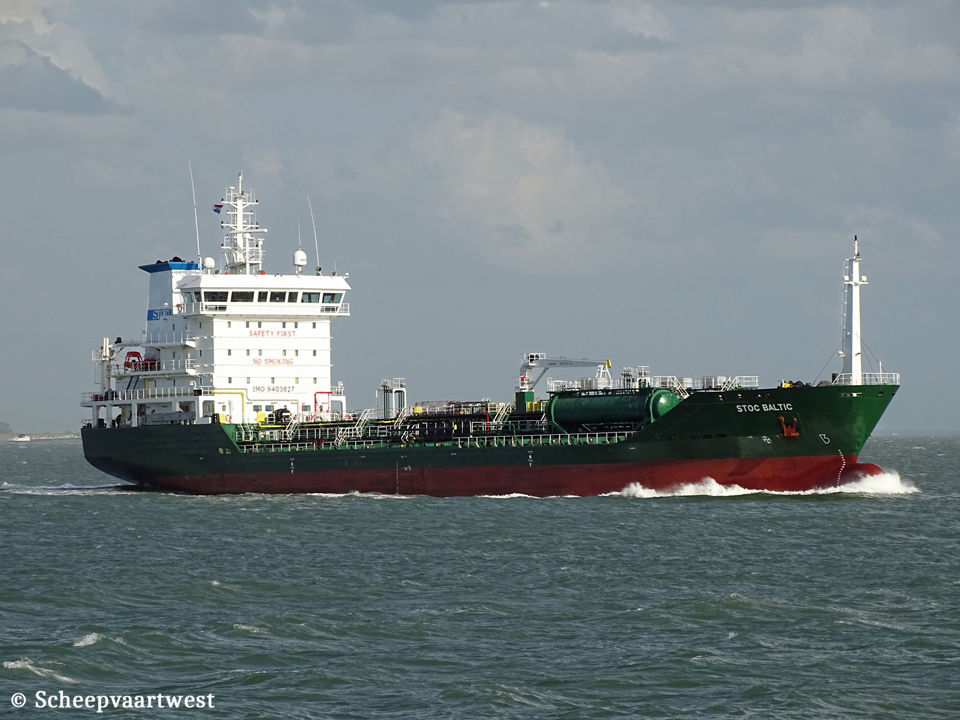

STOC BALTIC |
|
Previous names |
2009 - 2019 Purple Gem |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9403827 |
|
Call sign |
5BFX5 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2009 - 2019 Malta, Valletta - Call sign: 9HZO9 |
|
GT |
4.859 t |
|
DWT |
6.824 t |
|
NT |
2.289 t |
|
Length |
119,10 m overall 111,60 m between perpendiculars |
|
Breadth |
16,90 m |
|
Draught |
6,76 m |
|
Keel to mast end |
36,14 m |
|
Depth |
8,40 m |
|
Speed |
14,5 knots |
|
Built |
2009 |
|
Keel laid |
27/12/2006 |
|
Launch date |
10/02/2008 |
|
Date of completion |
17/04/2009 |
|
Builder |
Tuzla Shipbuilding Industry Istanbul Turkey |
|
Yard number |
36 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MaK 8M32C - 4 stroke 8 cylinder 320 x 480 mm combustion engine 3.840 kW / 5.221 hp at 600 rpm Built: 2007 Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 154 rpm |
|
Boilers |
1x CHR 47,60 m² - 7,0 bar 1x CHR 21,00 m² - 5,0 bar 2x CHO 65,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 440 V Lighting voltage: 440 V Frequency: 60 Hz |
|
Shaft generator |
1x 1.400 kVA - 1.120 kW |
|
Generators |
3x Main diesel generatorsets each 606 kVA - 485 kW - 700 hp |
|
Emergency generator |
1x Diesel generatorset 187 kVA - 150 kW - 257 hp |
|
Bow thruster |
1x 444 kW |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
8.020,12 m³ |
|
Number of pumps |
12x cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel: 370 m³ |
|
Crew size |
19 |
|
Commercial manager |
Swede Chem Tankers Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
ISM manager |
Crew Chart Ship Management AB Gruvgatan 35A SE-421 30 Vastra Frolunda Sweden |
|
Registered owner |
Monemia Shipping Co Ltd. Care of Swede Chem Tankers AB Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
Latest data adjustment |
02 January 2024 |
