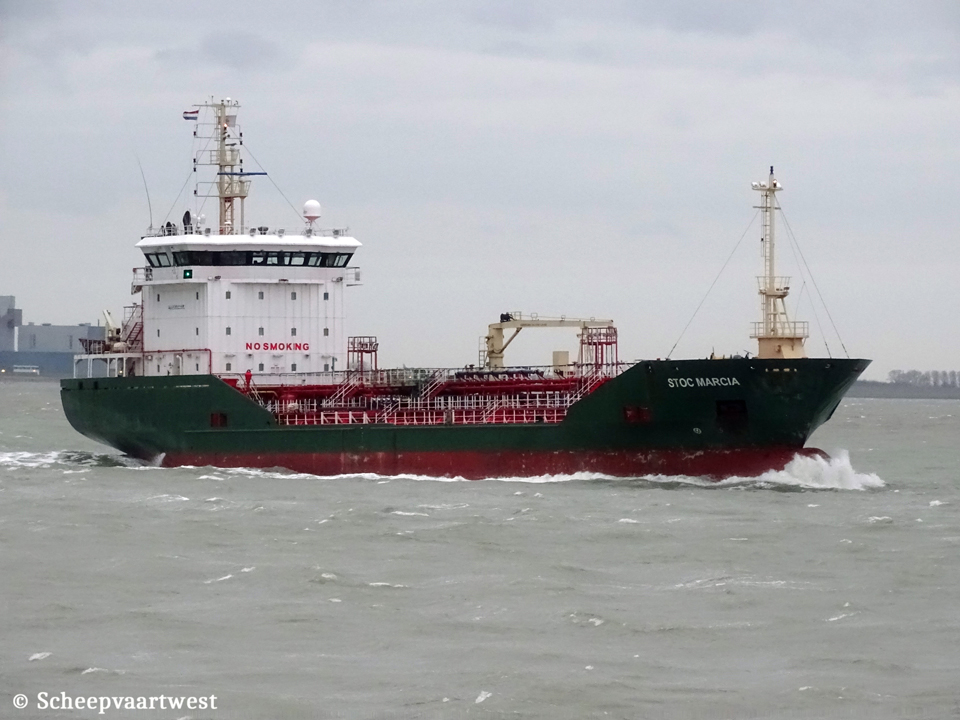

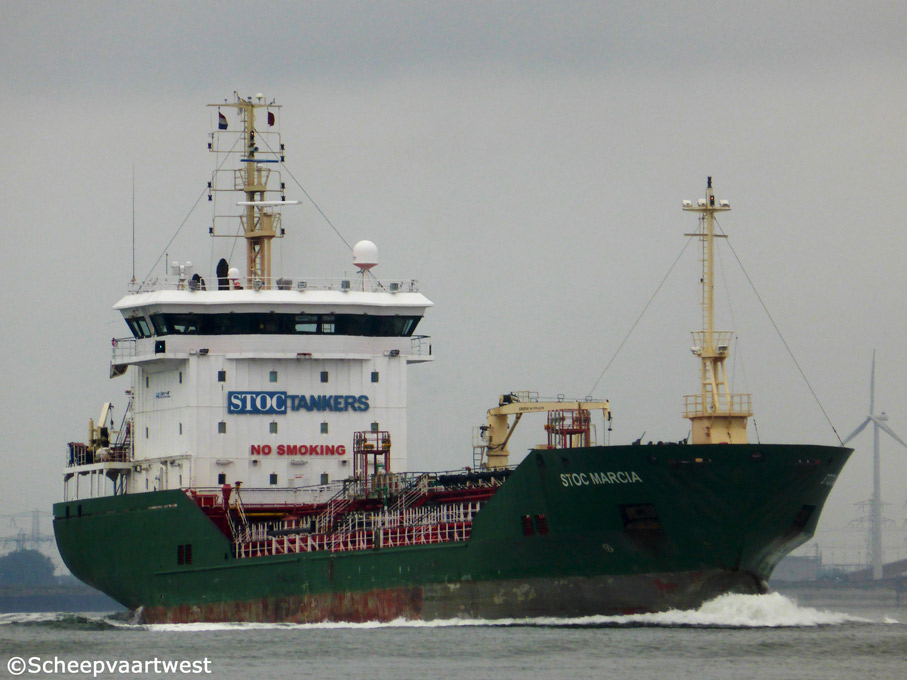

| Westerschelde 19 June 2014 |
 |
 |
 |
 |
 |
 |
|||||

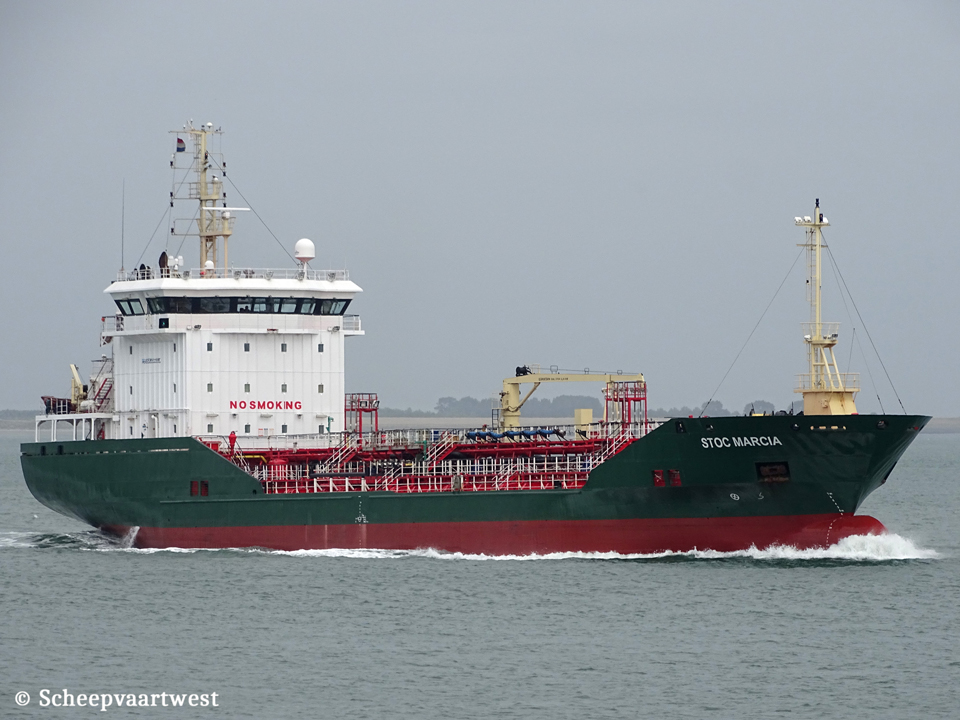

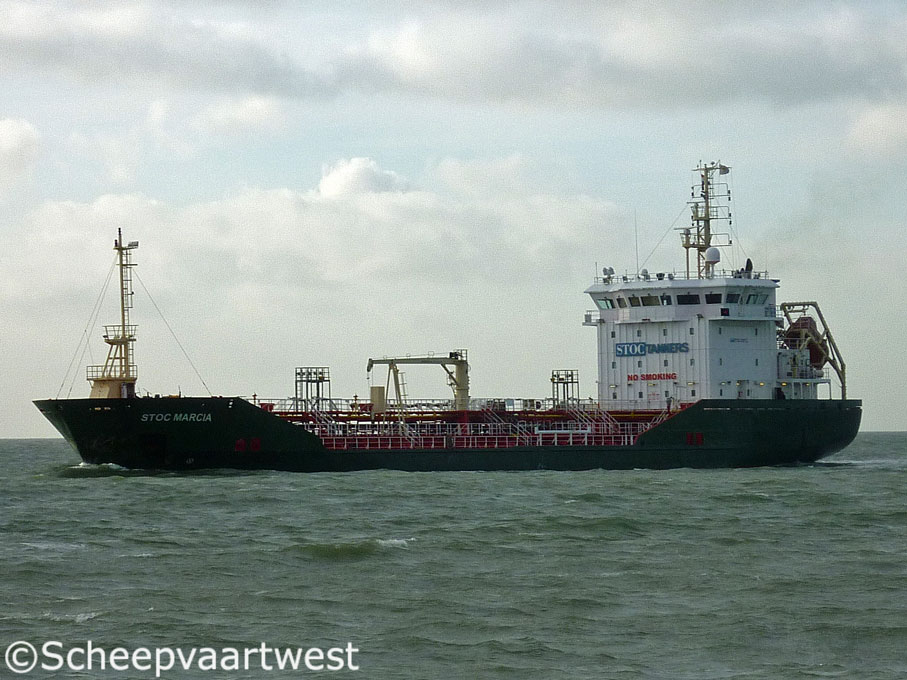

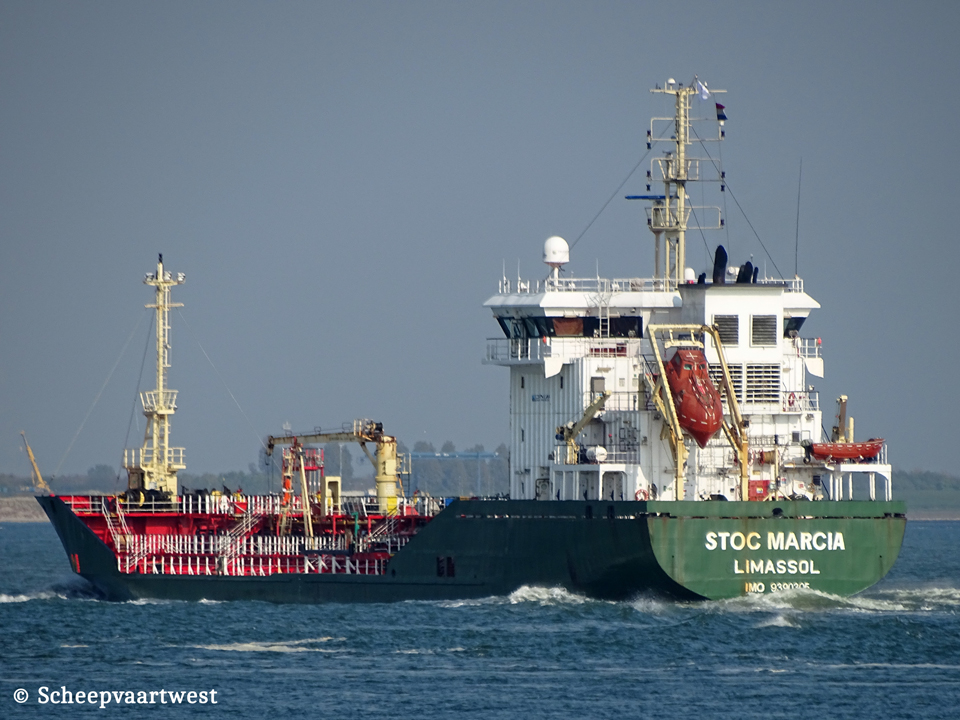

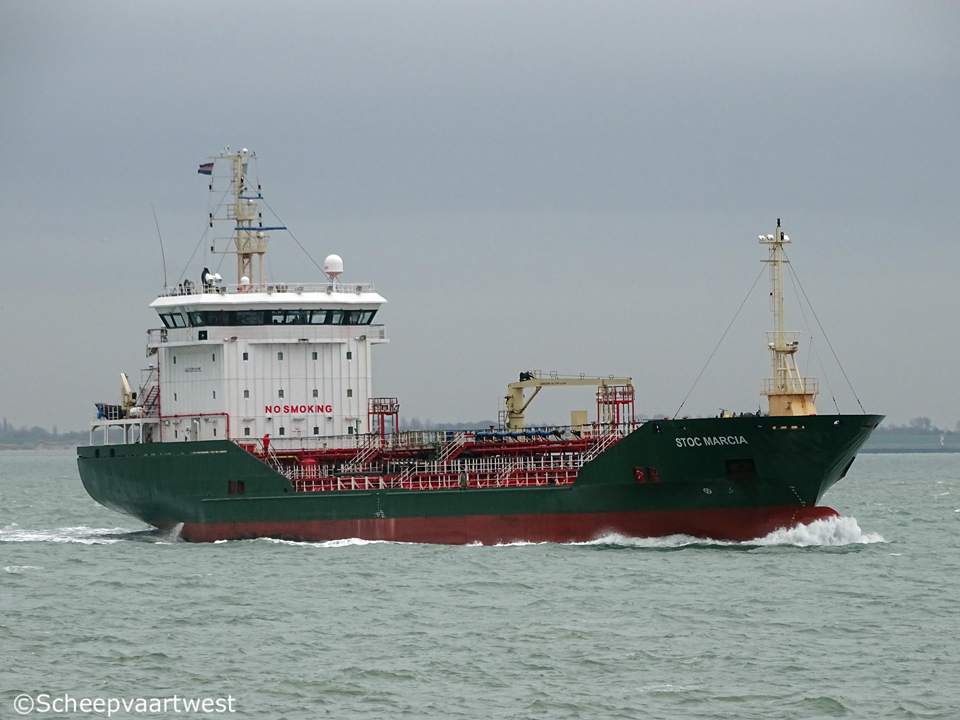

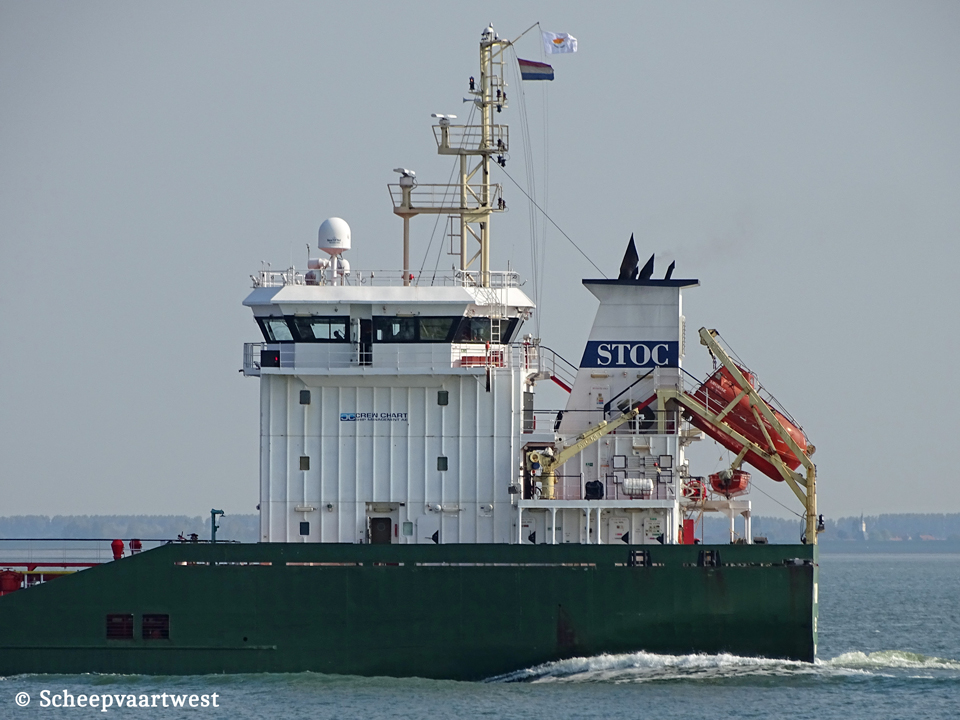

| Westerschelde 25/11/11 | Westerschelde 25/11/11 | Westerschelde 14/11/17 | Westerschelde 14/11/17 | Westerschelde 24/11/20 | Westerschelde 15/02/20 | |||||
 |
 |
 |
||||||||

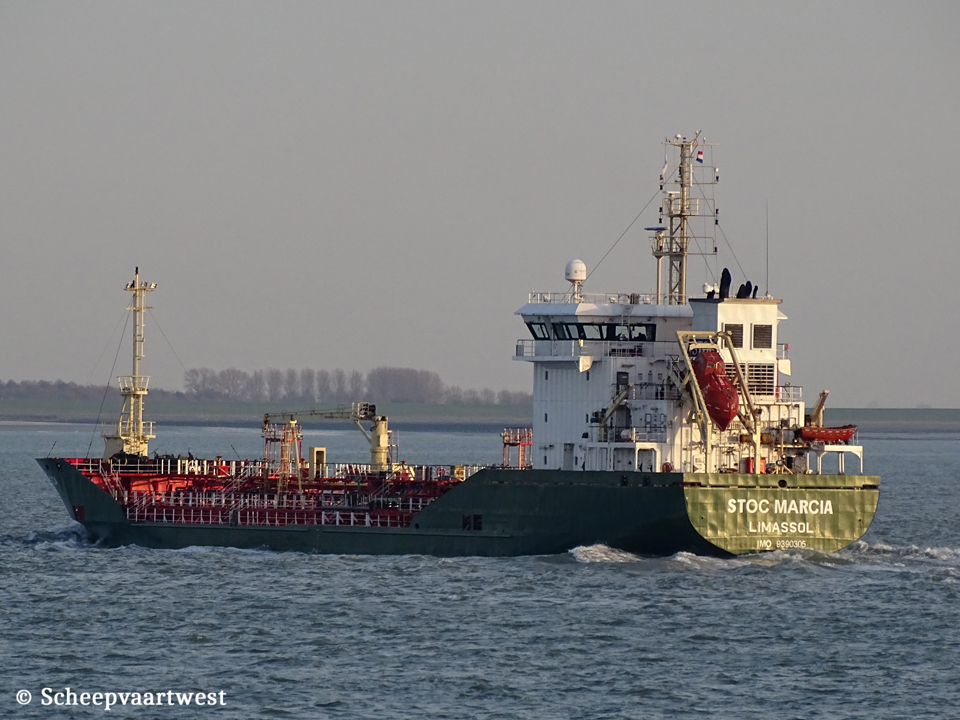

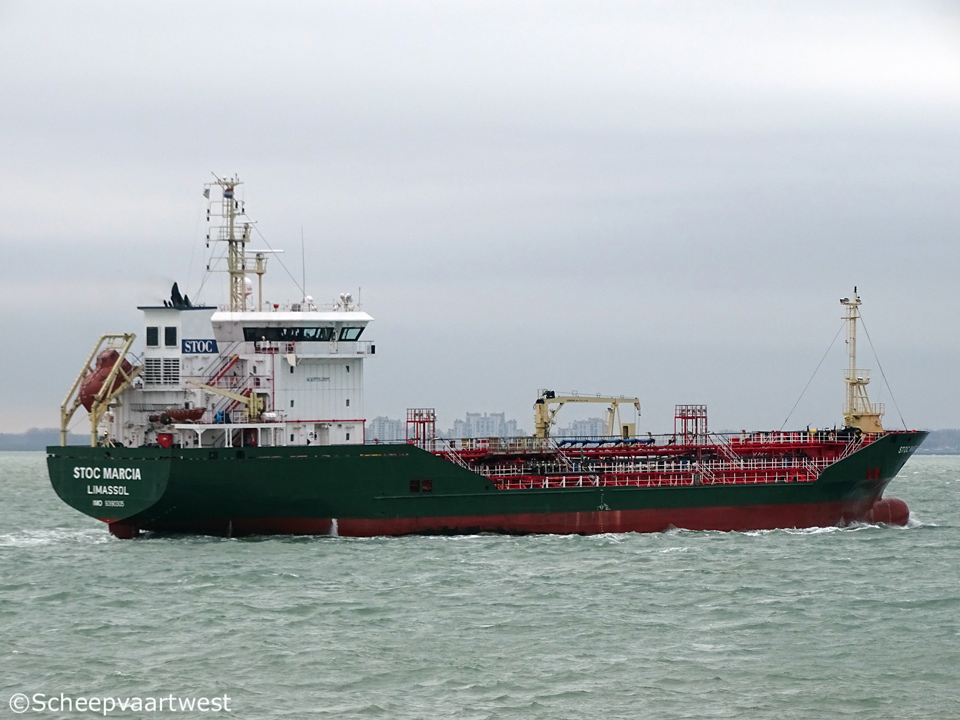

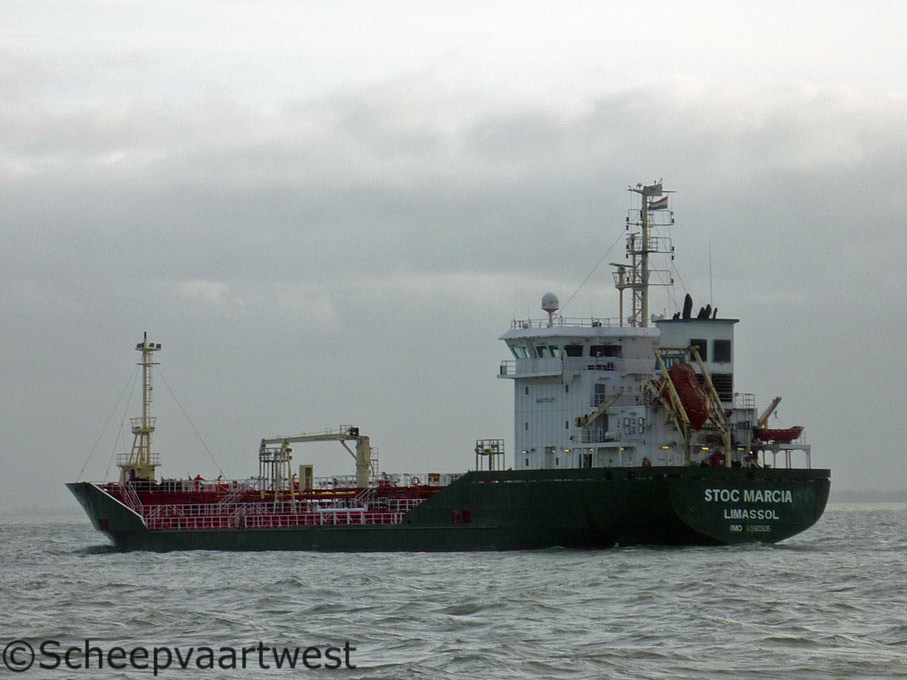

| Westerschelde 29/04/17 | Westerschelde 29/04/17 | Westerschelde 01/07/17 | ||||||||
|
Name |
STOC MARCIA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9390305 |
|
Call sign |
C4XG2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
3.219 t |
|
DWT |
4.634 t |
|
NT |
1.384 t |
|
Length |
99,91 m overall 93,09 m between perpendiculars |
|
Breadth |
15,00 m extreme |
|
Draught |
6,05 m |
|
Keel to mast end |
31,00 m |
|
Freeboard |
1.417 mm |
|
Depth |
7,40 m moulded |
|
Speed |
13,5 knots |
|
Built |
2007 |
|
Date of completion |
14/06/2007 |
|
Builder |
Ceksan Tersanesi (Ceksan Gemi Insa Celik Konst. San Ve Tic. A.S) Tuzla - Istanbul Turkey |
|
Yard number |
30 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Wärtsilä 6L32 - 4 stroke 6 cylinder 320 x 400 mm combustion engine 3.000 kW / 4.076 hp at 750 rpm |
|
Propeller |
1 |
|
Rudder |
Rolls-Royce Tenfjord, SR662-FCP |
|
Boilers |
2x 47,30 m² - 10,0 bar |
|
Shaft generator |
1x Stamford 450 kW |
|
Generators |
3x Volvo Penta D-12 AUX diesel engines each 324 kW connected with 3 generators each 463 kVA |
|
Emergency generator |
1x Volvo Penta TAMD 74A RC diesel generatorset 150 kW |
|
Bow thruster |
1x Rolls-Royce Kamewa Ulstein tunnel thruster 345 kW |
|
Cargo capacity |
4.951 m³ |
|
Tank configuration |
2x 5 Cargo tanks divided P & S by centre bulkhead including 2 Slop Tanks P & S in the front. 18x Segregated ballast tanks. 4x Fresh water tanks 4x Fuel oil tanks 3x Diesel oil tanks 4x Lub oil tanks 2x Thermal oil tanks 10x Other tanks |
|
Cargo pumps |
10x Hamworthy Svanehoj deepwell pumps: Loading capacity: 800 m³ Discharge capacity: 600 m³ |
|
Cargo heating |
Thermal oil, S-MAN AB |
|
Tank cleaning |
Scanjet SC40RT fixed twin nozzle machines |
|
Tank capacities |
Fuel oil: 247 m³ Diesel oil: 65 m³ Fresh water: 118 m³ Ballast tank: 2.042 m³ |
|
Windlass & mooring winches |
2x Anchor windlasses - Electro-hydraulic 2x Mooring winches aft - Electro-hydraulic |
|
Lifting equipment |
Deck cranes: 1x Electro-Hydraulic hose handling crane - SWL 3.0 t 1x Electro-hydraulic provision crane - SWL 0,5 t |
|
Accommodation |
Living Quarters situated aft with a mess room and a day room along with 12 single cabins with separate toilets |
|
Commercial manager |
Swede Chem Tankers Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
ISM manager |
Crew Chart Shipmanagement AB Gruvgatan 35A SE-421 30 Vastra Frolunda Sweden |
|
Registered owner |
Stoc Mare Ltd. Care of Swede Chem Tankers AB Styrmansgatan 4 SE-114 54 Stockholm Sweden |
|
Latest data adjustment |
06 March 2022 |
