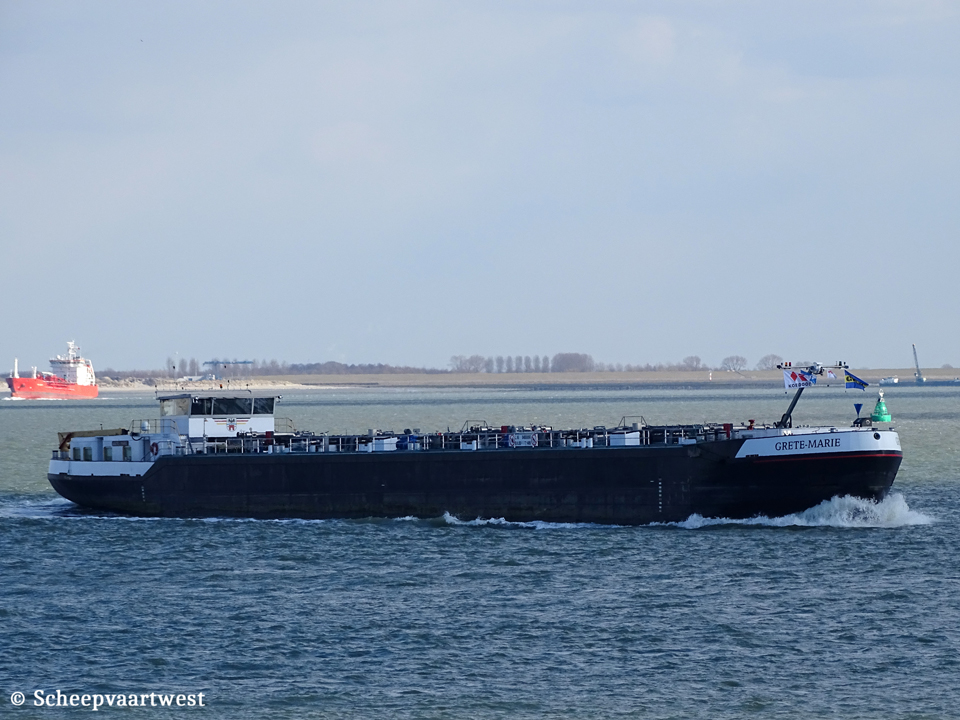

| Westerschelde 27 February 2018 |
|
Name |
GRETE-MARIE |
|
Type |
Chemical tanker, Inland waterways |
|
ENI-number |
04808990 |
|
Call sign |
DF6521 |
|
Flag |
Germany |
|
Port of registry |
Schmachtenhagen |
|
Tonnage |
1.499 t |
|
Length |
86,00 m |
|
Breadth |
9,50 m |
|
Draught |
2,95 m |
|
Depth |
4,50 m |
|
Built |
2011 |
|
Keel laid |
30/05/2010 |
|
Date of completion |
16/03/2011 |
|
Builder Casco |
Kladovo Shipyard Kladovo Serbia |
|
Builder completion |
Trico Shipyard Rotterdam The Netherlands |
|
Yard number |
1005 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S12R-C2MPTK combustion engine 940 kW / 1.278 hp at 1.600 rpm |
|
Gearbox |
1x Masson Marine MM W5200 - Reduction 4.962:1 |
|
Propellers |
1x 4 Blades - Diameter 1.650 mm |
|
Generators |
1x John Deere 6125 AFM75 engine connected with Stamford HCM 534C generator 452 kVA 1x John Deere 6068 TF275 engine connected with Stamford UCM 274E generator 90 kVA 1x John Deere 4045 TFU70 engine connected with Stamford UCM 224F generatorset 63 kVA |
|
Bow thruster |
1x John Deere Verhaar Omega-Jet - 383 hp at 1.780 rpm |
|
Caro tank capacity |
1.830 m³ |
|
Number of pumps |
2x Bornemann type W3 cargo pumps each 250 m³/h powered by ABB electric motors each 55 kW 1x Bornemann type W7 ballast pump 300 m³/h powered by ABB electric motors 34 kW 1x Bornemann W3 slop pump 25 m³/h powered by ABB electric motors 7,5 kW |
|
Operator |
Cefo Hamburg Germany |
|
Owner |
Alfred Gündel Binnenschiffahrt Schmachtenhagen Germany |
|
Latest data adjustment |
10 March 2024 |
