| Merksem, Belgium 01 July 2013 |
 |
| Deurne, Belgium 22/05/13 |
|
Name |

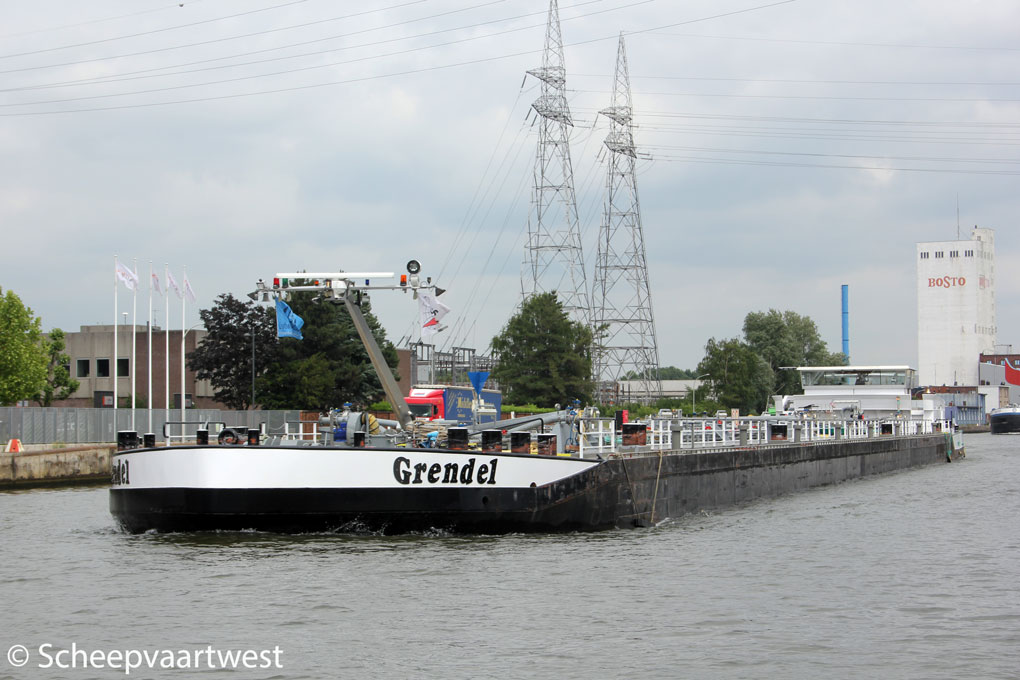

GRENDEL |
|
Type |
Inland tanker |
|
ENI-number |
04804130 |
|
Call sign |
DB3320 |
|
Flag |
Germany |
|
Port of registry |
Schmachtenhagen |
|
Tonnage |
2.363,931 t |
|
Length |
109,90 m |
|
Breadth |
11,36 m |
|
Draught |
3,00 m |
|
Depth |
4,50 m moulded |
|
Built |
2005 |
|
Keel laid |
16.02.2005 |
|
Launch date |
29.04.2005 |
|
Date of completion |
24.11.2005 |
|
Builder casco |
Leninskaya Kuznya Plant JSC |
|
Builder completion |
H & U Technisch Buro |
|
Yard number |
CT 206 A4 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double hull Partly double bottom |
|
Watertight bulkheads |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar 3512 (B) DI-TA electronic - 4 stroke 12 cylinder 170 x 190 mm diesel engine - 1.699 hp / 1.500 kW at 1.600 rpm Builder: Caterpillar, Inc. |
|
Propellers |
1x Solid propeller - aft at 318 rpm |
|
Electric installations |
1x Plant 400 V - 71.5 kVA 1x Plant 400 V - 120 kVA 1x Plant 440 V - 570 kVA 1x Plant 12 V - 50 Ah 1x Plant 24 V - 230 Ah 1x Plant 24 V - 400 Ah |
|
Generators |
1x Generator 570 kVA 1x Main generator 120 kVA 1x Main generator 71.5 kVA |
|
Compressed air receivers |
1x Receiver 150 litres - 8,0 bar |
|
Bow thruster |
1x Transverse Caterpillar - van Tiem type 1000 MKIC- 395 hp with 290 kW electro-motor, forward |
|
Number of cargo tanks |
8 |
|
Tank capacity |
3.009 m³ |
|
Lifting equipment |
1x car crane - SWL 1.750 kg outreach 14,00 m |
|
Manager |
Ludwig Harms Finanzdienstleistungen e.K. |
|
Owner |
Grendel Schiffahrt |
|
Registered owner |
Alexander Oudenhoven |
|
Last update |
12 July 2013 |
