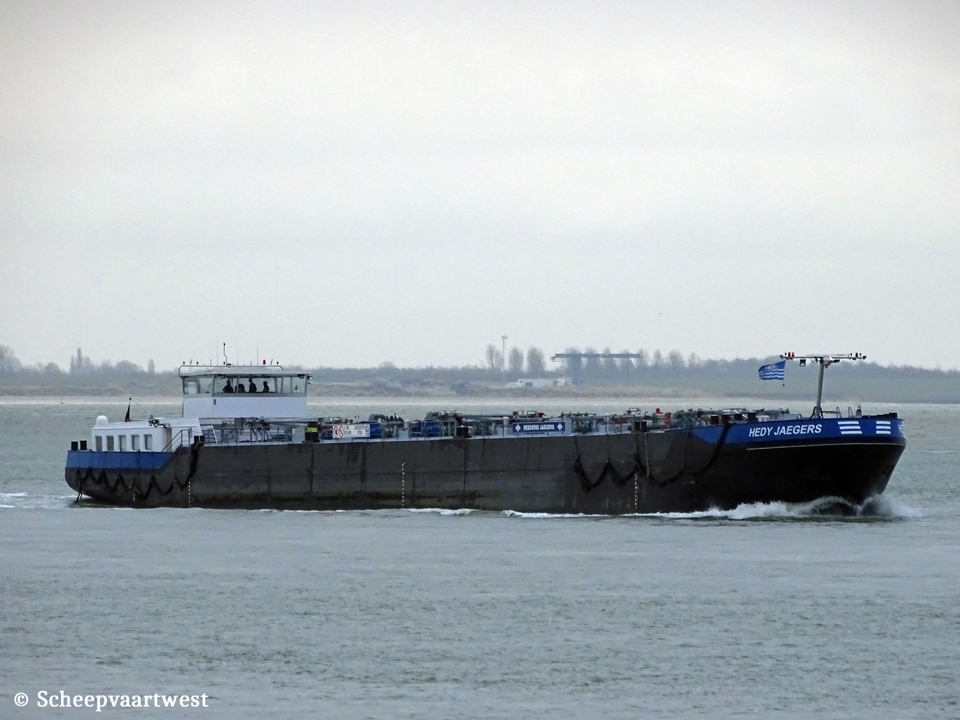

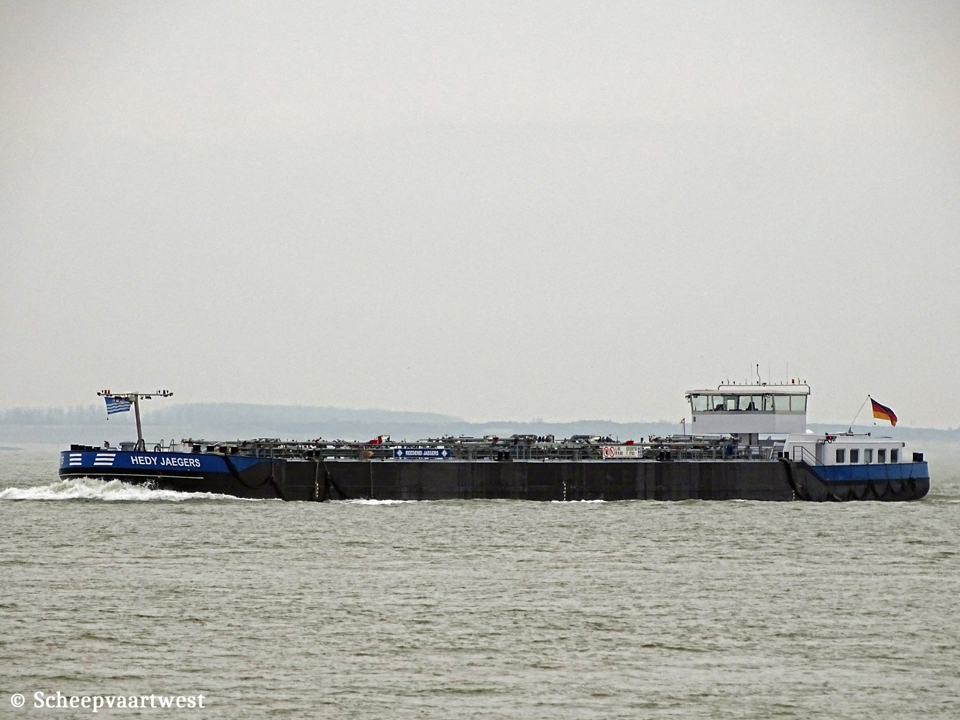

| Westerschelde 20 January 2018 |
 |
|
| Westerschelde 20/01/18 | |
|
Name |
HEDY JAEGERS |
|
Type |
Hybrid inland waterways tanker |
|
IMO-number |
9696333 |
|
ENI-number |
02335753 |
|
Call sign |
DC8546 |
|
Flag |
Germany |
|
Port of registry |
Duisburg |
|
GT |
1.400 t |
|
Tonnage |
1.763 t |
|
Length |
86,00 m overall 84,31 m between perpendiculars |
|
Breadth |
9,59 m extreme |
|
Draught |
3,28 m |
|
Depth |
3,50 m |
|
Built |
2015 |
|
Keel laid |
22/06/2013 |
|
Date of completion |
23/06/2015 |
|
Builder casco |
Kladovo Shipyard Kladovo Serbia |
|
Builder completion |
Trico Shipyard Rotterdam The Netherlands |
|
Yard number |
80 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi S6R-MPTAW combustion engine 470 kW / 640 hp at 1.600 rpm and Baumüller DST2-315ZA electro-motor 235 kW / 320 hp |
|
Gearbox |
1x Masson MMW 3450 - reduction: 4,913:1 |
|
Propellers |
1 |
|
Bow thruster |
1x Mitsubishi 383 hp/Verhaar Omega-Jet electro-motor 282 kW at 1.780 rpm |
|
Number of pumps |
2x Bornemann W7T2 cargo pumps each 250 m³/h connected with ABB electro-motors each 105 kW 1x Bornemann SLI80-20/1 slop pump 15 m³/m connected with ABB electro motor 3,5 kW 2x DWP ballast pumps |
|
Owner |
Jaegers Reederei GmbH & Co KG Königstraße 88, Alt-Homberg 47198 Duisburg Germany |
|
Latest data adjustment |
14 March 2024 |
