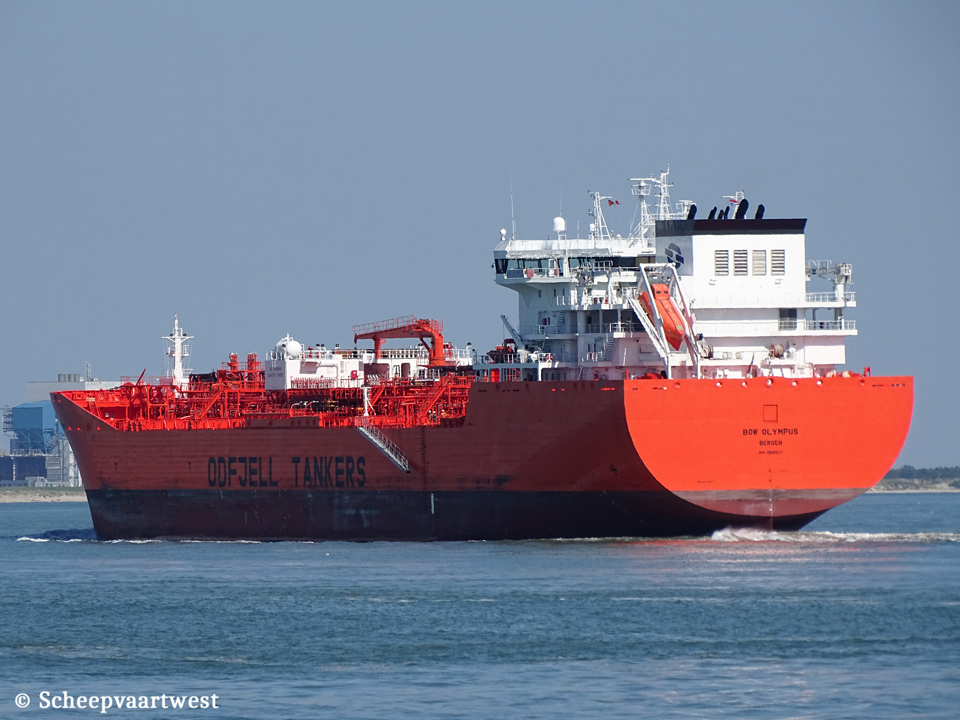

| Westerschelde 23 June 2020 |
|
Name |
BOW OLYMPUS |
|
Type |
Tanker for chemicals and oil products Class Hudong 49 |
|
IMO-number |
9818527 |
|
Call sign |
LAFY8 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
34.128 t Suez: 35.912 t |
|
DWT |
Summer: 49.120 t |
|
NT |
12.933 t |
|
Light ship |
13.123 t Suez: 30.943 t Panama: 28.451 t |
|
Length |
182,83 m overall 179,41 m between perpendiculars |
|
Breadth |
32,19 m extreme |
|
Draught |
Summer: 13,22 m summer deadweight |
|
Keel to mast end |
46,91 m |
|
Depth |
19,80 m |
|
Built |
2019 |
|
Keel laid |
02/07/2018 |
|
Launch date |
23/01/2019 |
|
Date of completion |
01/11/2019 |
|
Builder |
Hudong-Zhonghua Shipbuilding (Group) Co., Ltd. Shanghai China |
|
Yard number |
H1861A |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6G50ME-C - 6 cylinder combustion engine 10.320 kW - 14.031 hp |
|
Propellers |
1x Fixed pitch mono-block propeller |
|
Boilers |
1x Auxiliary boiler, composite (Steam heating) Aalborg OC-Tci 2x Auxiliary boiler, oil/gas fired (Steam heating) Aalborg OM Manufacturer: Alfa Laval Aalborg A/S |
|
Generators |
2x MAN 6L28/32H main diesel generatorsets 2x MAN 5L28/32 main diesel generatorsets |
|
Emergency generator |
1x Scania D9 diesel generatorset |
|
Number of tanks |
33 |
|
Cargo tank capacity |
Liquid: 54.600 m³ |
|
Manifolds |
Rail to manifold: 4,60 m Bow to centre of manifold: 83,90 m |
|
Tank capacities |
Ballast: 18.513,6 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 78 mm |
|
ISM & commercial manager |
Odfjell Management AS Conrad Mohrs Veg 29 5072 Bergen Norway |
|
Registered owner |
Xiang Ch4 Sg International Care of Odfjell Chemical Tankers AS Conrad Mohrs Veg 29 5072 Bergen Norway |
|
Latest data adjustment |
05 April 2024 |
