| Westerschelde 11 February 2012 |
 |
| Westerschelde 11/02/12 |
|
Name |

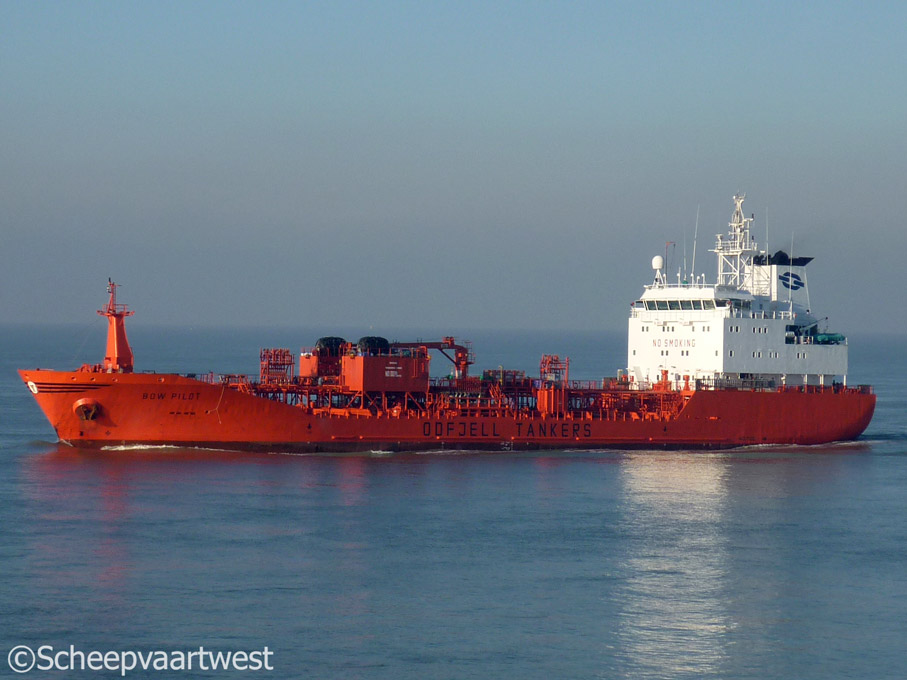

BOW PILOT |
|
Type |
Tanker for chemicals & Oil products |
|
IMO-number |
9164732 |
|
Call sign |
S6EN |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
4.667 t |
|
DWT |
Summer: 6.005 t |
|
NT |
1.956 t |
|
Light ship |
2.983 t |
|
Length |
103,60 m overall 97,40 m between perpendiculars |
|
Breadth |
16,60 m extreme |
|
Draught |
7,11 m |
|
Keel to mast |
35,20 m |
|
Depth |
9,40 m |
|
Speed |
13,0 knots |
|
Built |
1999 |
|
Keel laid |
15/12/1998 |
|
Launch date |
20/03/1999 |
|
Date of completion |
15/07/1999 |
|
Builder |
Stocznia Szczecinska S.A. Firlika 20 71-637 Szczecin Poland |
|
Yard number |
B579/3 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Main engine |
1x MAN-B&W 6S35MC - 2 stroke 6 cylinder 250 x 1.400 mm combustion engine 4.200 kW / 5.710 hp at 1743,0 rpm Builder: MAN-B&W Diesel A/S |
|
Propellers |
1x Controllable pitch propeller Diameter: 4.100 mm Builder: MAN B&W Diesel A/S, Alpha Diesel |
|
Boilers |
Auxiliary boiler, vertical shell type AQ-18 Auxiliary boiler, composite AQ-16 Builder: Aalborg Industries A/S |
|
Generators |
2x MAN 6L16/24 diesel generatorsets Builder: MAN B&W Diesel AG |
|
Emergency generator |
1x MAN D2866E diesel generatorset Builder: MAN Nutzfahrzeuge AG |
|
Number of tanks |
14 |
|
Cargo tanks capacity 98% |
Tank 1P: 306 m³ Tank 1S: 306 m³ Tank 2P: 327 m³ Tank 2S: 327 m³ Tank 3P: 612 m³ Tank 3S: 619 m³ Tank 4P: 317m³ Tank 4S: 324 m³ Tank 5P: 619 m³ Tank 5S: 625 m³ Tank 6P: 640 m³ Tank 6S: 640 m³ Tank 7P: 608 m³ Tank 7S: 608 m³ Total: 6.878 m³ |
|
Number of segregations |
14 |
|
Number of pumps |
14x Cargo pumps each 200 m³/h |
|
Manifolds |
Bow to manifold: 49,00 m |
|
Tank capacities |
Ballast: 2.381,8 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Chew size |
16 |
|
Manager |
Odfjell Management AS Conrad Mohrs Veg 29 5072 Bergen Norway |
|
Previous managers |
1999 - 2004 Odfjell Management AS 2004 - 2004 Odfjell Asia Pte. Ltd. 2004 - 2004 Odfjell Management AS 2004 - 2005 Odfjell Asia Pte. Ltd. 2005 - 2006 Odfjell Ship Management- Fleet Asia 2006 - 2012 Odfjell Asia II Pte. Ltd. |
|
Operator |
Odfjell tankers |
|
Registered owner |
Odfjell Asia II Pte. Ltd. 6 Shenton Way #27-07/08 DBS Tower 2 Singapore city Republic of Singapore |
|
Previous owner |
1999 - 2007 Odfjell Asia Pte. Ltd. 6 Shenton Way #27-08/09 DBS Tower 2 068809 Singapore City Republic of Singapore |
|
Renamed |
02/2015 Kilstraum Malta, Valletta - Call sing: 9HA3844 Manager: Utkilen AS, Bergen - Norway Owner: Utkilen Shipping AS, Bergen - Norway |
|
Latest data adjustment |
15 November 2024 |
