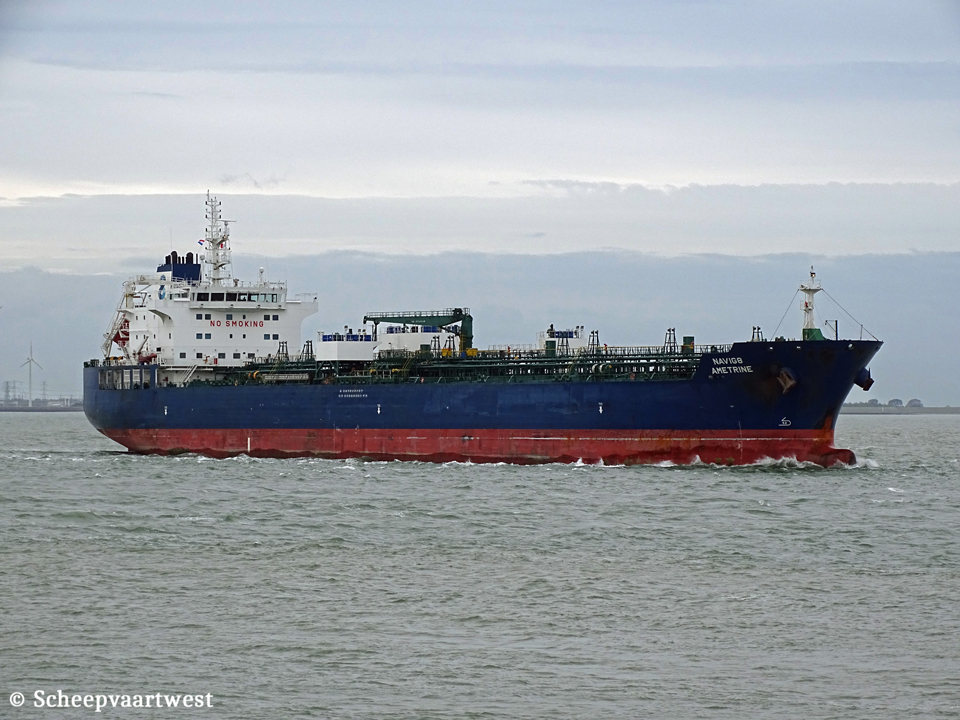

| Westerschelde 17 August 2019 |
|
Name |
NAVIG8 AMETRINE |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9714513 |
|
Call sign |
V7GW5 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
23.676 t Suez: 24.999,08 t |
|
DWT |
38.506 t |
|
NT |
9.905 t Suez: 21.523,31 t |
|
Displacement |
47.506 t |
|
Length |
184,06 m overall 176,00 m between perpendiculars |
|
Breadth |
27,40 m moulded |
|
Draught |
Summer: 11,52 m |
|
Freeboard |
5.514 mm |
|
Depth |
17,20 m moulded |
|
Speed |
Service: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
17/10/2014 |
|
Delivery date |
14/04/2015 |
|
Builder |
Hyundai Mipo Dockyard CO., Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2415 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Hyundai/MAN-B&W 6S50ME-B9.3 - 2 stroke 6 cylinder 500 x 2.204 mm combustion engine 7.290 kW - 9.914 bhp at 99,3 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Fired boiler - 8,83 MPa 1x Fired exhaust gas boiler - 8.83 MPa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
2x Generatorsets each 1.100 kW 1x Generatorset 900 kW Manufacturer: HHI Electro Electric System |
|
Cargo tank capacity |
39.794,90 m³ |
|
Number of pumps |
14x Cargo pumps each 500 m³/h |
|
Tank capacities |
Fresh water: 675,30 m³ Lub oil: 92,80 m Diesel oil: 338.71 m³ Ballast: 17.974,30 m³ Hydraulic oil: 17,50 m³ Fuel oil: 944,30 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,0 t Manufacturer: Oriental Precision Machinery Co., Ltd. 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,0 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Previous managers |
2015 - 2020 Navig8 Chemicals Asia Pte Ltd. Republic of Singapore |
|
Owner |
Spdbfl No Seventeen (shanghai) Ship Leasing Co Ltd. Republic of Singapore |
|
Previous owners |
2015 - 2020 Navig8 Chemical Tanker 4 Inc |
|
Renamed |
03/2022 Hafnia Ametrine Marshall Islands, Majuro - Call sign: V7GW5 Owner: Hafnia Chem Shipholding Pte Ltd. Manager: OSM Ship Management AS |
|
Latest data adjustment |
24 July 2024 |
