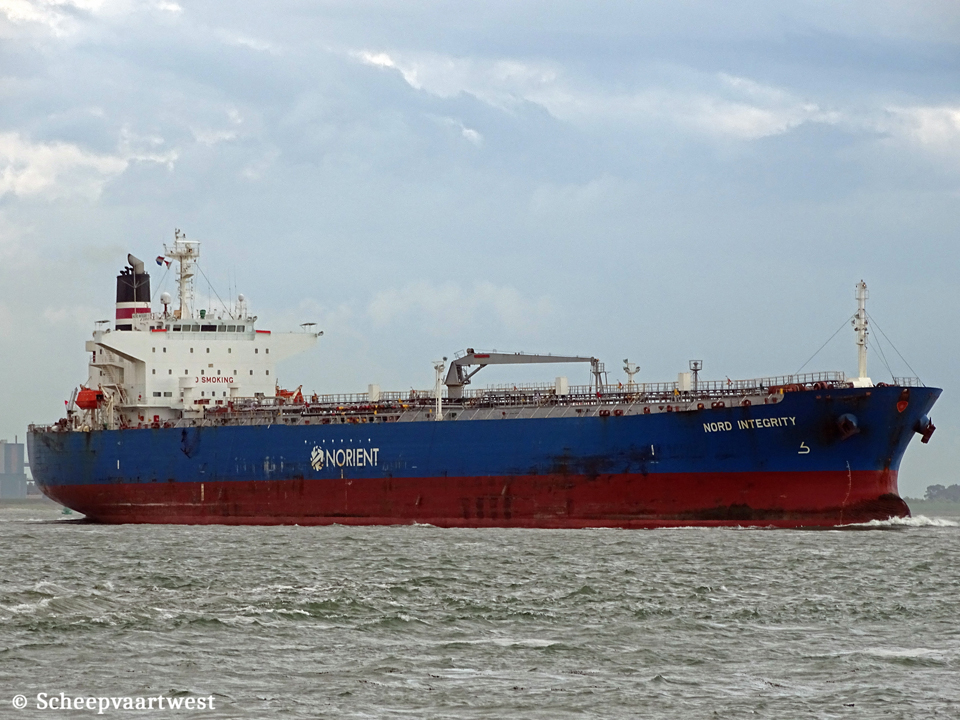

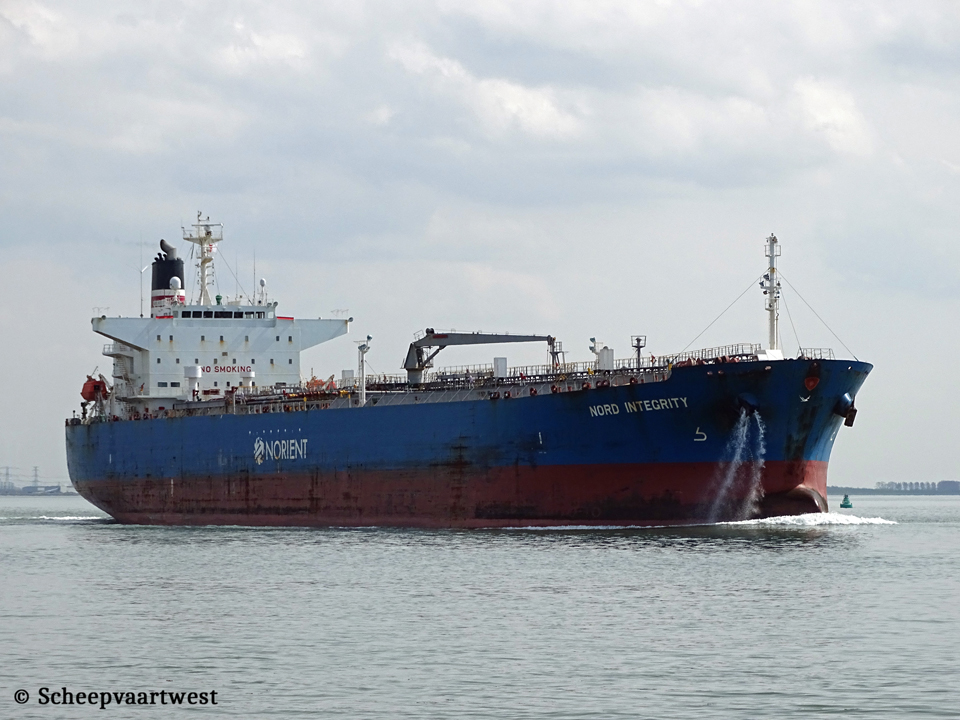

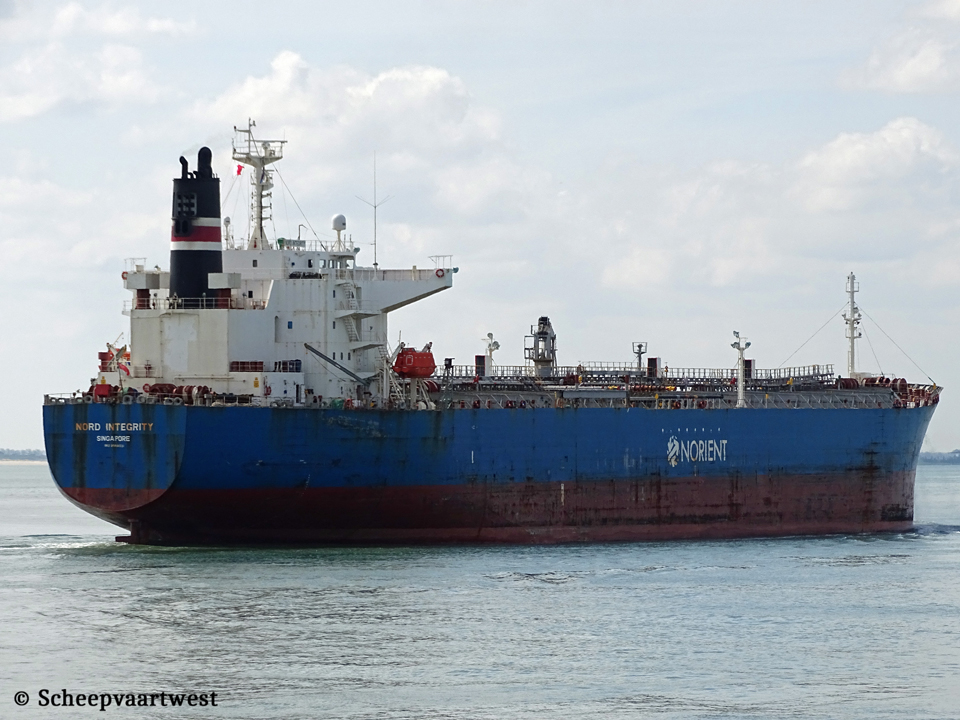

| Westerschelde 10 April 2018 |
 |
|
| Westerschelde 10/04/18 | |
|
Name |
NORD INTEGRITY |
|
Type |
Oil product tanker |
|
IMO-number |
9568031 |
|
Call sign |
9V5588 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
Previous flags |
2010 - 2010 Republic of Panama, Panama City - Call sign: 3FVP7 |
|
GT |
28.777 t |
|
DWT |
48.026 t |
|
NT |
12.680 t |
|
Light ship |
9.974 t |
|
Length |
179,99 m overall 172,00 m between perpendiculars |
|
Breadth |
32,23 m extreme |
|
Draught |
Summer: 12,62 m |
|
Keel to mast end |
44,99 m |
|
Freeboard |
6.462 mm |
|
Depth |
19,05 m moulded |
|
Speed |
Max: 15,3 knots |
|
Built |
2010 |
|
Builder |
Iwagi Zosen Co.,Ltd.(Iwagi Shipbuilding) Kamijima Japan |
|
Yard number |
272 |
|
Hull material |
Steel |
|
Hull type |
Double Hull |
|
Main engine |
1x Hitachi/MAN-B&W 6S50MC-C8.2 - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine Mcr 9.480 kW / 12.889 hp at 127,0 rpm Build: 28/11/2010 Builder: Hitachi Man B&W Zosen, Nagasu, Kumamoto,- Japan |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Miura /HB-025 Natural circulation vertical water tube - 10,00 m² / 8,0 bar |
|
Generators |
3x Main diesel generatorsets each 720 kW |
|
Number of cargo tanks |
16 + 2 slop tanks |
|
Cargo tank capacity 98% |
Seg#1 (1W / 5W / Slop S): 12.361,426 m³ Seg#2 (2W / 6W): 13.676,051 m³ Seg#3 (3W / 7W / Slop P): 14.639,784 m³ Seg#4 (4W / 8W): 12.835,742 m³ Liquid: 52.706 m³ incl slop tanks |
|
Residue tank |
174,723 m³ |
|
Number of pumps |
3x Vertical shaft centrifugal cargo pumps each 1.100 m³/h 1x Vertical shaft centrifugal cargo pump 1.100 m³/h 1x Vertical shaft centrifugal ballast pump 3.300 m³/h |
|
Max. load/discharge rate |
5.800m³/h / 3.300 m³/h |
|
Manifolds |
Bow to centre manifold: 92,38 m |
|
Tank capacities |
Fuel: 2.465,99 m³ |
|
Lifting equipment |
1x crane - SWL 10,0 t midship |
|
Commercial manager |
Norient Product Pool Aps Strandvejen 52 2900 Hellerup Denmark |
|
ISM manager |
Dampskibsselskabet NORDEN A/S Strandvejen 52 2900 Hellerup Denmark |
|
Registered owner |
Norden Shipping Singapore Pte Ltd. |
|
Renamed |
11/2020 Virgen Del Quinche Cyprus, Limassol - Call sign: 5BQJ5 Registered owner: Diralco Shipping Co Ltd., Madrid - Spain Manager: Marflet Marine SA, Madrid - Spain |
|
Latest data adjustment |
27 July 2024 |
