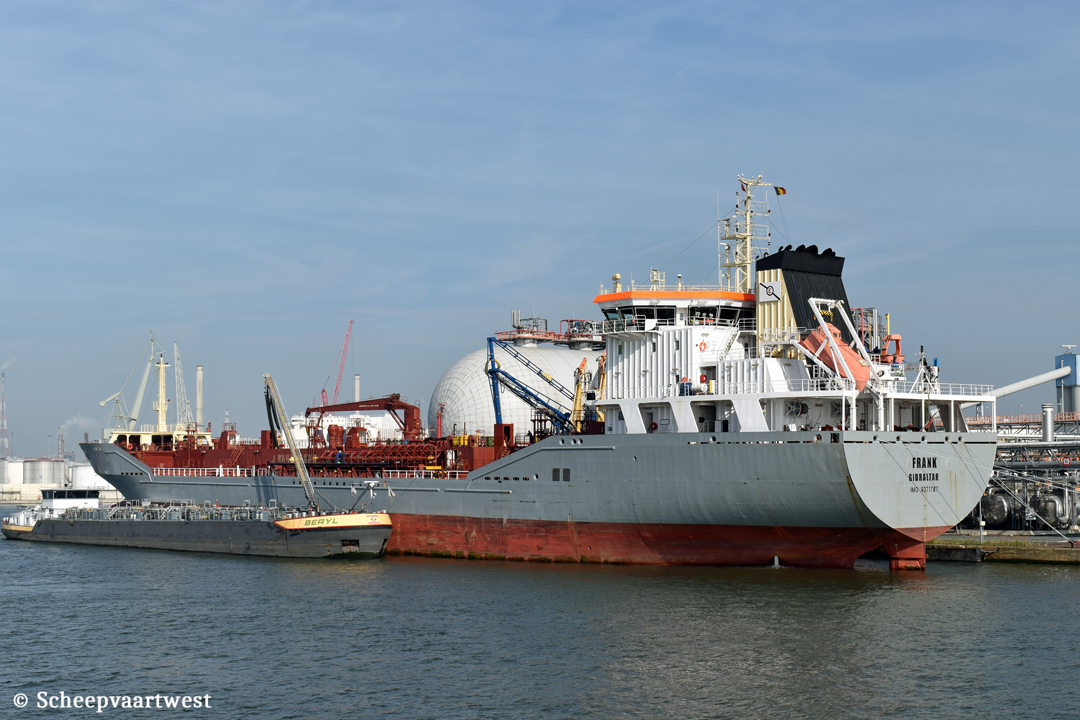

Frank IMO 9371787 01
Antwerpen 29 August 2024


Name

FRANK

Previous names

2007 - 2008 Besiktas Nordland

2008- 10/2022 Selandia Swan

Type

Tanker for oil and chemicals

IMO-number

9371787

Call sign

ZDSG5

Flag

Gibraltar

Port of registry

Gibraltar

Previous flags

2007 - 2008 Turkey

2008 - 10/2022 Denmark, Midderfart - Call sign: OYIN2

GT

11.711 t

DWT

Summer: 17.998,44 t

NT

6.027 t

Displacement

23.412,88 t

Length

147,50 m overall

140,60 m between perpendiculars

Breadth

22,41 m extreme

Draught

Summer: 9,75 m

Ballast: 6,25 m

Height from keel to mast

38,10 m

Air draft

32,85 m in ballast

28,65 m loaded

Freeboard

3.119 mm

Depth

12,60 m moulded

Speed

11,3 knots loaded

11,1 knots ballast

Max: 14,0 knots

Built

2008

Keel laid

21/10/2006

Launch date

09/07/2007

Date of completion

19/02/2008

Builder

Gisan Tuzla Shipyard (Gisan Gemi Insaat San. ve Tic. Ltd. Sti.)

Evliya Celebi Mah. Billur Sok. No:11

Istanbul, 34944

Turkey

Yard number

40

Hull material

Steel

Hull type

Double hull

Main engine

1x MaK 7M43C - 4 stroke 7 cylinder 430 x 610 mm combustion engine 6.300 kW / 8.565 hp at 500 rpm

Manufacturer: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust heated 3EXV 5-35-18-57-0

1x Thermal oil heater, oil fired 1V5-O-TFO-

1x Thermal oil heater, oil fired 2V5-O-TFO-030

1x Thermal oil heater, steam heated 4H.STV-TO

Shaft generator

1x 1.200 kW

Generators

3x Yanmar 6N2LAA-SV main diesel generatorsets each 1.000 kVA - 800 kW - 1.087 hp

Emergency generator

1x MAN D2866 TE diesel generatorset 218 kW

Bow thruster

1x 750 kW / 1.006 bhp, forward

Number of cargo tanks

14 + 2 slop tanks

Cargo tank capacity 98%

20.186,4 m³

Slop tank capacity 98%

397,10 m³

Number of segregations

14x double valves

Number pumps

14x Centrifugal cargo pumps each 380 m³/h

2x Centrifugal cargo pumps each 100 m³/h

1x Centrifugal pump 70 m³/h

2x Ballast pumps each 500 m³/h

Manifolds

Distance from bow to centre manifold: 83,90 m

Distance from stern to centre manifold: 63,60 m

Distance between manifolds: 1,50 m

Distance from ship side to manifold: 4,688 m

Distance from deck / tray to manifold: 2,01 m / 0,79 m

Tank capacities

Ballast: 7.399,69 m³

Lub oil: 38,32 m³

Fresh water: 352,30 m³

Diesel oil: 1183,08 m³

Fuel oil: 700,27 m³

Anchor equipment

Length: 577,50 m

Diameter: 56 mm

Lifting equipment

1x Hose crane - SWL 10,0 t

1x MOB/stores- SWL 2,0 t

Manager

Carl F. Peters GmbH & Co KG

Kurze Mühren 13

D-20095 Hamburg

Germany

Registered owner

Reederei TMS Frank GmbH & Co KG

Hamburg

Germany

Previous names & owners

2007 - 2008 Besiktas Nordland - Gemini Denta Gemi Insa Nakliyat Ticaret AS - Turkey

2008 - 10/2022 Selandia Swan - Uni-Tankers MT "SELANDIA SWAN" ApS

Care of Uni-Tankers A/S, Middelfart - Denmark

Latest data adjustment

01 September 2024
