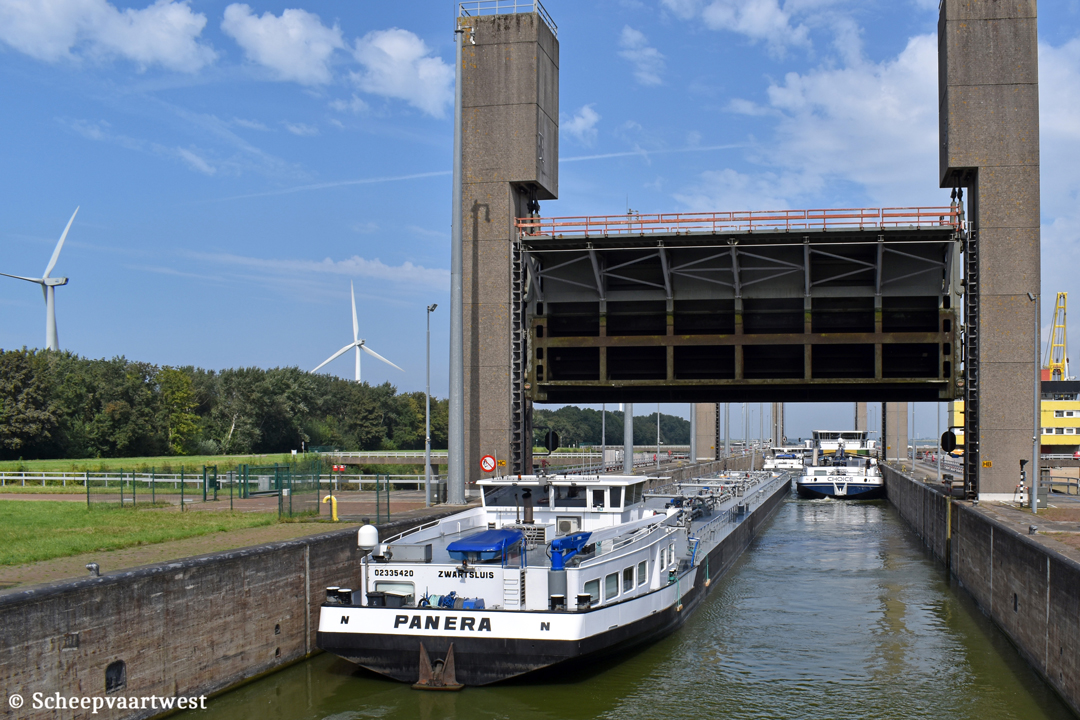

Panera ENI 02335420 01
Kreekraksluis 29 August 2024
The Netherlands


Name

PANERA

Type

Inland waterways tanker

ENI-number

02335420

Call sign

PA4729

Flag

The Netherlands

Port of registry

Zwartsluis

GT

1.900 t

Tonnage

3.510 t

Length

134,68 m overall

132,22 m between perpendiculars

Breadth

11,45 m extreme

Draught

3,27 m

Depth

4,52 m moulded

Built

2013

Keel laid

16/05/2008

Date of completion

22/05/2013

Builder casco

Kherson Shipyard (OAO Khersonskiy Sudostroitelny)

Kherson

Ukraine

Yard number: CT 707-2

Builder completion

Zanen Shipbuilding B.V.

The Netherlands

Hull material

Steel

Continuous decks

1

Main engine

1x Mitsubishi S16R-C2MPTK combustion engine 1.250 kW / 1.700 hp at 1.600 rpm

Propellers

1x 5 blades propeller - Diameter 1.800 mm

Generators

  • 1x John Deere 6135AFM75 engine connected with Stamford HCM534D generator 440 kVA / 480V 60Hz

  • 1x John Deere 4045HFG82C engine connected with Stamford UCM274F generator 120 kVA at 50Hz and 144 kVA at 60Hz

  • 1x John Deere 4045TFU70 engine connected with Stamford UCM224F generator 63 kVA / 50Hz

Bow thruster

1x John Deere 550 hp Electro-motor - Veth-Jet VSG-1200L - 404 kW at 1.800 rpm

Cargo tank capacity

3.800 m³

Number of pumps

5x Bornemann W7 cargo pumps each 170 m³/h powered by ABB electro-motors 52 kW

Owner

Zeedencat BV

Catharina van Clevepark 85

1181 AS, Amstelveen

The Netherlands

Latest data adjustment

02 September 2024
