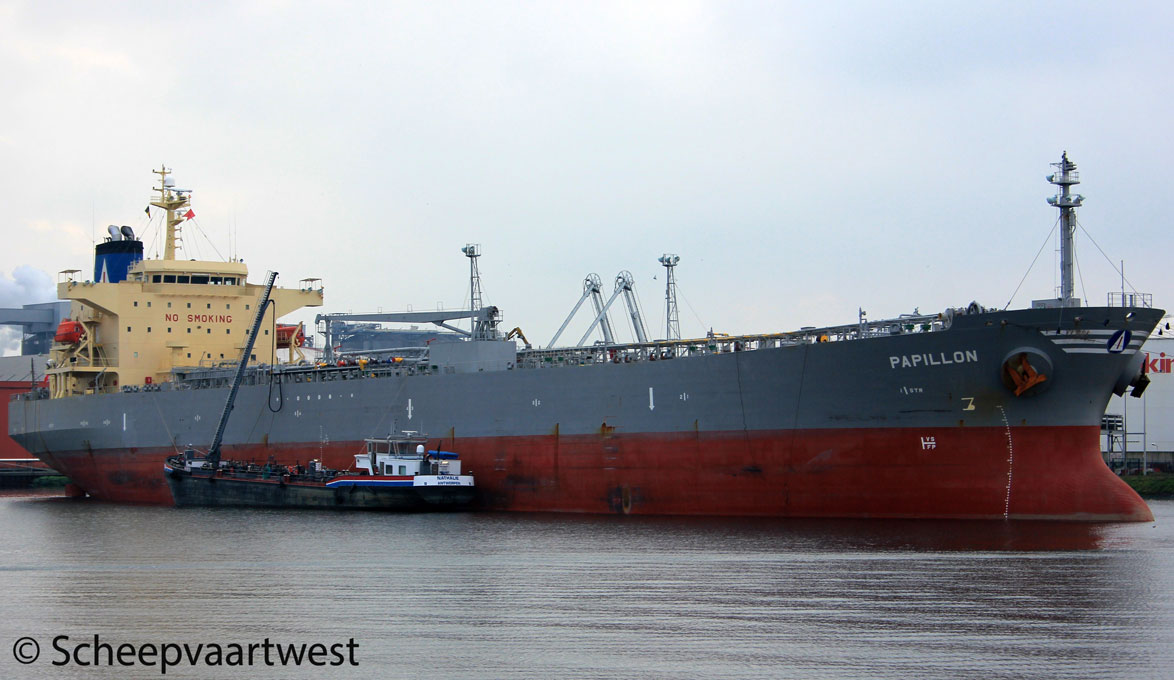

Papillon 02
Gent, Belgium 20 October 2012

Papillon 01
Gent 20/10/12


Name

PAPILLON

Type

Double hull oil and chemical carrier

IMO-number

9345659

Call sign

C6WE2

Flag

Bahamas

Port of registry

Nassau

GT

26.913 t registered

Suez: 29.581,38 t

DWT

47.302 t

NT

13.704 t registered

Panama: 22.372,69 t

Suez: 26.734,77 t

Length

182,50 m overall

172,00 m between perpendiculars

Breadth

32,20 m moulded

Draught

12,60 m full load

Freeboard

5.512 mm

Depth

18,10 m moulded

Speed

15,3 knots

Built

2007

Keel laid

22.10.2004

Date of completion

21.06.2007

Builder

Onomichi Dockyard Co., Ltd.

Onomichi

Japan

Yard number

524

Hull material

High strength steel

Hull type

Double hull

Bulkheads

Water tight: 2

Oil tight: 12

Main engine

1x Mitsui Man B&W 6S50MC - 6 cylinder 500 x 1.910 mm diesel engine - 8.580 kW at 127,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd.

Propellers

1

Boilers

Exhaust gas economiser DC-061416

Auxiliary Water tube boiler MAC-25B - 18,0 bar

Generators

3x Yanmar 6N18AL-UV diesel generatorsets each 480 kW

Number of cargo tanks

15 Slop tanks included

Cargo segregations

4

Cargo tank capacity 100%

53.703,7 m³ / 52.629,62 t

Cargo tank capacity 98%

52.608 m³

Cargo pumps

4x Centrifugal steam turbine

Number of tanks

Water ballast: 14

Fuel oil: 7

Diesel oil: 4

Lubricating oil: 4

Fresh water: 4

Waste water: 3

Chain: 2

Tank capacities

Diesel oil: 139,0 m³ / 125,91 t

Fresh water: 324,3 m³

Fuel oil: 1.702,8 m³ / 1.663,98 t

Lube oil: 84,9 m³ / 76,41 t

Tank ballast: 18.411 m³ / 18.871,27 t

Lifting equipment

1x Handling crane (Port) - SWL 2,0 t

Builder: Onomichi Dockyard Co., Ltd.

1x Hose handling crane - SWL 10,0 t

Builder: MHI

1x Provision crane RD-2082PL - SWL 2,0 t

Builder: Mansei Ind.

Manager

Samos Steamship Co.

63, Poseidonos Ave. & 2 Aiantos Str 175 62 P.Faliro
Athens
Greece

Operator

Samos Steamship Co.

Registered owner

Amyra Shipping S.A.
80 Broad Street
Monrovia
Liberia

Last update

23.01.2013
