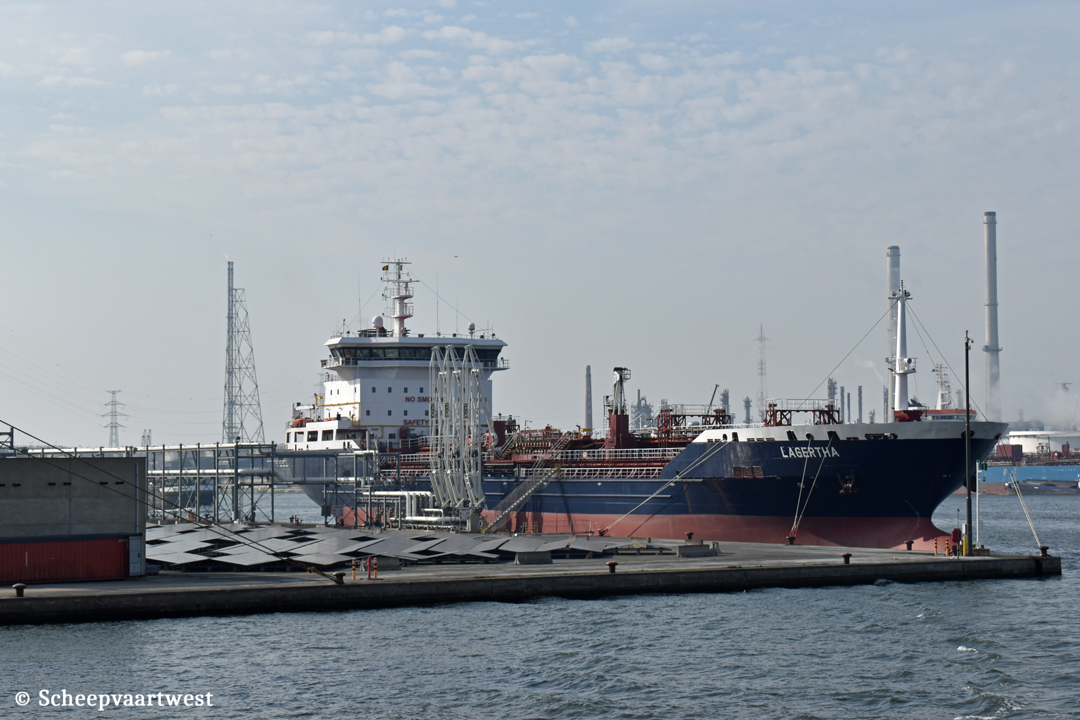

Lagertha IMO 9410143 01
Antwerpen 29 August 2024


Name

LAGERTHA

Previous names

02/2009 - 05/2009 Veysel Bey

05/2009 - 08/2019 Halit Bey

08/2019 - 10/2019 BK Superior

Type

Oil tanker, Chemical tanker

IMO-number

9410143

Classification

American Bureau of Shipping

Call sign

5LMC7

Flag

Liberia

Port of registry

Monrovia

Previous flags

Turkey, Istanbul - Call sign: TCTP8

Marshall Islands, Majuro - call sign: V7ZY5

Malta, Valletta - Call sign: 9HA5147

GT

12.619 t

Suez: 14.084,5 t

DWT

Summer: 19.999,2 t

NT

6.766 t

Suez: 12.290,6 t

Panama: 10.604 t

Displacement

26.506 t

Light ship

6.507 t

Length

161,65 m overall

151,30 m between perpendiculars

Breadth

22,40 m moulded

Draught

Summer: 9,70 m

Keel to mast end

39,90 m

Freeboard

3.313 mm

Depth

12,80 m moulded

Speed

Max: 14,5 knots

Built

2009

Keel laid

09/02/2008

Date of completion

21/05/2009

Builder

Turker Gemi Yapim San.Ve Tic. A.S.

Kocaeli Serbest Bolgesi Yenikoy-Basiskele-Kocaeli

Istanbul

Turkey

Yard number

11

Hull material

Steel

Hull type

Double hull

Main engine

1x MAN-B&W 6L48/60B - 4 stroke 6 cylinder 480 x 600 mm combustion engine Mcr 6.300 kW / 8.565 hp at 500 rpm

Propellers

1x Controllable pitch propeller

Shaft generator

1x AEM - 1.200 kW

Generators

2x Main diesel generatorsets each 750 kW

1x Main diesel generatorset 500 kW

Manufacturer: HHI Electro Electrics

Bow thruster

1x 800 kW

Number of tanks

22

Cargo tank capacity 100%

Liquid: 23.592,42 m³

Number of pumps

16x Cargo pumps each 375 m³/h

2x Cargo pumps each 150 m³/h

2x Cargo pumps each 100 m³/h

Tank capacities

Diesel oil: 63,29 m³

Fuel oil: 940,99 m³

Lub oil: 31,35 m³

Fresh water: 431,36 m³

Ballast: 8.591,78 m³

Lifting equipment

1x Hose handling crane - SWL 10,0 t

1x Hose handling crane - SWL 2,0 t

ISM & commercial manager

Besiktas Likid Tasimacilik

Kat 15, Blok A, Piyale Pasa Bulvari Memorial Centre, Okmeydani, Sisli

34385 Istanbul

Turkey

Registered owner

Logon Shipping Ltd.

Care of Besiktas Likid Tasimacilik Denizcilik Ticaret AS, Kat 15, Blok A, Piyale Pasa Bulvari Memorial Centre, Okmeydani, Sisli

34385 Istanbul

Turkey

Latest data adjustment

07 September 2024
