Lafayette Bay 01

Antwerpen 14 August 2017

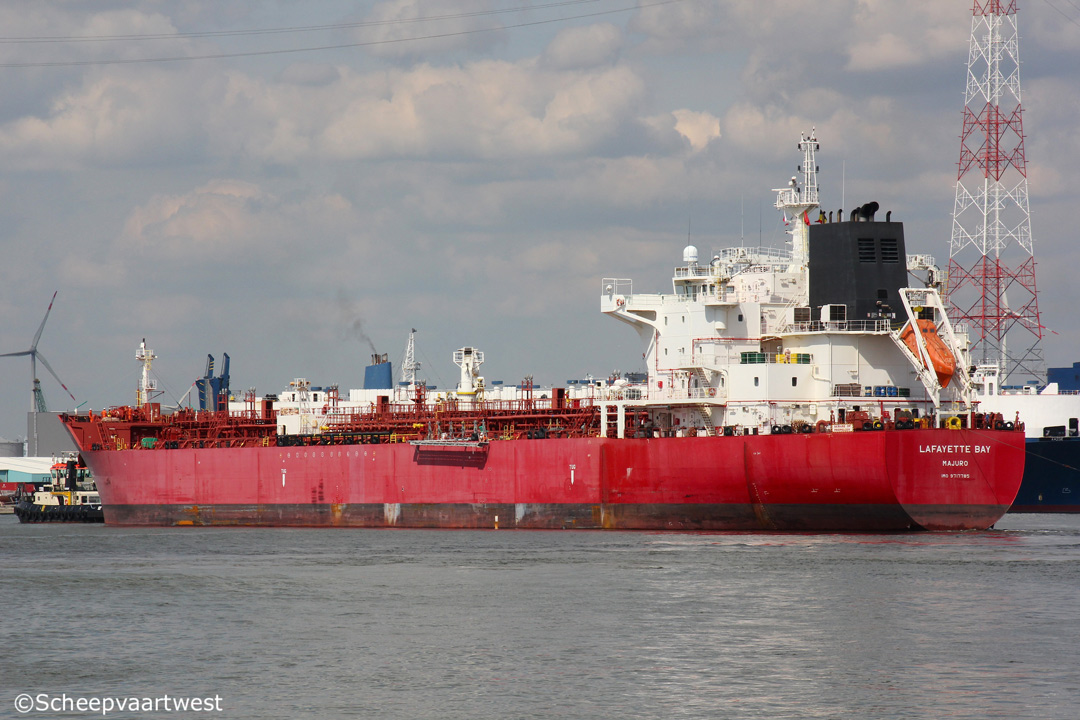

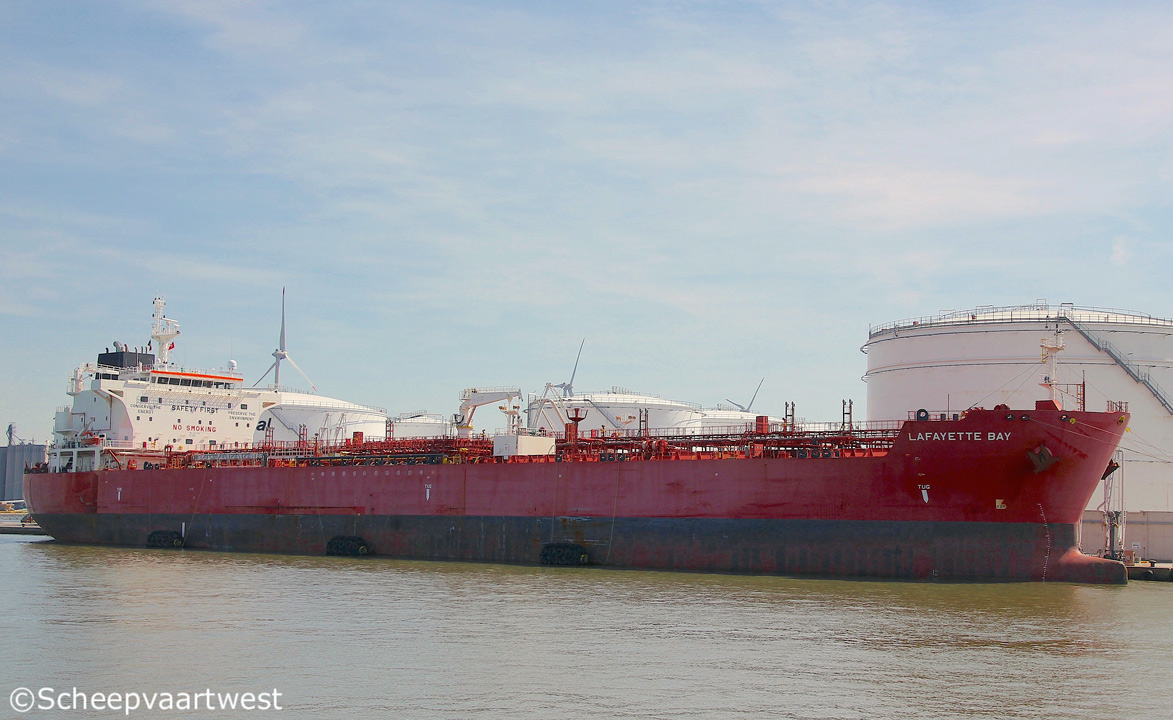

Lafayette Bay 02   Lafayette Bay 03
Antwerpen 14/08/17 Antwerpen 19/04/18


Name

LAFAYETTE BAY

Type

Tanker for oil and chemicals

IMO-number

9717785

Call sign

V7EU6

Flag

Marshall islands

Port of registry

Majuro

GT

29.735 t

DWT

49.990 t

NT

13.834 t

Length

183,04 m overall

173,99 m between perpendiculars

Breadth

32,22 m extreme

Draught

13,31 m

Depth

19,10 m

Speed

Max: 16,0 knots

Service: 14,0 knots

Built

2015

Keel laid

15/11/2013

Launch date

11/03/2015

Date of completion

16/07/2015

Builder

SPP Shipbuilding Co., Ltd. - Tongyeong Shipyard
South Korea

Yard number

S1166

Hull material

Steel

Hull type

Double bottom with hopper

Double side with top wing

Main engine

1x MAN-B&W 6G50ME-B9.3 - 2 stroke 6 cylinder combustion engine 7.500 kW

Propellers

1x Fixed propeller

Boilers

1x Auxiliary boiler, composite

1x Auxiliary boiler, oil/gas fired

Generators

3x MAN 6L23/30H main diesel generatorsets each 900 kW

Number of cargo tanks

12

Cargo tank capacity

51.759 m³

Tank capacities

Ballast: 31.916,9 m³

Anchor equipment

Length: 632,50 m

Diameter: 73 mm

Manager

Scorpio Marine Management (India) Pvt. Ltd.
Scorpio House - Central Avenue
Hiranandani Business Park - Powai
Mumbai 400076
India

Registered owner

Lafayette Bay Shipping LLC

Latest data adjustment

13 Mach 2018
