| Antwerpen 29 August 2024 |
|
Name |

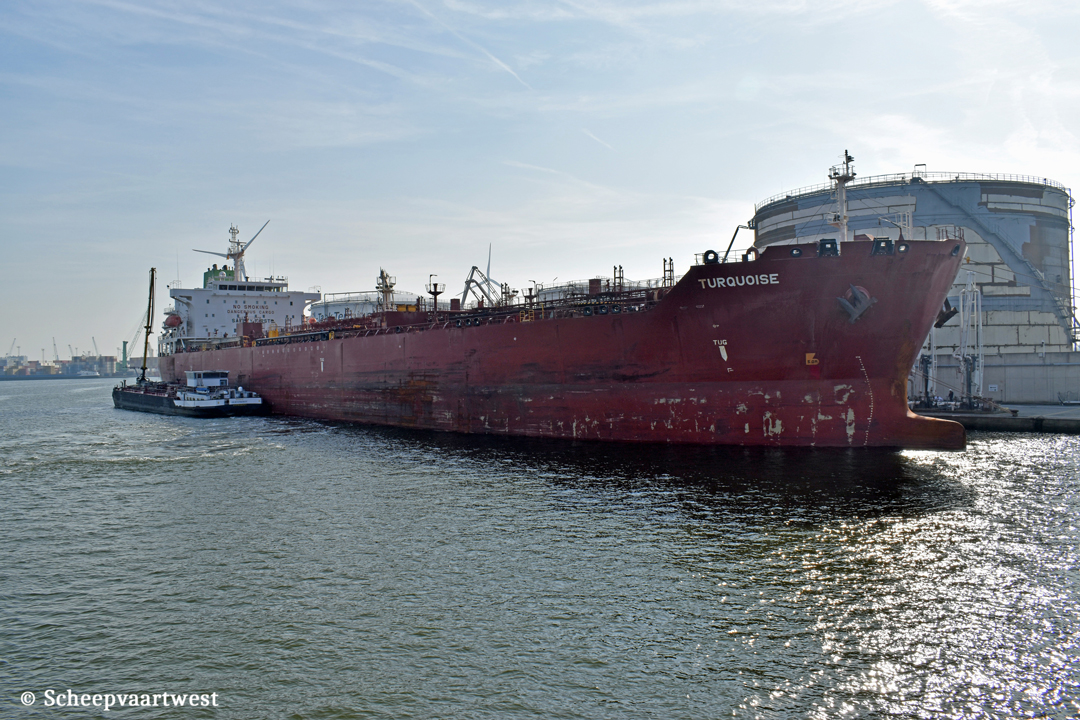

TURQUOISE |
|
Type |
Oil and chemical carrier |
|
IMO-number |
9717761 |
|
Call sign |
V7KG7 |
|
Flag |
Marshall islands |
|
Port of registry |
Majuro |
|
GT |
29.767 t Suez: 31.480,52 t |
|
DWT |
49.990 t |
|
NT |
13.823 t Suez: 27.395,18 t Panama: 24.710 t |
|
Displacement |
55.967,5 t |
|
Length |
183,00 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,31 m |
|
Reg. dimensions L x B x D |
175,34 x 32,20 x 19,10 m |
|
Rule dimensions L x B x D |
174,00 x 32,20 x 19,10 m |
|
Freeboard |
Summer: 5.811 |
|
Depth |
19,10 m moulded |
|
Speed |
14,5 knots |
|
Built |
2015 |
|
Keel laid |
29/07/2014 |
|
Launch date |
14/10/2014 |
|
Delivery date |
30/01/2015 |
|
Builder |
SPP Shipbuilding Co., Ltd. 537, Haeansaneop-Ro Sanam-Myeon, Sacheon-Si, Gyeongsangnam-Donam Do, 664-942 South Korea |
|
Yard number |
S1154 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50ME-B9.2 - 2 stroke single acting 6 cylinder 500 x 2.214 mm combustion engine Mcr 7.240 kW at 99,0 rpm Build: 03/09/2014 Manufacturer: HD Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1 Manufacturer: HHI Engine & Machinery Div. |
|
Boilers |
1x Fired boiler - 8,83 MPa Heating Surface: 216,0 m² 1x Fired exhaust gas boiler - 8,93 MPa Heating Surface: 262,9 m² Build: 29/08/2014 Manufacturer: Kangrim Heavy Industries Co., Ltd., Changwon - South Korea |
|
Generators |
3x Main diesel generatorsets each 900 kW Manufacturer: HHI Electro Electric System |
|
Cargo tank capacity |
54.010,10 m³ |
|
Tank capacities |
Fuel oil: 1.258,80 m³ Diesel oil: 296,30 m³ Ballast: 23.142,80 m³ Hydraulic oil: 19,80 m³ Lub oil: 101,20 m³ Fresh water: 334,30 m³ |
|
Lifting equipment |
1x Engine room crane - SWL 4,5 t 1x Hose handling crane - SWL 10,0 t 1x Provision crane - SWL 4,5 t Manufacturer: Dongnam Marine Crane Co., Ltd. |
|
Crew |
28 |
|
Commercial manager |
Sinokor Petrochemical Co., Ltd. Seoul South Korea |
|
ISM manager |
Thome Ship Management Pte. Ltd. |
|
Registered owner |
Tongli International Ship Lease Co., Limited Seoul South Korea |
|
Latest data adjustment |
09 September 2024 |
