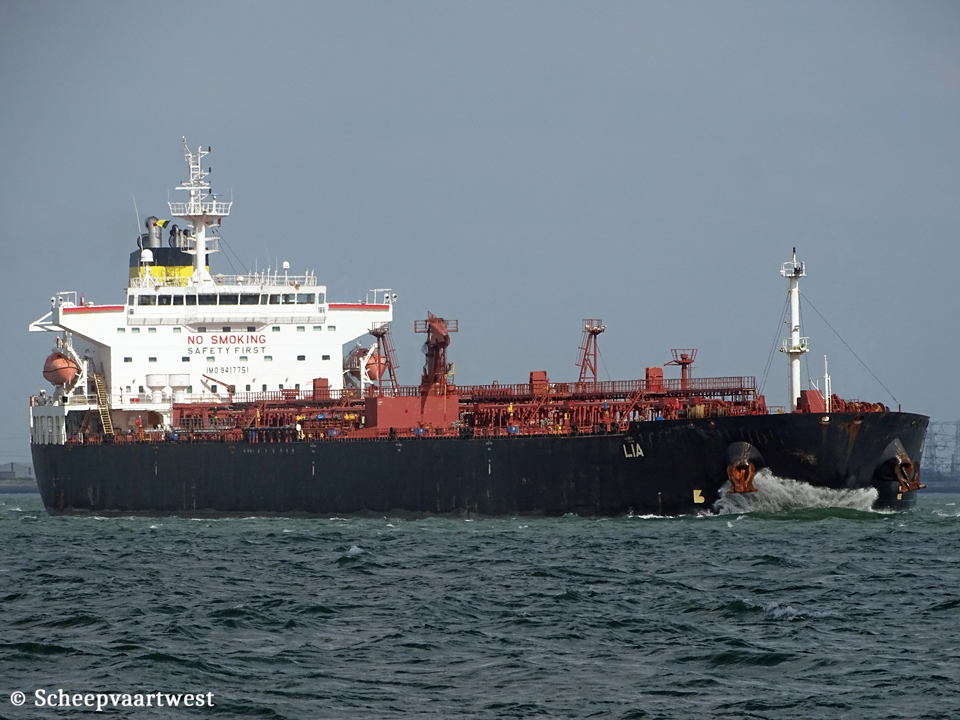

Lia IMO 9417751 01
Westerschelde 08 June 2017

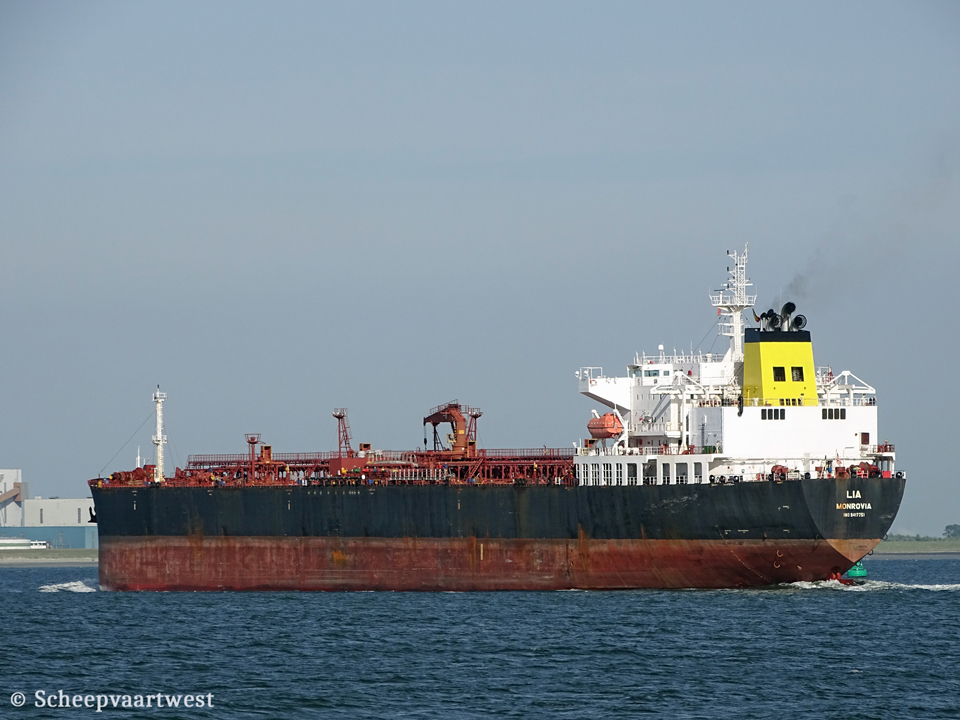

Lia IMO 9417751 02
Westerschelde 04/06/17






Name

LIA

Type

Crude oil tanker

IMO-number

9417751

Call sign

A8PL6

Flag

Liberia

Port of registry

Monrovia

GT

42.010 t

Suez: 44.158,23 t

DWT

73.723 t

NT

22.259 t

Suez: 39.780,15 t

Panama: 34.705 t

Displacement

89.187 t

Length

228,60 m overall

219,70 m between perpendiculars

Breadth

32,26 m moulded

Draught

Summer: 14,48 m

Freeboard

6.335 mm

Depth

20,80 m moulded

Speed

Max: 14,6 knots

Build

2008

Keel laid

18/10/2007

Launch date

03/09/2008

Delivery date

03/12/2008

Builder

New Times Shipbuilding Co., Ltd.

Dan Hua Gang Port, Jingjiang, 214518

China

Yard number

0307347

Hull material

Steel

Hull type

Double hull

Main engine

1x Hudong/MAN-B&W 5S60MCC - 5 cylinder 600 x 2.400 mm combustion engine Mcr 11.300 kW at 105,0 rpm

Manufacturer: Hudong Heavy Machinery Co., Ltd.

Propellers

1

Boilers

2x Auxiliary fired boiler Mission TM OL 20 T/H - 18,0 MPa

1x Composite boiler MISSION OC - 10,0 MPa

Generators

3x Main diesel generatorsets each 900 kW

Manufacturer: Taiyo Electric Co,.Ltd.

Cargo tank capacity

86.250,91 m³

Tank capacities

Fuel oil: 2.153,89 m³

Lub oil: 142,13 m³

Fresh water: 696,14 m³

Ballast: 27.226,86 m³

Diesel oil: 287,60 m³

Lifting equipment

1x Engine room overhead crane - SWL 4,5 t

1x Hose handling crane - SWL 15,0 t

1x Provision crane - SWL 5,0 t

Manager

Marwave Shipmanagement

Wamberg 35

1083 CW Amsterdam

The Netherlands

Registered owner

Pintail BV

Monrovia

Liberia

Latest data adjustment

24 October 2024
