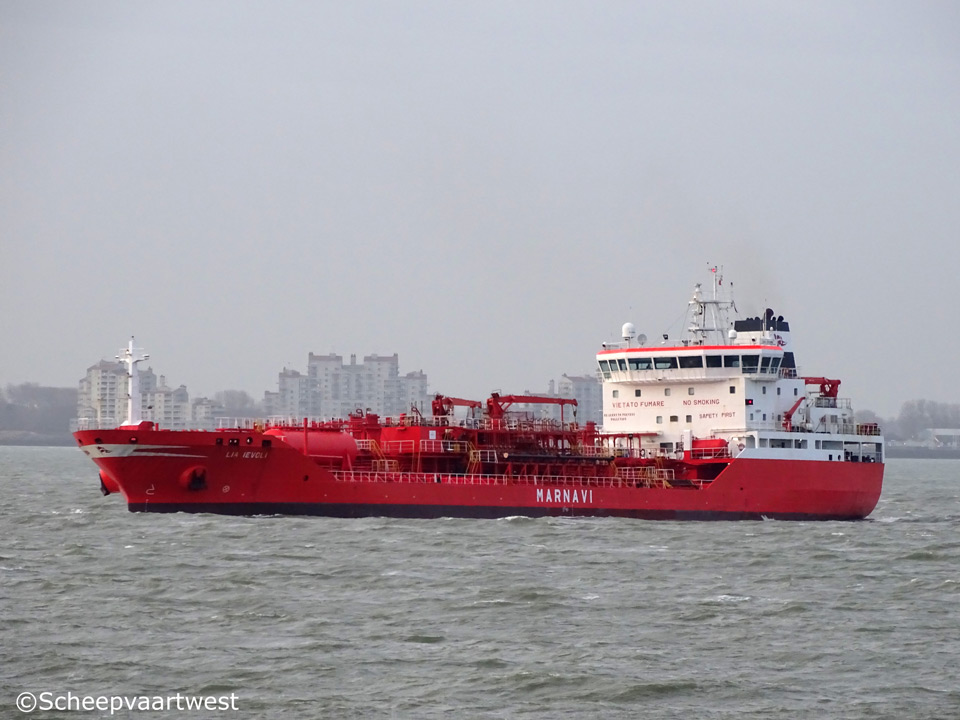

Lia Ievoli 02
Westerschelde 12 January 2017

Lia Ievoli 01
Vlissingen 27/12/11


Name

LIA IEVOLI

Type

Oil and chemical carrier

IMO-number

9148582

Call sign

IBDX

Flag

Italy

Port of registry

Napoli

GT

6.695 t registered

DWT

Summer: 9.976 t

NT

3.112 t registered

Length

131,24 m overall

122,35 m between perpendiculars

Breadth

19,21 m moulded

Draught

Summer: 7,56 m

Depth

9,63 m moulded

Speed

14,5 knots

Built

1999

Keel laid

20.08.1996

Date of completion

19.01.1999

Builder

Cantiere Navale Mario Morini S.P.A.
Ancona
Italy

Yard number

259

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Bulkheads

Non tight: 2

Oil tight: 15

Main engine

1x Stork-Wärtsilä 8L38 - 4 stroke 8 cylinder 380 x 475 mm diesel engine - 5.356 kW / 7.180 hp at 600 rpm

Manufacturer Name: Wärtsilä NSD Nederland B.V.

Propeller

1x C.P.P. - 4 Blades

Shaft generator

1x 1.250 kW

Manufacturer name: Marelli Motori

Generators

3x Diesel generatorsets each 725 kW

Bow thruster

1x Electrical C.P.P. - 552 kW

Number of cargo tanks

22 + 2 Deck tanks

Segregations

24

Cargo capacity

11.082 m³ / 10.417,08 t included deck tanks

Cargo pumps

22x Framo deepwell each 200 m³/h
2x Framo 100 deepwell each 100 m³/h

Number of tanks

Ballast: 11

Fuel oil: 9

Fresh water: 6

Sludge: 3

Diesel oil: 3

Hydraulic oil: 2

Lubricating oil: 2

Waste water: 2

Thermal oil: 2

Chain: 1

Potable water:1

Tank capacities

Fresh water: 115 m³

Fuel oil: 642 m³ / 603,48 t

Tank ballast: 3.914 m³

Lifting equipment

2x Cranes - SWL 5,0 t each

1x Crane - SWL 2,0 t

Manager

Marnavi Spa
Napoli
Italy

Operator

Marnavi Spa
Via S. Brigida, 39
Napoli, 80133
Italy

Registered owner

Marnavi Spa
