| Westerschelde 22 June 2017 |
 |
|
| Westerschelde 22/06/17 | |
|
Name |

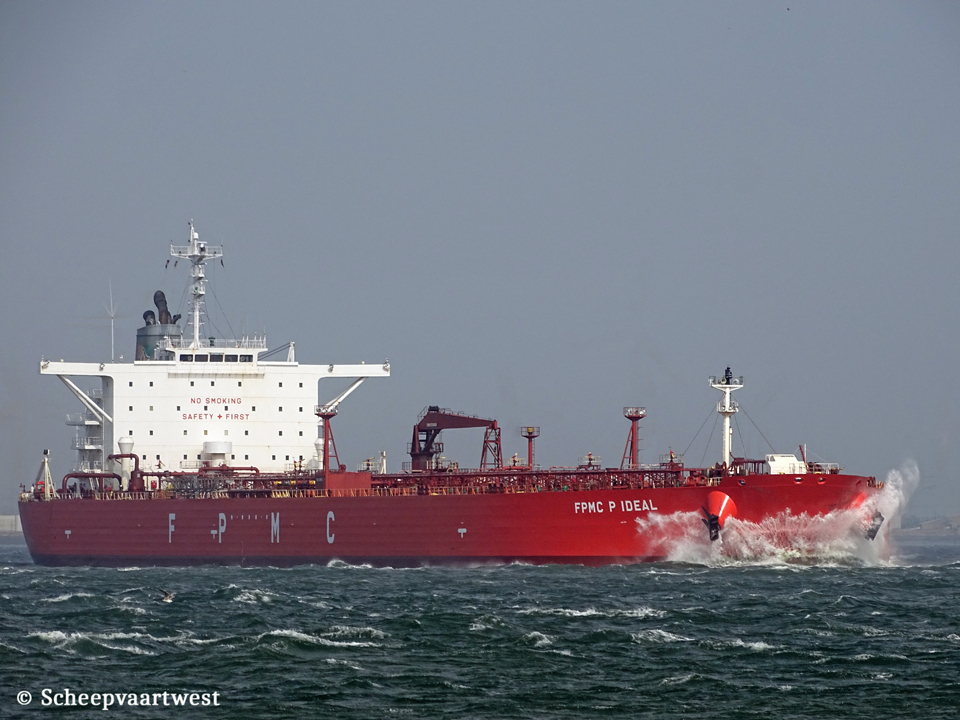

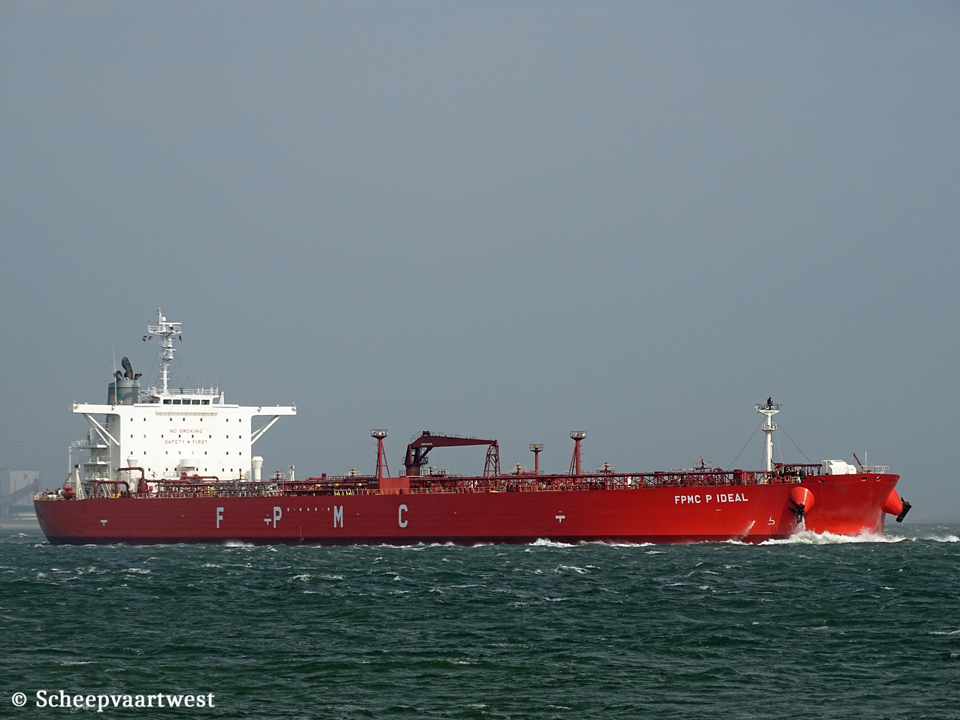

FPMC P IDEAL |
|
Type |
Crude oil and oil product carrier - Aframax |
|
IMO-number |
9459709 |
|
Call sign |
D5AW2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
59.174 Suez: 61.453,83 |
|
DWT |
99.993 t |
|
NT |
33.996 Suez: 56.246,24 |
|
Displacement |
117.888 t |
|
Light ship |
17.895 t |
|
Length |
243,80 m overall 234,00 m between perpendiculars |
|
Breadth |
42,00 m moulded |
|
Draught |
Summer: 14,12 m |
|
Keel to mast end |
54,52 m |
|
Freeboard |
7.379 mm |
|
Depth |
21,50 m moulded |
|
Speed |
14,0 knots 15,0 knots ballast |
|
Build |
2012 |
|
Keel laid |
16/12/2010 |
|
Launch date |
20/08/2011 |
|
Delivery date |
27/03/2012 |
|
Builder |
Sasebo Heavy Industries Co. Ltd. Tategami-Cho 1 Sasebo City, 857-8501 Japan |
|
Yard number |
774 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Mitsui/MAN B&W 6S60MC-C (Mark VII) - 6S60MC-C - 6 cylinder 600 x 2.400 mm combustion engine Mcr 11.700 kW at 95,0 rpm Ncr 10.530 kW at 91,7 rpm Manufacturer: Mitsui Engr. & Shipbuilding Co. Ltd. |
|
Propellers |
1x Fixed pitch propeller 4 blades - Diameter: 7,600 mm Manufacturer: Mitsubishi Heavy Industries Ltd. |
|
Boilers |
2x Fired boiler Mission OM - 17,7 MPa Manufacturer: Alfa Laval Aalborg A/S 1xUnfired exhaust gas boiler EHA-213-S - 22,6 MPa Manufacturer: Sasebo Heavy Industries Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 700 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Cargo tank capacity |
100%: 125.815 m³ 98%: 119.528 m³ |
|
Slop tank capacity |
98%: 3.519 m³ |
|
Manifolds |
Bow to centre manifold (BCM): 119,92 m Bridge front to centre manifold: 82,93 m Distance between cargo manifolds centres: 2,50 m Distance bridge to bow: 203,60 m Stern to centre manifold (SCM): 123,88 m Main deck to centre manifold: 1,85 m Distance manifold to shipside: 4,60 m |
|
Tank capacities |
Lub oil: 149,30 m³ Fresh water: 522,20 m³ Ballast: 38.738,20 m³ Diesel oil: 104,60 m³ Fuel oil: 2.829,50 m³ |
|
Lifting equipment |
1x Engine parts handling crane - SWL 4,0 t 1x Engine room crane - SWL 15,0 t Manufacturer: Kyoritsu Kikai Co., Ltd. 1x Engine room crane - SWL 4,0 t Manufacturer: Sekigahara Seisakusho Ltd. |
|
Crew size |
29 |
|
Manager |
Formosa Plastics Marine Corporation 201, Tung Hwa North Road Taipei,10508 Taiwan |
|
Registered owner |
FPMC Ideal Marine Corporation, Monrovia - Liberia 80 Broad Street Monrovia Liberia |
|
Latest data adjustment |
03 December 2024 |
