| Westerschelde 29 June 2017 |
|
Name |

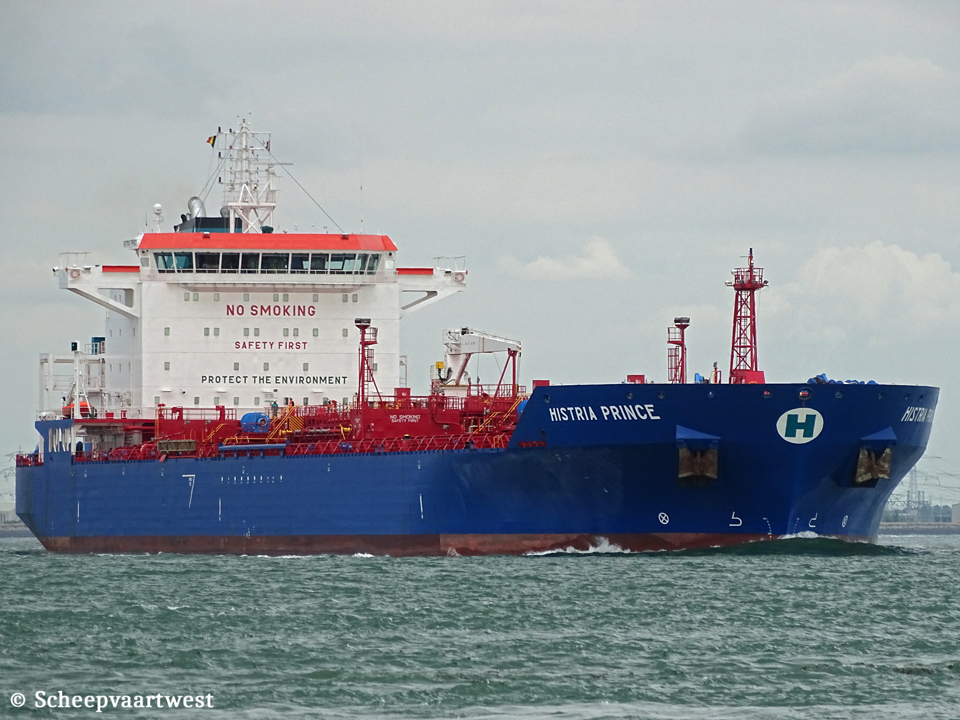

HISTRIA PRINCE |
|
Type |
Chemical & oil product tanker |
|
IMO-number |
9436666 |
|
Call sign |
V7QT2 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
25.864 Suez: 26.357 |
|
DWT |
Summer: 39.999 t Winter: 38.811 t |
|
NT |
11.369 Suez: 25.314 Panama: 21.516 |
|
Displacement |
Summer: 49.707,60 t Winter: 47.276,00 t |
|
Length |
179,96 m overall 172,00 m between perpendiculars |
|
Breadth |
32,27 m extreme |
|
Draught |
Summer: 10,92 m Winter: 10,69 m |
|
Keel to mast end |
44,00 m |
|
Air draft |
Summer deadweight: 33,07 m Normal ballast: 36,80 m Lightship: 41,40 m |
|
Freeboard |
Summer: 5.592 mm Winter: 5.820 mm |
|
Depth |
16,50 m moulded |
|
Speed |
Ballast: Max: 15,0 knots - Economic: 12,5 knots Laden: Max: 14,0 knots - Economic: 12,0 knots |
|
Build |
2008 |
|
Keel laid |
05/10/2007 |
|
Launch date |
16/11/2008 |
|
Date of completion |
23/12/2008 |
|
Builder |
Santierul Naval Constanta S.A. Constantza Romania |
|
Yard number |
579 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S50MC-C - 2 stroke single acting 6 cylinder combustion engine 9.480 kW / 12.710 hp at 127,0 rpm |
|
Propellers |
1x Fixed propeller - aft at 127,0 rpm 4 Blades |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, composite - 7,0 bar |
|
Generators |
3x MAN 6L23/30H main diesel generatorsets each 960 kW / 1.290 hp |
|
Emergency generator |
1x Sisu diesel 645 DSBAG diesel generatorset |
|
Bow thruster |
1x 1.155 bhp |
|
Number of tanks |
10x Cargo tanks 2 slop tanks |
|
Cargo tank capacity |
Seg#1: 7.106,6 m³ - 1W (98%) Seg#2: 9.866,0 m³ - 2W (98%) Seg#3: 10.110,8 m³ - 3W (98%) Seg#4: 10.109,8 m³ - 4W (98%) Seg#5: 9.627,2 m³ - 5W (98%) Total: 46.820,6 m³ |
|
Slop tank capacity |
Slop P: 395,9 m³ Slop S: 585,7 m³ Total: 981,6 m³ with double valve segregation |
|
Number of pumps |
|
|
Manifolds |
Distance bridge front to centre of manifold: 62,35 m Bow to centre manifold: 89,94 m Stern to centre manifold: 90,02 m Distance between cargo manifold centres: 2.000 mm Distance ships rail to manifold: 4.600 mm Distance manifold to ships side: 4.600 mm Top of rail to centre of manifold: 800 mm Distance main deck to centre of manifold: 1.900 mm Spill tank grating to centre of manifold: 900 mm |
|
Tank capacities |
Ballast: 17.806,5 m³ Fuel oil: 1.079,8 m³ Gas oil: 424,0 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 73 mm |
|
Lifting equipment |
1x Cranes - SWL 10,0 t |
|
ISM & commercial manager |
Histria Shipmanagement S.R.L Oborului Street 24 900162 Constanta Romania |
|
Registered owner |
Stilan Maritime Inc. Trust Company Complex Ajeltake Road, Ajeltake Island Majuro Marshall Islands, Mh96960 |
|
Latest data adjustment |
18 January 2025 |
