Westerschelde 03 June 2017 |
 |
| Westerschelde 03/06/17 |
|
Name |

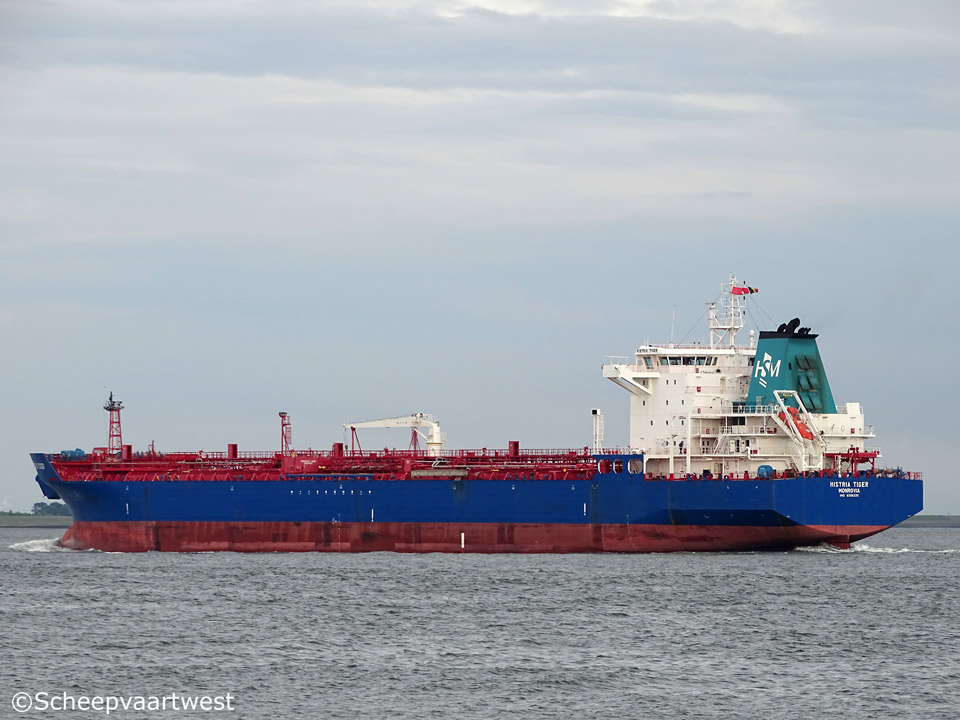

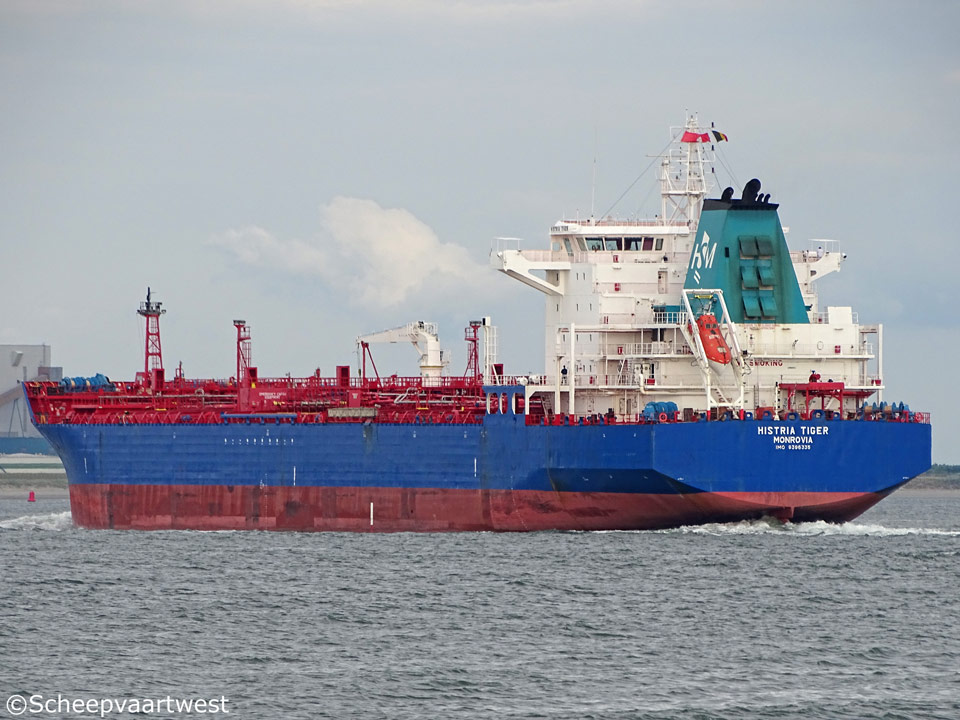

HISTRIA TIGER |
|
Type |
Chemical tanker - Oil tanker |
|
IMO-number |
9396335 |
|
Call sign |
A8PW3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
25.864 t |
|
DWT |
Summer: 40.416 t |
|
NT |
11.369 t |
|
Length |
179,96 m overall 172,00 m between perpendiculars |
|
Breadth |
32,30 m extreme 32,20 m moulded |
|
Draught |
11,00 m |
|
Depth |
16,50 m moulded |
|
Speed |
Service: 14,3 knots Max.: 20,4 knots |
|
Built |
2008 |
|
Keel laid |
01.03.2007 |
|
Launch date |
15.06.2008 |
|
Date of completion |
14.07.2008 |
|
Builder |
Santierul Naval Constanta S.A. Constanta |
|
Yard number |
577 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W/STX 6S50MC-C - 2 stroke 6 cylinder diesel engine 9.480 kW |
|
Propellers |
1x Fixed propeller |
|
Boilers |
Auxiliary boiler, oil/gas fired KLN/VIC-16/10 Auxiliary boiler, composite k/KD-1,8+1,2 / 7 bar |
|
Generators |
3x Wärtsilä 6 L20 main diesel generatorsets 910 kW each |
|
Emergency generator |
1x Sisu diesel 645 DSBAG diesel generatorset Manufacturer: Sandfirden Technics B.V. |
|
Bow thruster |
1x 840 kW |
|
Number of cargo tanks |
10 |
|
Cargo tank capacity 98% |
47.803 m³ |
|
Pumps |
10x Centrifugal Framo type capacity 500 m³/h each 2x Framo centrifugal pump 200 m³/h each 1x Framo centrifugal Pump 150 m³/h 1x Framo centrifugal pump 80 m³/h 1x Framo reciprocating pumps (stripping) 30 m³/h 2x Centrifugal Framo ballast pumps capacity 800 m³/h each |
|
Cargo Heating capacity |
66°C |
|
Tank capacities |
Ballast: 18.653,5 m³ |
|
Anchor equipment |
Length: 660,00 m Diameter: 73 mm |
|
Lifting equipment |
1x crane - SWL 10,0 t |
|
Crew |
24 |
|
Manager |
Histria Shipmanagement S.R.L. |
|
Registered owner |
Theo Services Inc. |
|
Latest data adjustment |
25 July 2017 |
