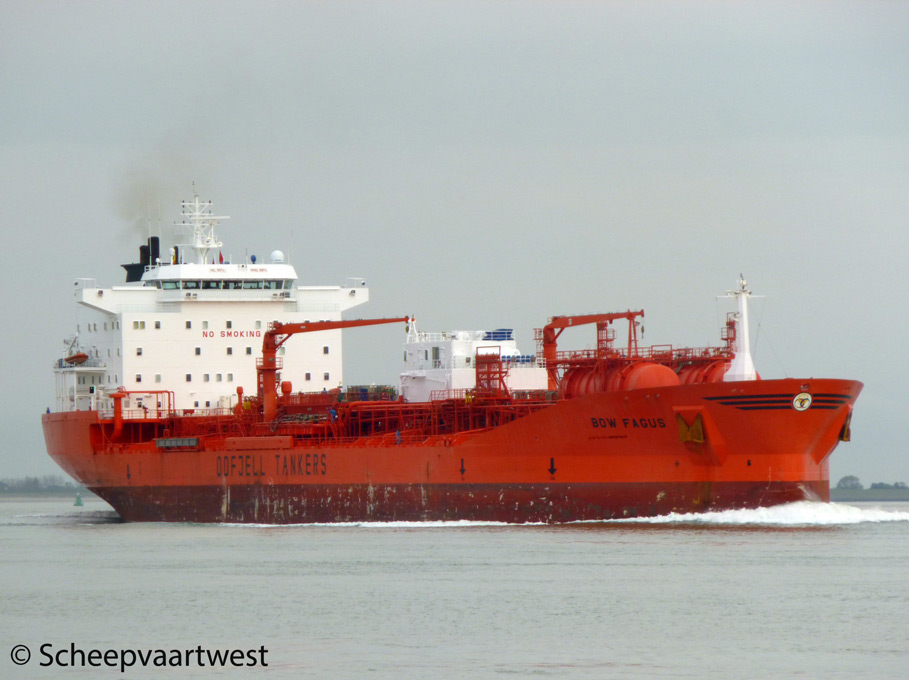

Bow Fagus 01
Westerschelde 20 October 2010


Name

BOW FAGUS

Type

Tanker for chemicals & Oil products

IMO-number

9047764

Call sign

LAUE4

Flag

Norway

Port of registry

Bergen

GT

23.197 t

Suez: 23.389 t

Panama: 23.481 t

DWT

Summer: 37.375 t

NT

12.176 t

Suez: 20.601 t

Panama: 19.326 t

Light ship

11.124 t

Length

183,10 m overall

176,90 m between perpendiculars

Breadth

32,25 m extreme

Draught

10,71 m

Keel to mast

43,36 m

Depth

14,00 m

Speed

14,3 knots

Built

1995

Keel laid

10.01.1995

Launch date

29.06.1995

Date of completion

01.11.1995

Builder

Kværner Florø AS
Ole Aaseruds vei 7
6900 Florø
Norway

Yard number

259

Hull material

Steel

Hull type

Double bottom

Double side with top wing

Main engine

1x MAN B&W 6L60MC diesel engine - 11.482 kW

Propellers

1x Controllable pitch

Boilers

2x Auxiliary boiler, vertical shell AQ9

1x Auxiliary boiler, exhaust gas water tube AV-6N

Builder: Aalborg

Generators

2x B&W 6L28/32H main diesel generatorsets

Emergency generator

1x Volvo TMD 12A diesel generatorset

Number of tanks

52

Cargo tank capacity 98%

Total centre tanks: 19.326 m³

Total wing tanks: 18.126 m³

Total: 40.775 m³

Number of segregations

52

Manifolds

Summer draft to manifold: 5,60 m

Rail to manifold: 4,50 m

Bow to manifold: 95,77 m

Ballast capacity

16.530,65 m³

Manager

Odfjell Management AS
Conrad Mohrs veg 29
5072 Bergen
Norway

Operator

Odfjell Tankers

Registered owner

Odfjell Chemical Tankers AS
Conrad Mohrs Vei 29
5892 Bergen
Norway

Previous owners

1995 - 2002 Odfjell Management AS
Conrad Mohrs Veg 29
5072 Bergen
Norway

Last update

04.02.2013
