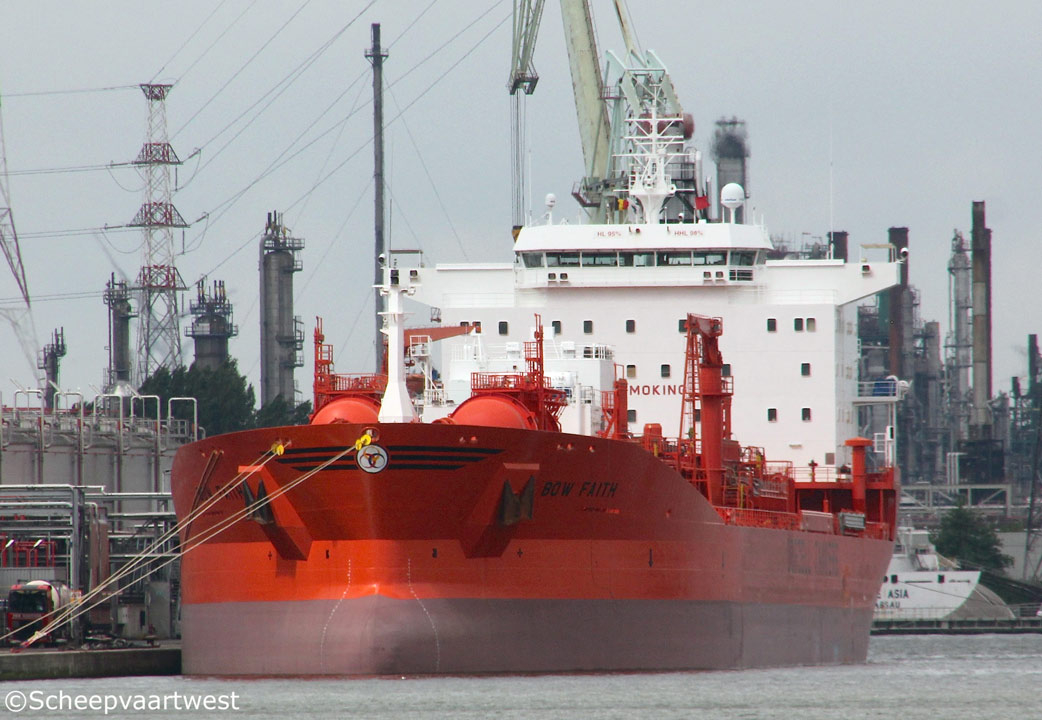

Bow Faith 01

Antwerpen 20 July 2017



Name

BOW FAITH

Type

Chemicals tanker

IMO-number

9114232

Call sign

LAZM4

Flag

Norway

Port of registry

Bergen

GT

23.196 t

Suez: 23.371 t

Panama: 23.481 t

DWT

Summer: 37.479 t

NT

12.176 t

Suez: 20.684 t

panama: 19.325 t

Light ship

11.020 t

Length

183,10 m overall

176,00 m between perpendiculars

Breadth

32,20 m extreme

Draught

Summer: 10,72 m

Keel to mast

43,36 m

Depth

14,00 m

Speed

14,3 knots

Built

1997

Keel laid

07.08.1996

Launch date

16.01.1997

Date of completion

17.04.1997

Builder

Kværner Florø AS
Florø
Norway

Yard number

134

Hull material

Steel

Hull type

Double bottom

Double side with top wing

Bulkheads

Transverse: 7

Main engine

1x MAN B&W 6L60MC - 6 cylinder diesel engine

Propellers

1x Controllable pitch propeller

Boilers

2x Auxiliary boiler, oil/gas fire AQ9

1x Auxiliary boiler, exhaust gas heated AV-6N

Manufacturer: Aalborg

Generators

2x MAW B&W 6L28/32H main diesel generatorsets

Emergency generator

1x Volvo TMD 122A diesel generatorset

Number of cargo tanks

52

Cargo tank capacity 98%

Total centre tanks: 22.049 m³

Total wing tanks: 18.126 m³

Grand total: 40.775 m³

Number Of Segregations

52

Manifolds

Bow to manifold: 95,77 m

Rail to manifold: 4,50 m

Tank capacities

Ballast: 15.438,1 m³

Technical manager

Odfjell Management AS, Singapore Branch Office

Registered owner

Odfjell Chemical Tankers AS
Bergen
Norway

Latest data adjustment

14 August 2017
