| Antwerpen 06 April 2010 |
|
| Antwerpen 06/04/10 |
|
Name |

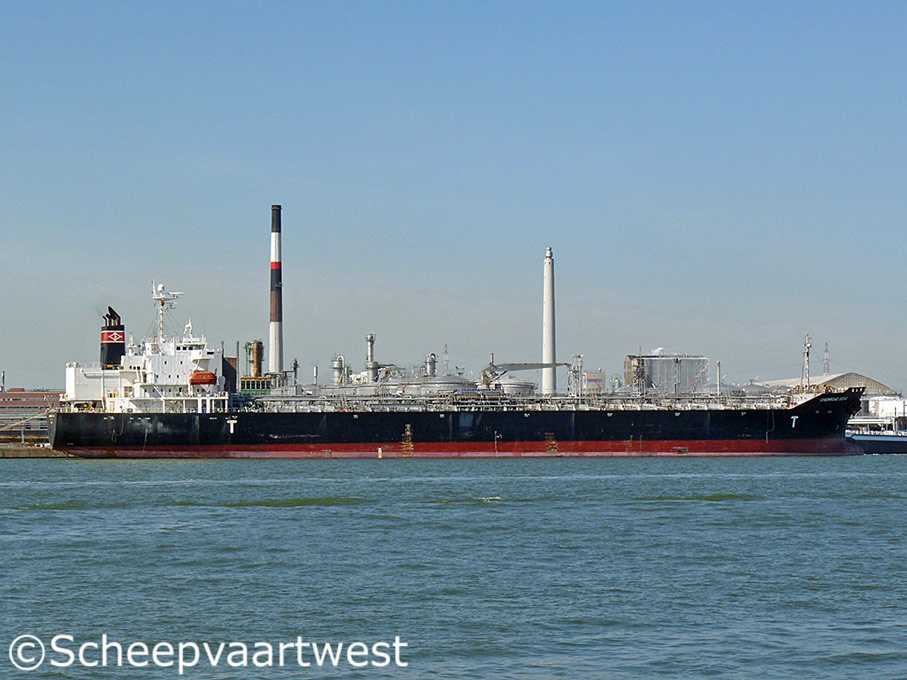

CHEMROAD ECHO |
|
Type |
Oil / molasses / chemical tanker |
|
IMO-number |
9284685 |
|
Call sign |
H8BD |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
20.117 t registered |
|
DWT |
33.944 t |
|
NT |
9.182 t registered |
|
Length |
174,38 m overall |
|
Breadth |
27,70 m moulded |
|
Draught |
11,023 m |
|
Moulded L x B x D |
167,00 x 27,70 x 16,00 m |
|
Registered L x B x D |
167.62 x 27,70 x 16,00 m |
|
Freeboard |
Summer: 5.014 mm |
|
Depth |
16,00 m moulded |
|
Speed |
Trial: 16,6 knots |
|
Built |
2004 |
|
Keel laid |
12.09.2003 |
|
Launch date |
06.01.2004 |
|
Date of completion |
27.04.2004 |
|
Builder |
Shin Kurushima Dockyard Co., Ltd. |
|
Yard number |
5248 |
|
Hull type |
Double hull |
|
Main engine |
1x Kobe Diesel - 2 stroke single acting 6 cylinder 520 x 1.850 mm diesel engine - 7.980 kW at 120,0 rpm Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works |
|
Propeller shaft |
Oil lubrication shaft without monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation: 21,10 t/h Manufacturer: Aalborg (Qingdao) Boiler Company Ltd. |
|
Generators |
4x Diesel generatorsets each 2.340 kVA |
|
Cargo Capacity |
Liquid: 37.386 m³ |
|
Tank capacities |
Fuel oil: 1.813 m³ Fresh water: 874 m³ Water ballast: 14.960 m³ |
|
Lifting equipment |
1x Crane - SWL 2,0 t 1x Crane - SWL 10,0 t |
|
Manager |
Iino Marine Service Co., Ltd. |
|
Registered owner |
Interasia Shipping (Panama) S.A. |
